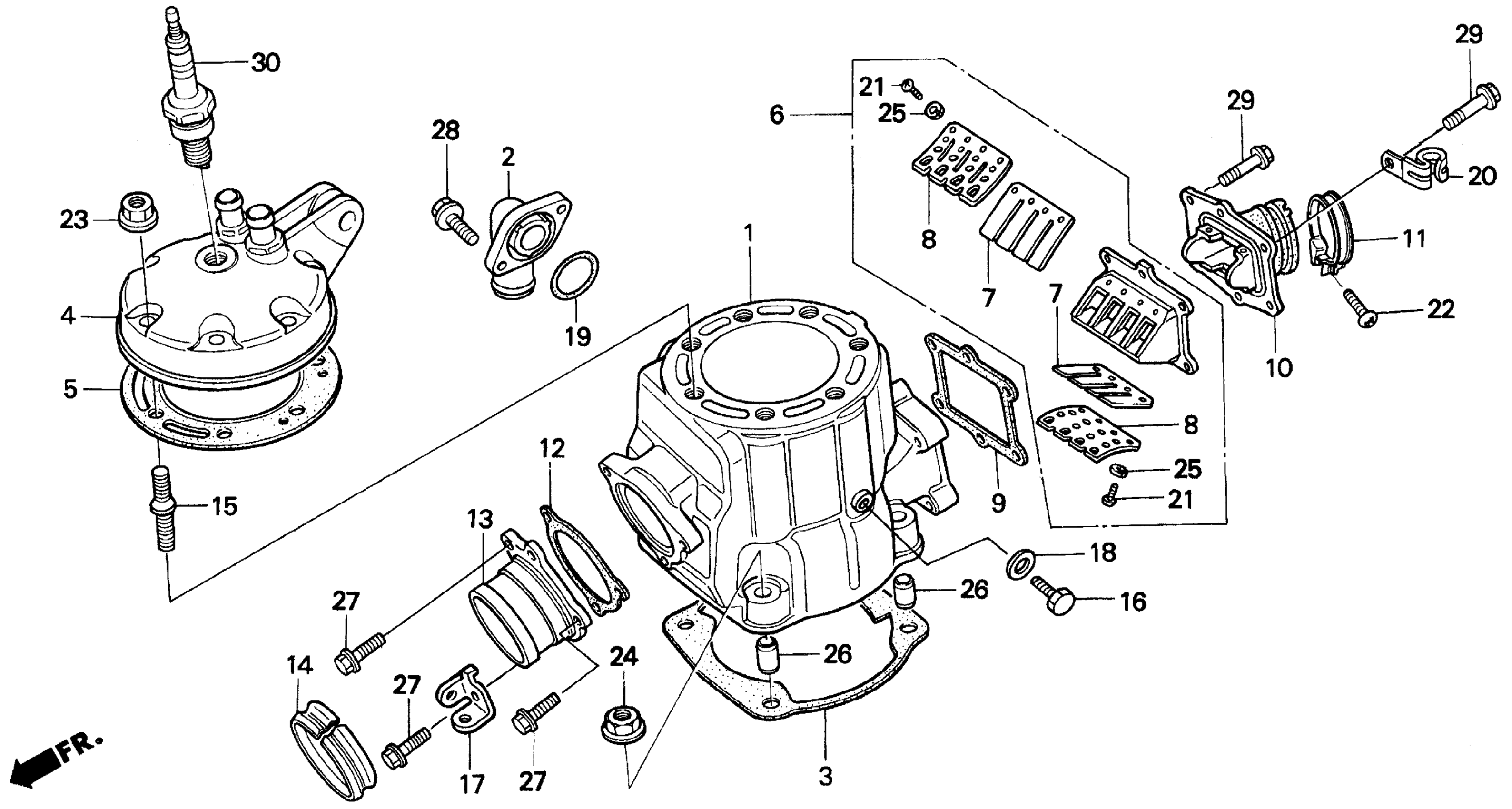

Honda CR500RA (93) MOTORCYCLE, JPN, VIN# JH2PE020-PM200005 TO JH2PE020-PM201026 CYLINDER Diagram

#

Description
Price

1

CYLINDER

12100-ML3-680

Unavailable

2

JOINT, WATER HOSE

12103-ML3-680

Unavailable

3

GASKET, CYLINDER This part replaces 12191-ML3-790.

12191-MAC-680

$14.82

3

GASKET, CYLINDER

12191-MAC-680

$14.82

4

CYLINDER HEAD

12200-ML3-760

$144.41

5

GASKET, CYLINDER HEAD

12254-ML3-680

$37.24

6

VALVE ASSY., REED

14100-ML3-681

Unavailable

9

GASKET A, REED VALVE

14132-ML3-790

Unavailable

10

INSULATOR, CARBURETOR

16221-ML3-681

$81.69

11

BAND, INSULATOR

16223-KA5-690

$17.05

12

GASKET, EX. FLANGE

18291-ML3-791

$9.82

13

JOINT, EX. PIPE

18352-KA5-691

Unavailable

14

SEAL, EX. MANIFOLD

18359-KA5-690

$11.67

15

BOLT, STUD (SPECIAL)

90032-KA5-690

$4.17

16

BOLT, OIL CHECK

90037-360-000

$3.26

17

PLATE, SPRING HANGER

90445-ML3-681

$7.20

18

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

19

O-RING (22.1X3.5)

91356-GC4-731

$4.45

20

CLIP, WIRE HARNESS

91406-657-671

$9.42

22

SCREW, PAN (5X25)

93500-05025-0A

$1.49

23

NUT, FLANGE (8MM)

94050-08000

$1.49

24

NUT, FLANGE (10MM)

94050-10000

$1.59

26

PIN A, DOWEL (12X20)

94301-12200

$2.29

27

BOLT, FLANGE (6X18)

96001-06018-07

$1.49

28

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

29

BOLT, FLANGE (6X22)

96300-06022-00

$1.49

30

SPARK PLUG (W24ESR-V) (DENSO)

98079-58659

$2.54

30

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58649.

98079-58679

$5.80

30

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58649-00.

98079-58679

$5.80

30

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58669.

98079-58679

$5.80

30

SPARK PLUG (BR8EG) (NGK)

98079-58679

$5.80
