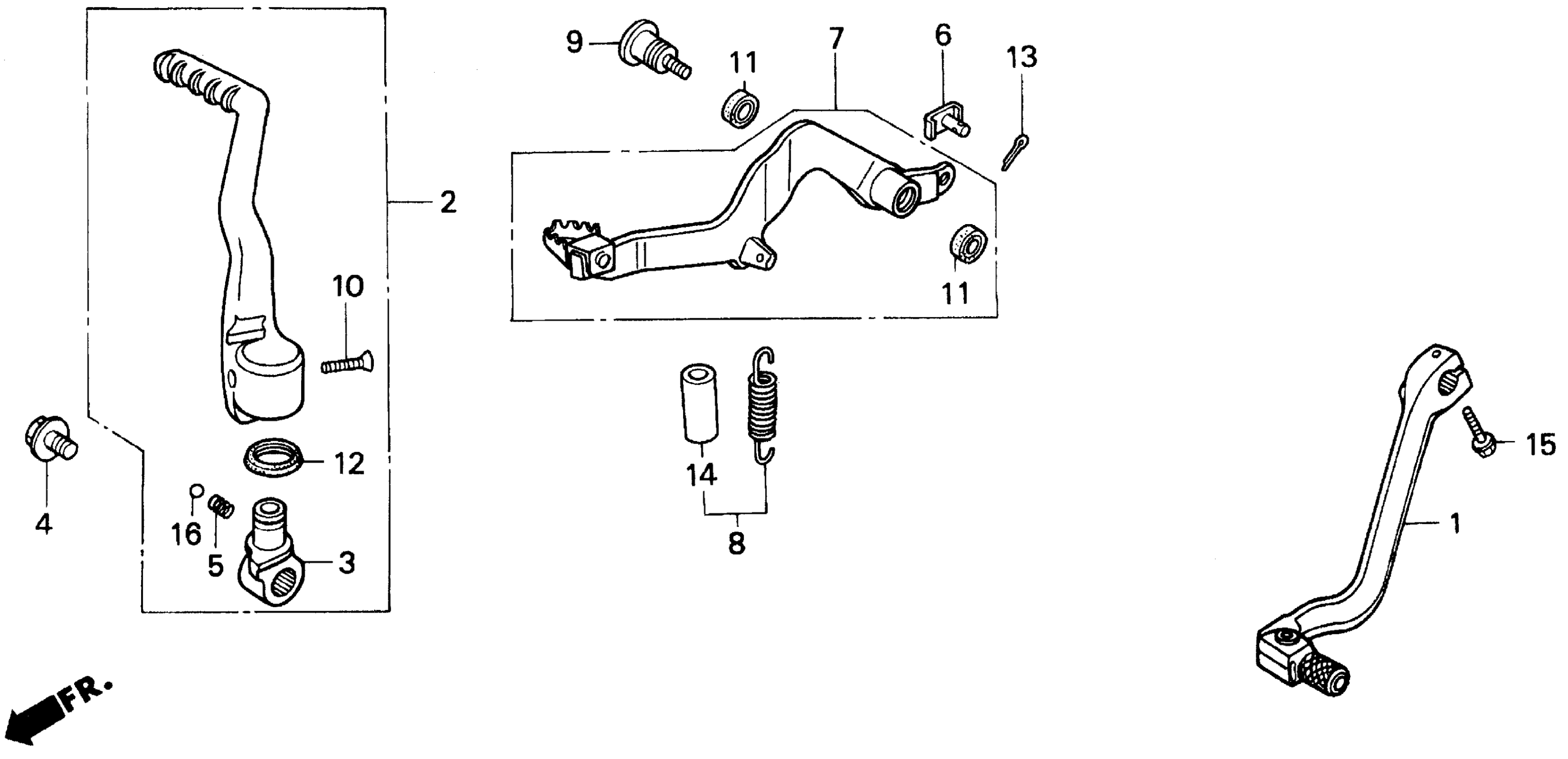

Honda CR500RA (92) MOTORCYCLE, JPN, VIN# JH2PE020-NM100006 TO JH2PE020-MM101487 PEDAL Diagram

PEDAL, GEARSHIFT This part replaces 24700-KS7-831.

24700-ML3-600

Unavailable

PEDAL, GEARSHIFT

24700-ML3-600

Unavailable

ARM ASSY., KICK STARTER This part replaces 28300-ML3-600.

28300-MAC-680

Unavailable

ARM ASSY., KICK STARTER

28300-MAC-680

Unavailable

ARM ASSY., KICK STARTER This part replaces 28300-ML3-760.

28300-MAC-680

Unavailable

JOINT, KICK ARM

28302-ML3-680

Unavailable

BOLT, KICK JOINT This part replaces 28306-KA3-830.

28306-KAE-000

$10.91

BOLT, KICK JOINT

28306-KAE-000

$10.91

SPRING, KICK STARTER STOPPER

28333-124-000

Unavailable

PIN D, JOINT This part replaces 46503-KW3-000.

95015-54000

$4.05

PIN D, JOINT

95015-54000

$4.05

PEDAL, RR. BRAKE

46510-ML3-910

$139.81

SPRING ASSY., BRAKE PEDAL

46512-ML3-910

$6.60

SHAFT, BRAKE PIVOT This part replaces 46513-KS7-700.

46513-MAC-680

$20.43

BOLT, KICK ARM This part replaces 90101-KA4-700.

90101-MAC-680

$5.65

BOLT, KICK ARM

90101-MAC-680

$5.65

DUST SEAL (15X20X2.5)

91251-444-000

$4.13

DUST, SEAL (19X25X4.1) (ARAI)

91303-KA3-732

$5.28

PIN, COTTER (2.0X12)

94201-20120

$1.04

BULK HOSE, VINYL (13X15X8000) (13X15X40)

95003-43008-10M

$72.38

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
