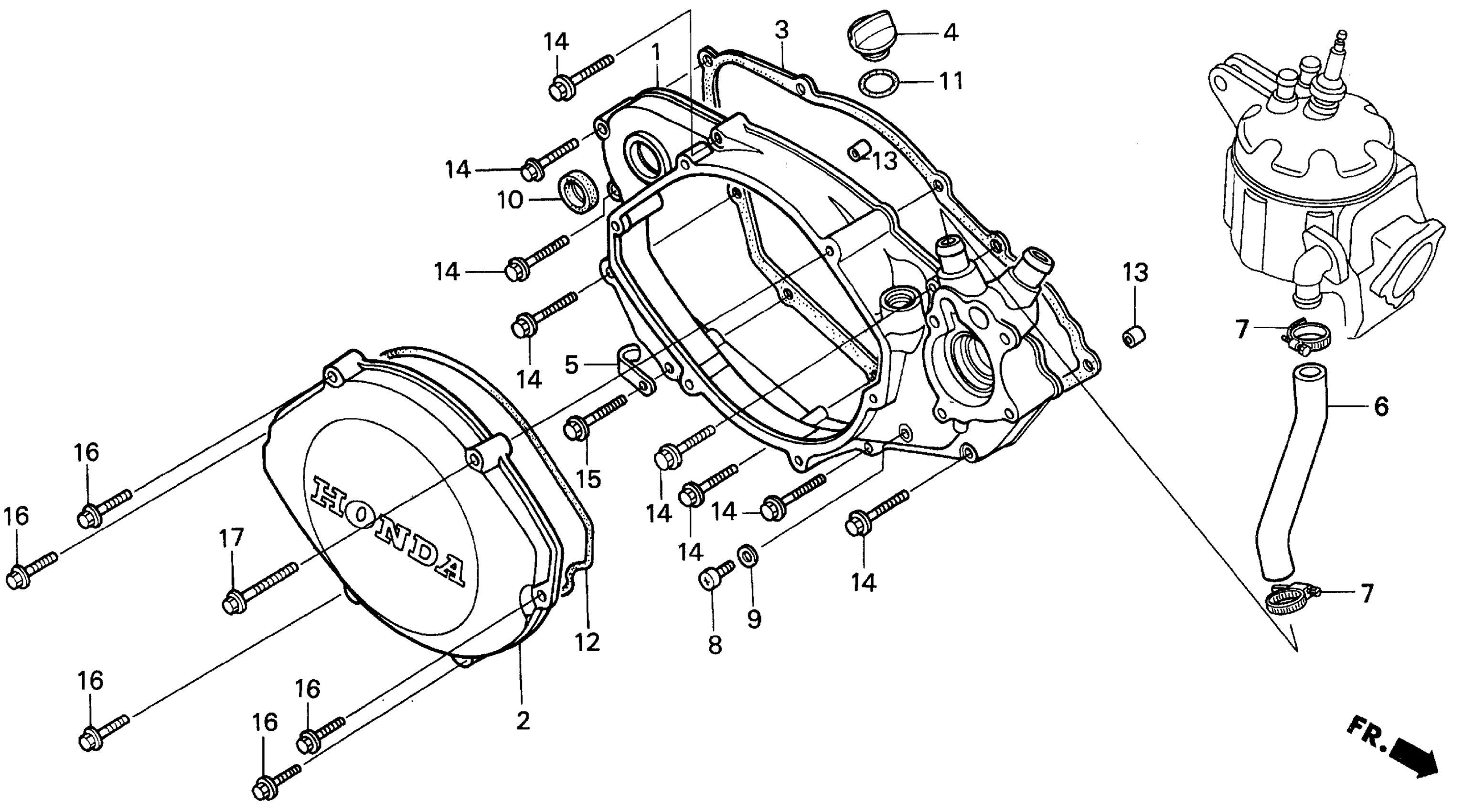

Honda CR500RA (91) MOTORCYCLE, JPN, VIN# JH2PE020-MM000006 TO JH2PE020-MM001974 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11340-ML3-910

Unavailable

COVER, CLUTCH

11342-KS7-701

Unavailable

GASKET, R. CRANKCASE COVER This part replaces 11395-ML3-000.

11395-MAC-680

$18.15

GASKET, R. CRANKCASE COVER This part replaces 11395-ML3-306.

11395-MAC-680

$18.15

GASKET, R. CRANKCASE COVER This part replaces 11395-ML3-790.

11395-MAC-680

$18.15

GASKET, R. CRANKCASE COVER

11395-MAC-680

$18.15

CAP, OIL FILLER

15611-KA4-710

$14.40

CLAMP, OVERFLOW PIPE

16236-045-010

$4.49

HOSE, WATER

19501-ML3-680

Unavailable

CLAMP, WATER HOSE

19505-ML3-770

$7.08

BOLT, OIL CHECK

90037-360-000

$3.26

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

OIL SEAL (20X28X5) This part replaces 91202-KA4-003.

91204-KF0-003

$6.54

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

O-RING (16MM)

91303-800-000

$2.23

O-RING, SPECIAL

91311-KS7-701

$9.54

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

BOLT, FLANGE (6X35)

96001-06035-07

$2.06

BOLT, FLANGE (6X40)

96001-06040-07

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

BOLT, FLANGE (6X70)

96001-06070-07

$2.15
