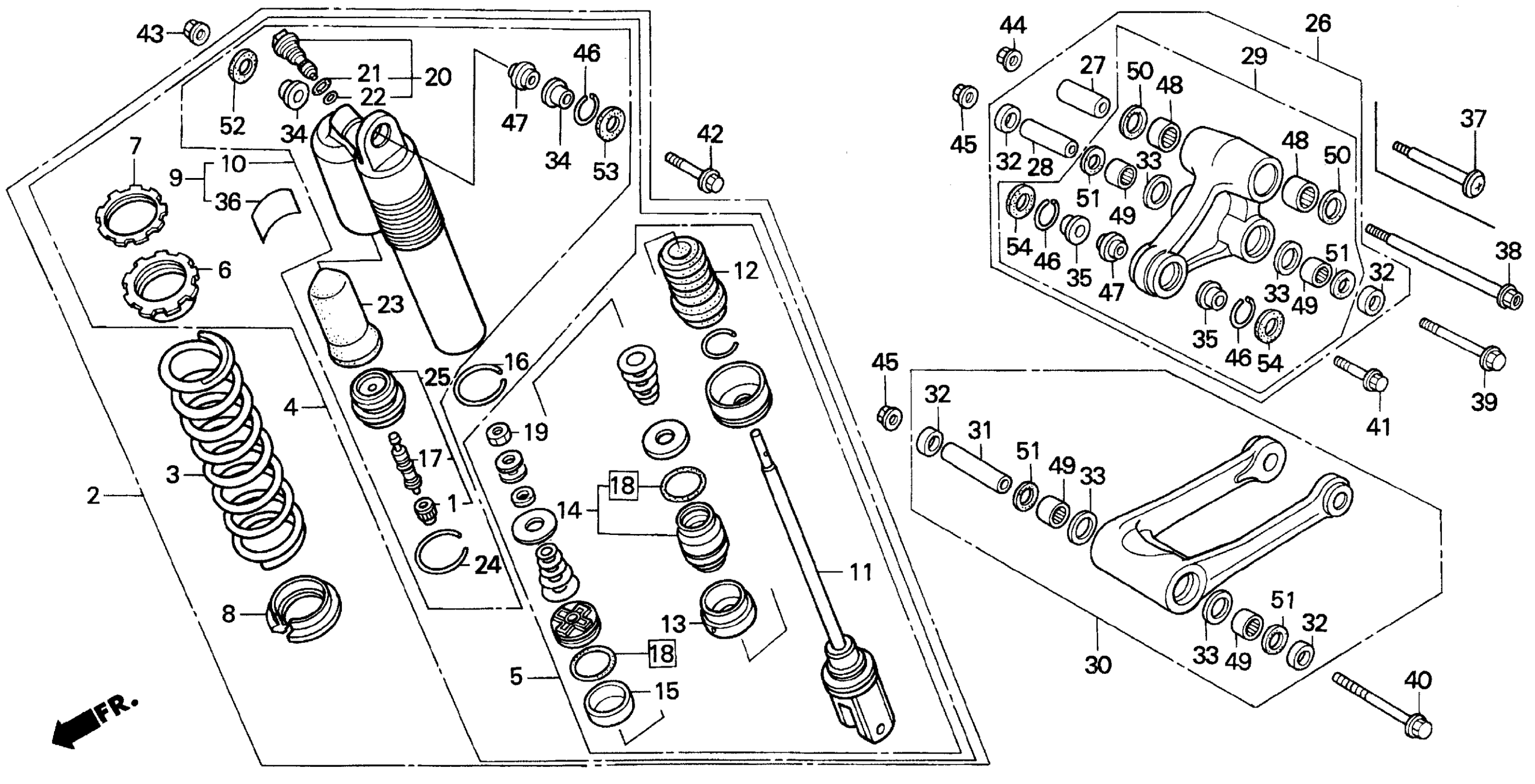

Honda CR500RA (91) MOTORCYCLE, JPN, VIN# JH2PE020-MM000006 TO JH2PE020-MM001974 REAR SHOCK ABSORBER 91-93 Diagram

#

Description
Price

1

CAP, AIR VALVE

51453-KK0-004

$4.46

2

SHOCK ABSORBER ASSY., RR. (KAYABA)

52400-ML3-761

Unavailable

3

SPRING, RR. SHOCK ABSORBER (5.6KG/MM) (KAYABA)

52401-ML3-761

Unavailable

3

SPRING, RR. SHOCK ABSORBER (5.2KG/MM) (KAYABA)

52403-KZ4-841

Unavailable

3

SPRING, RR. SHOCK ABSORBER (6.0KG/MM) (KAYABA)

52403-ML3-881

Unavailable

4

DAMPER, RR. (KAYABA) (NOT AVAILABLE)

52410-ML3-761

Unavailable

5

ROD, PISTON (KAYABA)

52421-ML3-761

Unavailable

6

SEAT, SPRING (UPPER) (KAYABA)

52422-KS6-701

Unavailable

7

NUT, ADJUSTER (KAYABA)

52423-KS6-701

Unavailable

8

SEAT, SPRING (KAYABA)

52424-KZ3-731

Unavailable

10

CASE ASSY., SUB (KAYABA)

52425-KZ4-405

Unavailable

10

CASE ASSY., SUB (KAYABA) This part replaces 52425-ML3-761.

52425-KZ4-405

Unavailable

11

ROD (KAYABA)

52426-ML3-761

Unavailable

12

RUBBER, BUMPER (KAYABA)

52427-KZ4-701

Unavailable

13

CAP, CASE (KAYABA)

52428-KS6-701

Unavailable

14

CASE, ROD GUIDE (KAYABA)

52429-KS6-831

$35.59

15

RING, PISTON (KAYABA)

52431-KS6-831

Unavailable

16

RING, SNAP (KAYABA) This part replaces 52435-KS6-701.

52435-ML3-791

Unavailable

16

RING, SNAP

52435-ML3-791

Unavailable

17

CORE, VALVE

52437-KA3-731

Unavailable

18

O-RING SET (KAYABA)

52437-KS6-305

Unavailable

19

NUT, HEX. (12MM)

52438-KA3-731

$3.10

20

ADJUSTER, DAMPING FORCE

52440-KZ3-731

Unavailable

21

O-RING (17.8X2.4) (KAYABA)

52447-KS6-701

$2.98

22

O-RING (17.5X1.5)

52448-KZ4-003

Unavailable

23

BLADDER (KAYABA)

52451-KZ4-003

$30.00

24

RING, SNAP (KAYABA)

52452-KZ4-003

Unavailable

25

CAP, BLADDER

52453-KZ4-003

Unavailable

26

ARM ASSY., SHOCK ABSORBER

52460-KZ3-730

Unavailable

27

COLLAR, CUSHION ARM PIVOT

52463-KZ3-730

Unavailable

28

COLLAR, CUSHION ARM

52464-KZ3-730

Unavailable

30

ROD ASSY., SHOCK CONNECTING

52470-KZ3-730

Unavailable

31

COLLAR, CONNECTING ROD

52473-KZ3-730

$13.72

32

COLLAR, CONNECTING ROD SIDE

52475-KZ3-730

Unavailable

33

WASHER, THRUST

52476-KZ3-730

Unavailable

34

COLLAR, SHOCK ABSORBER PIVOT

52486-KZ3-730

Unavailable

35

COLLAR, SHOCK ABSORBER PIVOT

52486-KZ3-730

Unavailable

36

LABEL, RR. DAMPER WARNING

87516-KZ4-671

Unavailable

37

BOLT, FLANGE (14X108)

90128-KZ4-010

Unavailable

39

BOLT, FLANGE (12X92)

90129-KZ4-010

Unavailable

40

BOLT, FLANGE (12X118.5)

90130-KZ3-700

Unavailable

41

BOLT, FLANGE (10X38)

90153-KS7-830

Unavailable

42

BOLT, FLANGE (10X58) This part replaces 90182-KA3-730.

90153-KK0-000

$7.27

43

NUT, AXLE (10MM)

90304-GA6-003

$2.89

44

NUT, FLANGE (12MM) This part replaces 90306-KA4-003.

90306-181-761

$6.08

44

NUT, FLANGE (12MM)

90306-181-761

$6.08

45

NUT, FLANGE (12MM) This part replaces 90306-KA4-003.

90306-181-761

$6.08

45

NUT, FLANGE (12MM)

90306-181-761

$6.08

46

RING, SNAP (26MM)

90613-PF4-300

Unavailable

47

BEARING, SPHERICAL (10) This part replaces 91074-KZ3-731.

91074-KZ4-901

Unavailable

47

BEARING, SPHERICAL (10)

91074-KZ4-901

Unavailable

48

BEARING, NEEDLE (22X28X16)

91078-KZ3-731

$32.95

49

BEARING, NEEDLE (20X26X20)

91079-KZ3-731

$25.67

50

DUST SEAL (22X28X5)

91254-KS7-831

$8.66

51

DUST SEAL (25X32X4)

91262-KZ3-731

$7.50

52

DUST SEAL, SHOCK (UPPER)

91351-GS2-701

$4.48

53

DUST SEAL, RR. CUSHION PIVOT This part replaces 91351-KZ3-730.

91351-KZ3-731

$4.87

53

DUST SEAL, SHOCK

91351-KZ3-731

$4.87

54

DUST SEAL, SHOCK

91351-KZ3-731

$4.87
