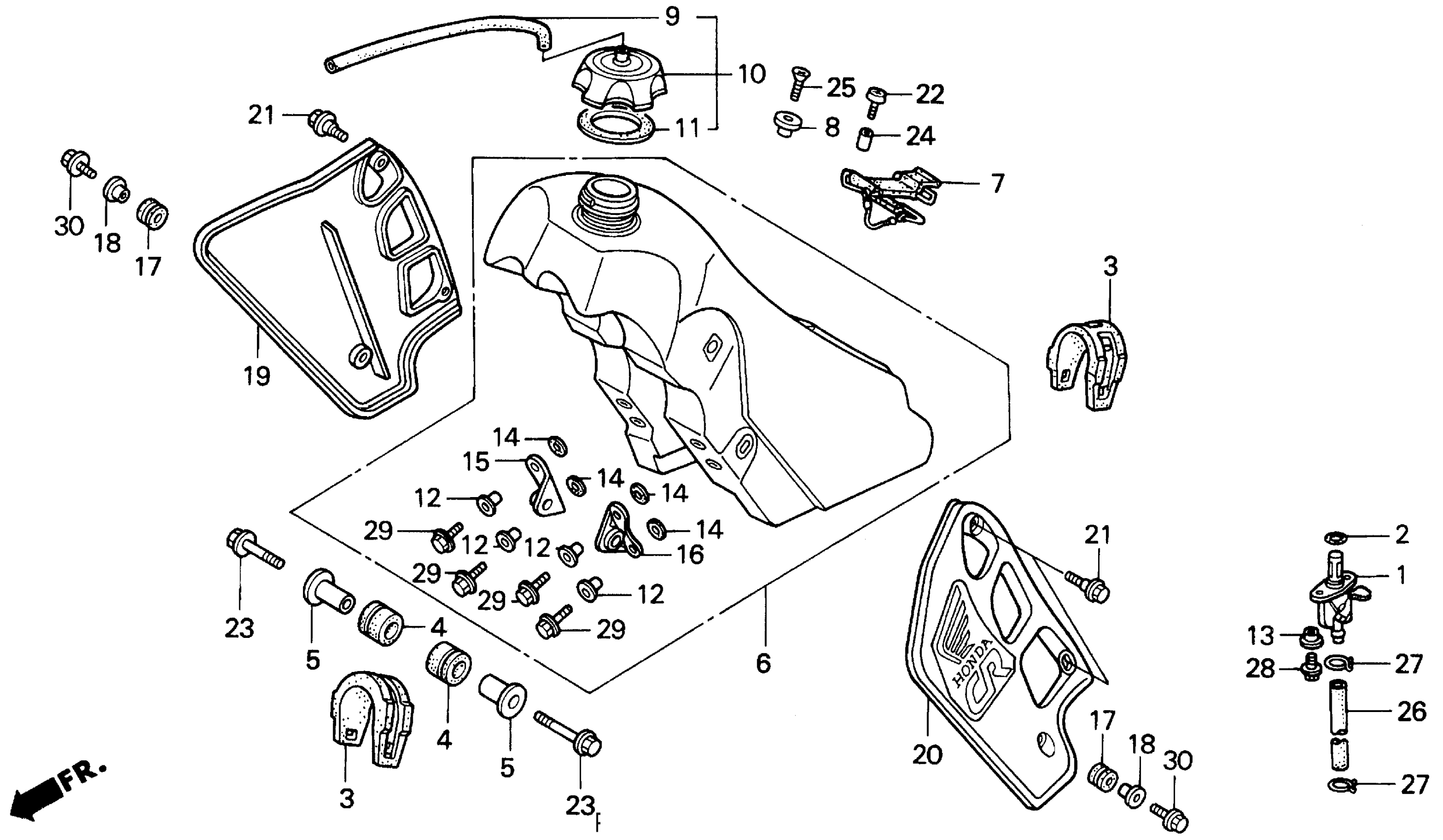

Honda CR500RA (91) MOTORCYCLE, JPN, VIN# JH2PE020-MM000006 TO JH2PE020-MM001974 FUEL TANK Diagram

PETCOCK ASSY.

16950-ML3-911

$51.08

O-RING (11.8X3.55)

16997-467-000

$2.11

RUBBER B, FUEL TANK SETTING

17506-ML3-680

$23.97

RUBBER, TANK MOUNTING This part replaces 17508-KS6-700.

17508-GBF-830

$5.90

COLLAR, TANK SETTING

17509-KS6-700

$9.13

TANK, FUEL *R119* (FLASH RED) (NOT AVAILABLE)

17510-ML3-681ZB

Unavailable

BAND, RR. TANK

17516-KS6-700

Unavailable

COLLAR, FR. SEAT

17518-KS6-700

$6.87

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

CAP ASSY., FUEL TANK

17620-ML3-840

Unavailable

GASKET, FUEL TANK CAP

17624-KA4-000

$5.94

COLLAR, FUEL TANK SETTING

17626-KA4-700

$6.71

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

RUBBER, FR. FUEL TANK

17627-467-000

$2.39

BRACKET, R. FR. FUEL TANK

17634-KS6-701

Unavailable

BRACKET, L. FR. FUEL TANK

17635-KS6-701

Unavailable

RUBBER, MUFFLER

18334-KA3-830

$3.89

COLLAR, MUFFLER SETTING

18336-KS6-700

$5.60

SHROUD SET, R. RADIATOR *NH196* (WL) (ROSS WHITE)

19071-ML3-760ZA

Unavailable

SHROUD SET, L. RADIATOR *NH196* (WL) (ROSS WHITE)

19072-ML3-760ZA

Unavailable

BOLT, SHROUD SETTING

90101-ML3-840

$4.24

SCREW, TRUSS (M6X16) This part replaces 90110-KA3-830.

90131-S0X-A00

$1.49

SCREW, TRUSS (M6X16)

90131-S0X-A00

$1.49

BOLT, FLANGE (6X40)

90137-KA3-830

$2.90

COLLAR (6.2X6)

90516-KA3-830

Unavailable

SCREW, FLAT (6X16) (YAMADA)

93600-06016-0A

$1.49

BULK HOSE, FUEL (7.5X8000) (7.3X130)

95001-75008-60M

$103.82

CLIP, TUBE (B12)

95002-02120

$2.00

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
