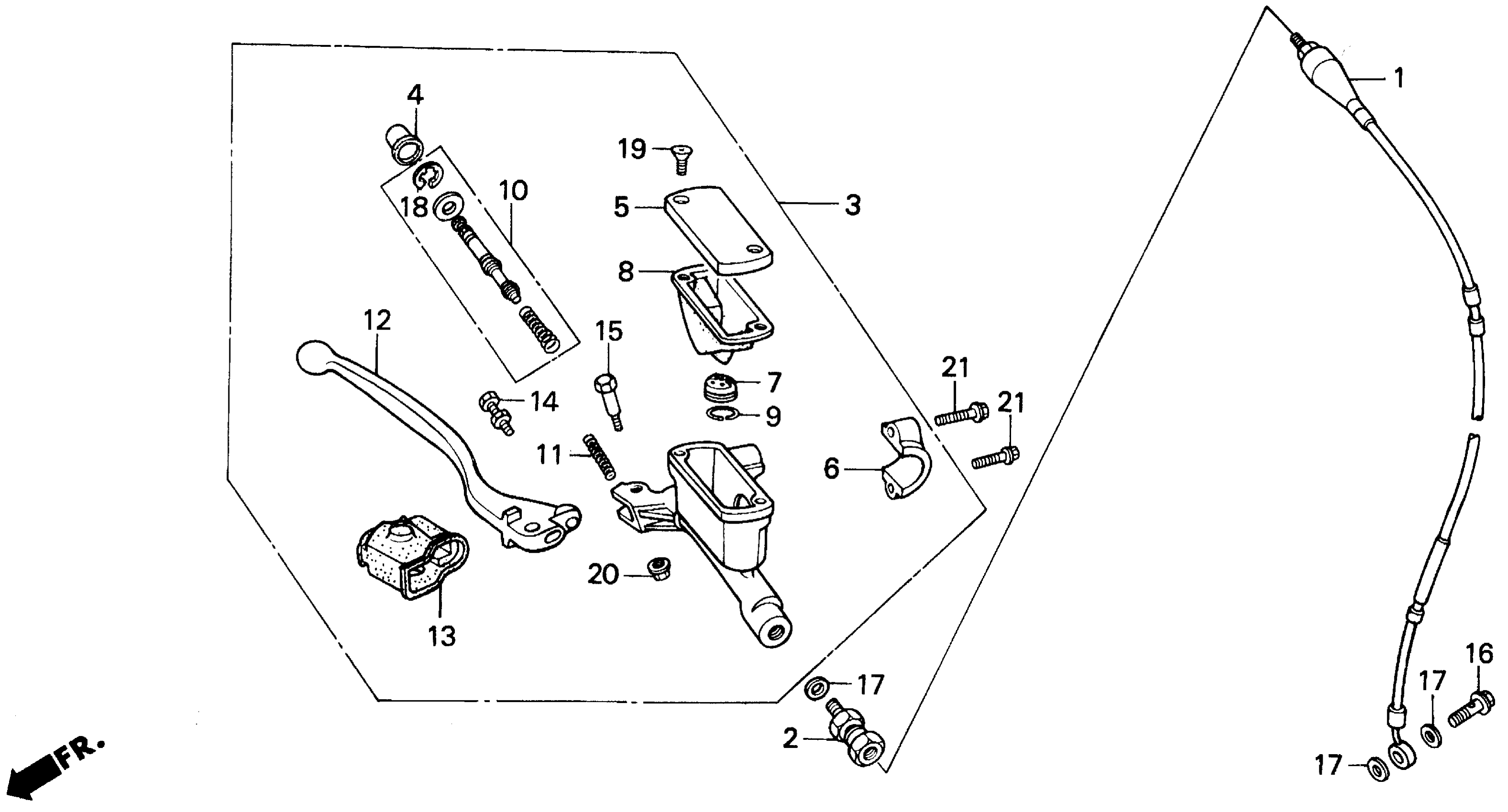

Honda CR500RA (91) MOTORCYCLE, JPN, VIN# JH2PE020-MM000006 TO JH2PE020-MM001974 FR. BRAKE MASTER CYL. 90-91 Diagram

HOSE, FR. BRAKE

45125-KZ3-003

Unavailable

JOINT, BRAKE HOSE

45127-KZ4-003

Unavailable

MASTER CYLINDER ASSY., FR. (NISSIN) (N/A: USE P/N 45510-KS6-405) (ALT. PNO: 45510-KS6-405)

45500-KS6-841

Unavailable

BOOT

45504-KN5-006

$11.31

CAP, MASTER CYLINDER This part replaces 45513-KA3-732.

45513-KCE-006

Unavailable

CAP, MASTER CYLINDER

45513-KCE-006

Unavailable

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

SEPARATOR

45518-KA3-731

$12.17

DIAPHRAGM

45520-KA3-731

$13.57

RING

45523-KA3-731

$2.92

PISTON SET, MASTER CYLINDER

45530-KN5-305

$57.08

SPRING, BRAKE LEVER

53174-KS6-831

Unavailable

LEVER, R. HANDLEBAR

53175-KS6-671

Unavailable

COVER, R. HANDLEBAR

53176-KS6-006

Unavailable

BOLT SET, ADJUSTER This part replaces 90111-KS6-000.

90111-ML3-791

$6.60

BOLT, HANDLEBAR PIVOT

90114-166-006

$6.51

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
