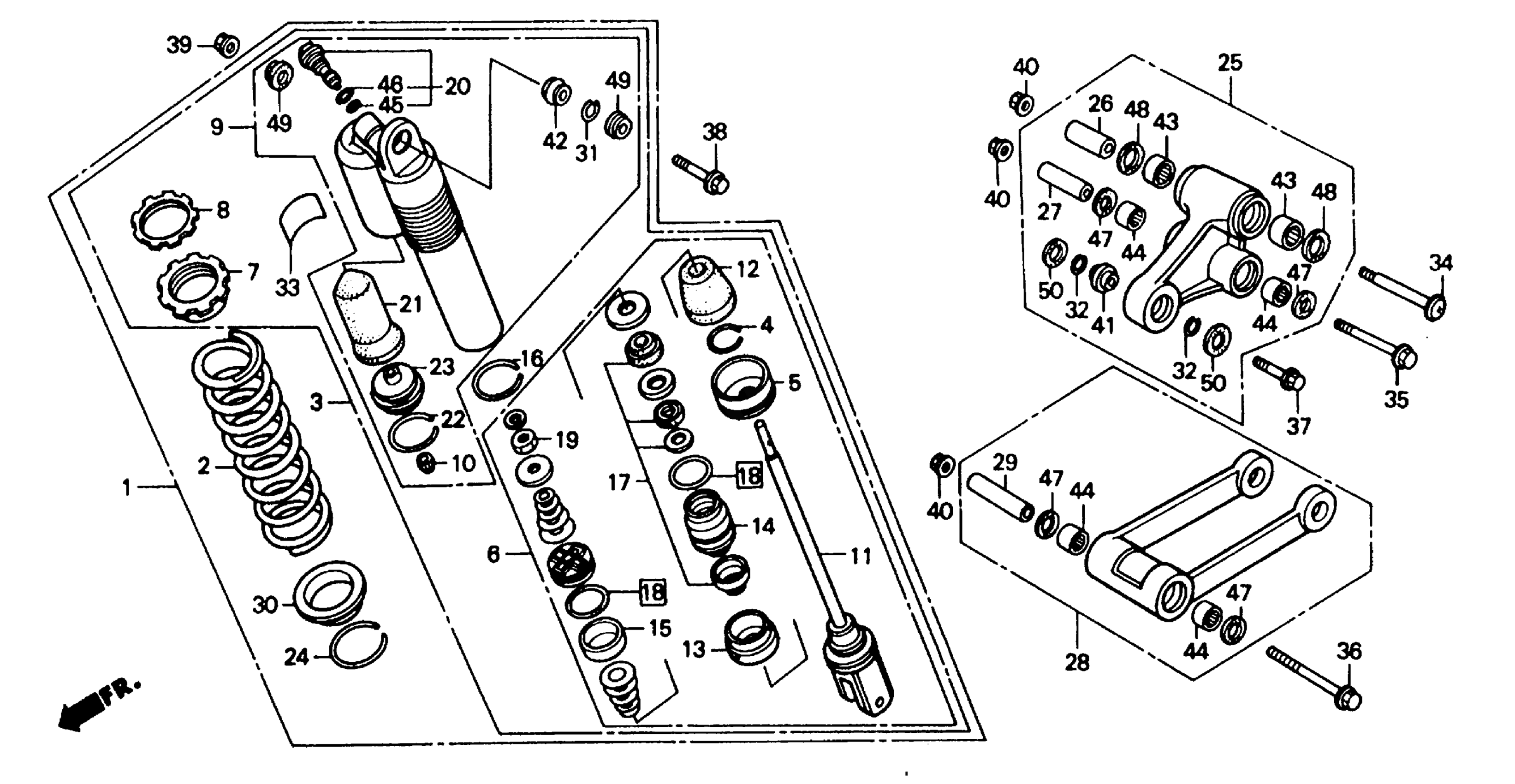

Honda CR500RA (89) MOTORCYCLE, JPN, VIN# JH2PE020-KM800001 SHOCK ABSORBER 89 Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (SHOWA)

52400-ML3-681

Unavailable

2

SPRING, RR. SHOCK ABSORBER (53N/MM,5.4KGF/MM) (SHOWA) | (Optional).

52401-KZ3-003

Unavailable

2

SPRING, RR. SHOCK ABSORBER (56.9N/MM,5.8KGF/MM) (SHOWA)

52401-ML3-681

Unavailable

2

SPRING, RR. SHOCK ABSORBER (60.8N/MM,6.2KGF/MM) (SHOWA) (NOT AVAILABLE) | (Optional).

52403-ML3-820

Unavailable

3

DAMPER, RR. (SHOWA)

52410-ML3-681

Unavailable

4

RING, STOPPER

52418-KZ3-003

Unavailable

5

STOPPER, SPRING SEAT

52419-KZ3-003

Unavailable

6

ROD, PISTON

52421-KZ3-671

Unavailable

7

ADJUSTER, SPRING

52422-KS7-701

$33.79

8

NUT, ADJUSTER

52423-KS7-701

$26.16

9

CASE, SHOCK ABSORBER (SHOWA)

52425-KZ3-003

Unavailable

10

CAP, AIR VALVE

52425-381-771

$5.05

11

ROD (SHOWA) (NOT AVAILABLE)

52426-KZ3-003

Unavailable

12

RUBBER, STOPPER

52427-KZ3-003

$16.93

13

PLATE, END (SHOWA)

52428-KA4-832

Unavailable

14

CASE, ROD GUIDE (SHOWA)

52429-ML3-841

Unavailable

15

RING, PISTON (SHOWA)

52431-KA4-831

$15.90

16

RING, STOPPER (SHOWA)

52435-KS7-831

Unavailable

17

OIL SEAL SET (SHOWA)

52436-ML3-305

Unavailable

18

O-RING SET (SHOWA)

52437-KA4-841

$9.52

19

NUT, HEX. (12MM)

52438-KA4-741

$2.92

20

BOLT, PLUG (NOT AVAILABLE)

52440-KZ3-003

Unavailable

21

BLADDER (SHOWA)

52451-KS7-831

$17.93

22

RING, STOPPER (SHOWA)

52452-KS7-831

$2.90

23

CAP, CHAMBER (SHOWA)

52453-KS7-831

Unavailable

24

RING, STOPPER (SHOWA)

52455-MM5-003

Unavailable

25

ARM ASSY., SHOCK ABSORBER This part replaces 52460-KZ4-000.

52460-KZ4-020

Unavailable

25

ARM ASSY., SHOCK ABSORBER

52460-KZ4-020

Unavailable

26

COLLAR, CUSHION ARM PIVOT

52463-KZ4-000

Unavailable

27

COLLAR, CUSHION ARM

52464-KZ4-000

Unavailable

28

ROD ASSY., SHOCK ABSORBER This part replaces 52470-KZ4-000.

52470-KZ4-020

Unavailable

28

ROD ASSY., SHOCK ABSORBER

52470-KZ4-020

Unavailable

29

COLLAR, CONNECTING ROD PIVOT

52473-KZ4-000

Unavailable

30

SEAT, SPRING

52486-KZ3-003

Unavailable

31

RING, STOPPER (SHOWA)

52487-KA4-831

$3.92

32

RING, STOPPER

52487-KN5-000

$3.26

33

LABEL, RR. DAMPER WARNING

87516-KZ3-671

Unavailable

34

BOLT, FLANGE (14X108) | Use up to Frame SN KM802696 This part replaces 90128-KZ4-000.

90128-KZ4-010

Unavailable

34

BOLT, FLANGE (14X108)

90128-KZ4-010

Unavailable

35

BOLT, FLANGE (12X92) | Use up to Frame SN KM802696 This part replaces 90129-KZ4-000.

90129-KZ4-010

Unavailable

35

BOLT, FLANGE (12X92)

90129-KZ4-010

Unavailable

36

BOLT, FLANGE (12X113) | Use up to Frame SN KM802696 This part replaces 90130-KZ4-000.

90130-KZ4-010

Unavailable

36

BOLT, FLANGE (12X113)

90130-KZ4-010

Unavailable

37

BOLT, FLANGE (10X38)

90153-KS7-830

Unavailable

38

BOLT, FLANGE (10X58) This part replaces 90182-KA3-730.

90153-KK0-000

$7.27

39

NUT, AXLE (10MM)

90304-GA6-003

$2.89

40

NUT, FLANGE (12MM) This part replaces 90306-KA4-003.

90306-181-761

$6.08

40

NUT, FLANGE (12MM)

90306-181-761

$6.08

41

BEARING, SPHERICAL (10)

91074-KS7-831

Unavailable

42

BEARING, SPHERICAL (10.1MM)

91077-KS7-013

$40.64

43

BEARING, NEEDLE (22X28X16) This part replaces 91078-KS7-834.

91078-KS7-836

Unavailable

43

BEARING, NEEDLE (22X28X16)

91078-KS7-836

Unavailable

44

BEARING, NEEDLE (20X26X20) This part replaces 91079-KS7-834.

91079-KZ3-731

$25.67

44

BEARING, NEEDLE (20X26X20)

91079-KZ3-731

$25.67

45

O-RING (15.5X1.5)

91256-GC5-003

$1.51

46

O-RING (21X1.9)

91257-KZ3-003

$2.75

47

DUST SEAL (20X28X5)

91261-KS7-832

Unavailable

48

DUST SEAL (22X30X5)

91262-KS7-831

Unavailable

49

DUST SEAL, RR. SHOCK (UPPER) (SHOWA)

91351-KS7-003

$5.12

50

DUST SEAL, SHOCK (LOWER)

91351-KS7-832

Unavailable
