Partiron

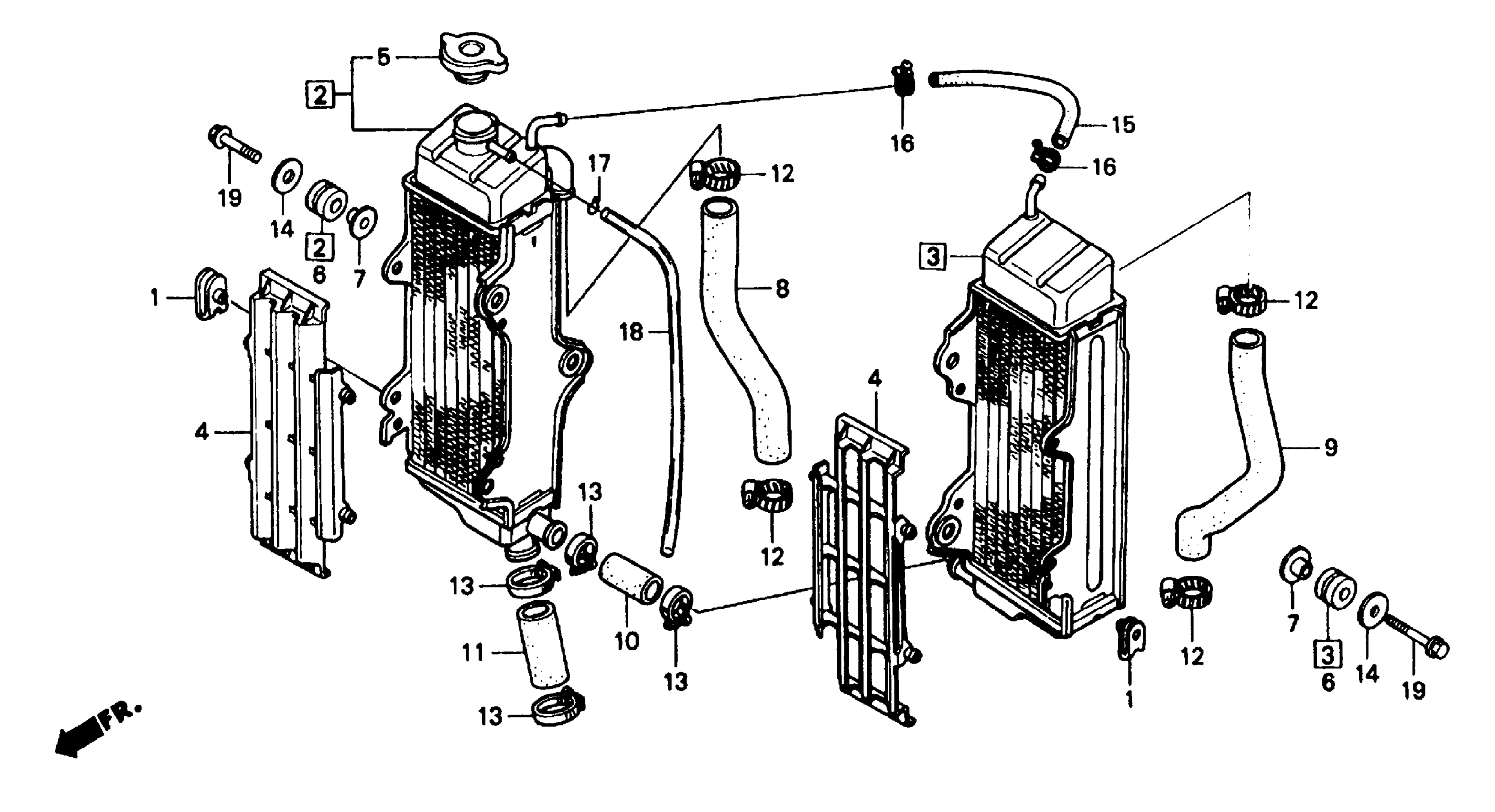

Honda CR500RA (89) MOTORCYCLE, JPN, VIN# JH2PE020-KM800001 RADIATOR 89 Diagram

#

Description
Price

1

NUT, MUFFLER SPRING

18354-KS6-000

$4.64

2

RADIATOR, R. (TOYO) (NOT AVAILABLE) | Use up to Frame SN KM802744 This part replaces 19010-ML3-680.

19010-ML3-681

Unavailable

2

RADIATOR, R. (TOYO) (NOT AVAILABLE) | Use from Frame SN KM802745

19010-ML3-681

Unavailable

3

RADIATOR, L. (TOYO) | Use up to Frame SN KM802744 This part replaces 19015-ML3-680.

19015-ML3-681

Unavailable

3

RADIATOR, L. (TOYO)

19015-ML3-681

Unavailable

4

GRILLE, RADIATOR (NOT AVAILABLE)

19033-KA5-842

Unavailable

5

CAP, RADIATOR This part replaces 19037-KV3-003.

19045-MZ1-621

$45.13

6

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

7

COLLAR, RADIATOR MOUNTING This part replaces 19052-KA3-830.

19052-MAC-680

$4.78

7

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.78

8

HOSE, WATER (B)

19062-ML3-680

Unavailable

9

HOSE, WATER (D)

19063-ML3-680

Unavailable

10

HOSE C, WATER

19064-ML3-680

Unavailable

11

HOSE E, WATER

19067-ML3-680

Unavailable

12

CLAMP, WATER HOSE (25MM)

19504-KY1-003

Unavailable

12

CLAMP, WATER HOSE (25MM) This part replaces 19505-KZ4-003.

19504-KY1-003

Unavailable

13

CLAMP, WATER HOSE

19505-ML3-770

$6.58

14

WASHER, RADIATOR MOUNTING

90403-KA3-830

$2.14

15

BULK HOSE, FUEL (7.5X8000) (7.3X130)

95001-75008-60M

$93.20

16

CLIP, TUBE (A13)

95002-01130

$3.90

17

CLIP, TUBE (B8)

95002-02080

$1.59

18

BULK HOSE, VINYL (6X9X1000) (6X9X600)

95003-14001-10M

$3.08

19

BOLT, FLANGE (6X22)

96001-06022-00

$1.13
