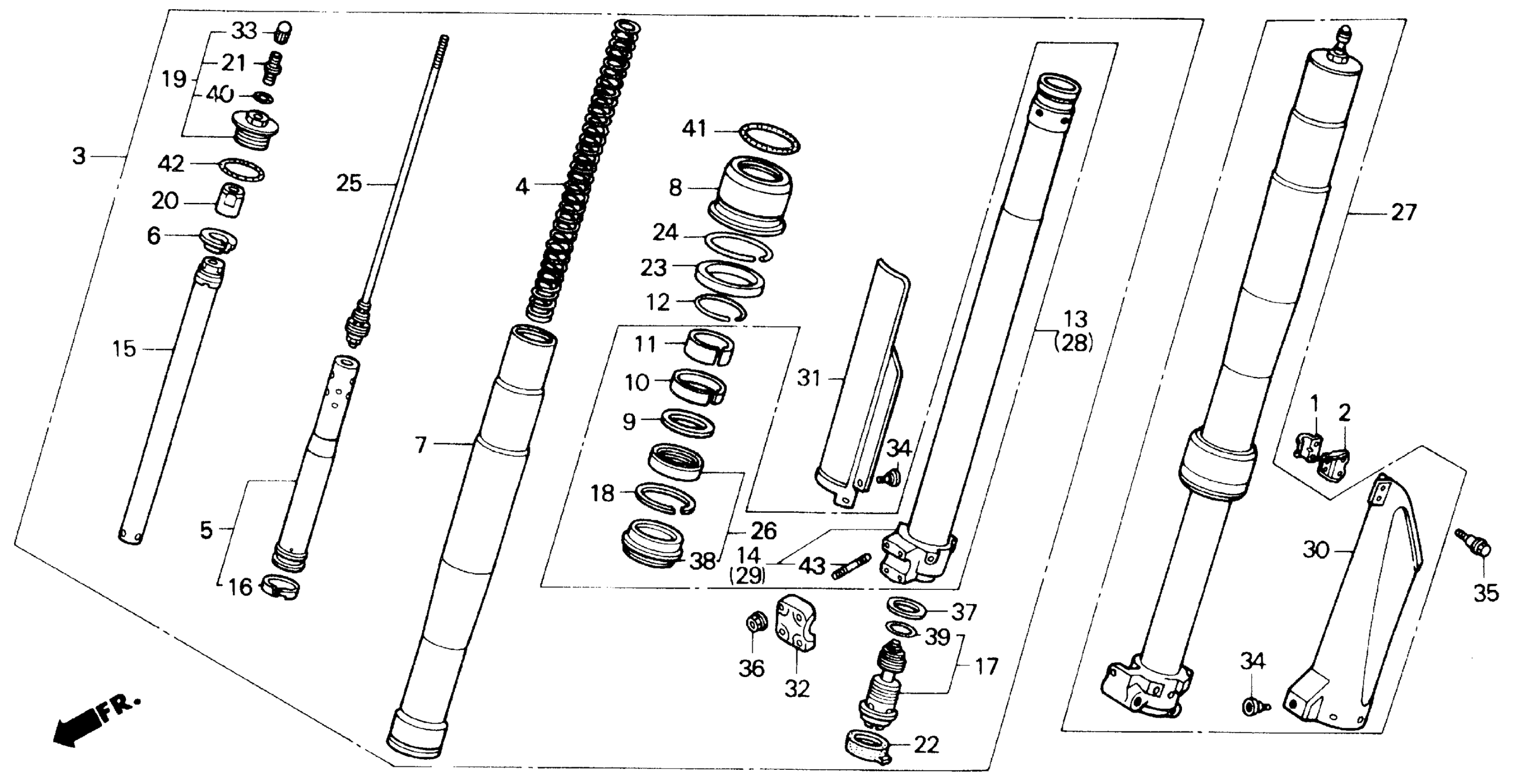

Honda CR500RA (89) MOTORCYCLE, JPN, VIN# JH2PE020-KM800001 FRONT FORK 89 Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE CABLE

45461-KA3-710

$10.40

2

CLAMP B, FR. BRAKE CABLE

45462-KA3-710

$4.94

3

FORK ASSY., R. FR. This part replaces 51400-ML3-683.

51400-ML3-684

Unavailable

3

FORK ASSY., R. FR.

51400-ML3-684

Unavailable

4

SPRING, FR. FORK (3.73N/MM, 0.38KGF/MM) (SHOWA) | (Optional).

51401-KZ3-671

Unavailable

4

SPRING, FR. FORK (3.92N/MM,0.4KGF/MM) (SHOWA)

51401-ML3-681

Unavailable

4

SPRING, FR. FORK (4.12N/MM,0.42KGF/MM) (SHOWA) | (Optional).

51403-ML3-820

Unavailable

5

COLLAR, SPRING This part replaces 51404-KZ3-003.

51404-KZ3-013

Unavailable

5

COLLAR, SPRING

51404-KZ3-013

Unavailable

6

STOPPER, SPRING SEAT

51406-KZ3-003

Unavailable

7

TUBE (OUTER) (NOT AVAILABLE)

51410-KZ3-671

Unavailable

8

CASE, OIL SEAL

51411-KZ3-013

Unavailable

9

RING, BACK-UP

51412-KZ3-003

$9.43

10

BUSH, GUIDE

51414-KZ3-013

Unavailable

11

BUSH, SLIDER This part replaces 51415-KZ3-003.

51415-MCH-003

$11.87

11

BUSH, SLIDER This part replaces 51415-KZ3-701.

51415-MCH-003

$11.87

11

BUSH, SLIDER

51415-MCH-003

$11.87

12

RING, STOPPER

51419-KZ3-003

Unavailable

13

PIPE, R. SLIDE (SHOWA) This part replaces 51420-KZ3-013.

51420-KZ3-701

Unavailable

13

PIPE, R. SLIDE (SHOWA)

51420-KZ3-701

Unavailable

13

PIPE, R. SLIDE (SHOWA) This part replaces 51420-ML3-681.

51420-KZ3-701

Unavailable

14

PIPE, R. SLIDE (SHOWA) This part replaces 51420-KZ3-003.

51420-KZ3-701

Unavailable

14

PIPE, R. SLIDE (SHOWA) This part replaces 51420-KZ3-013.

51420-KZ3-701

Unavailable

14

PIPE, R. SLIDE (SHOWA)

51420-KZ3-701

Unavailable

14

PIPE, R. SLIDE (SHOWA) This part replaces 51420-ML3-681.

51420-KZ3-701

Unavailable

14

PIPE, R. SLIDE (SHOWA) This part replaces 51425-KZ3-810.

51420-KZ3-701

Unavailable

15

CYLINDER (NOT AVAILABLE)

51431-KZ3-003

Unavailable

16

RING, PISTON (NOT AVAILABLE)

51435-KZ3-003

Unavailable

17

BOLT, CENTER

51441-ML3-681

Unavailable

18

RING, OIL SEAL STOPPER

51447-KZ3-003

$5.12

19

BOLT ASSY., FR. FORK (NOT AVAILABLE)

51450-KZ3-003

Unavailable

20

NUT, LOCK (10MM) (NOT AVAILABLE)

51451-KZ3-003

Unavailable

21

VALVE, AIR (SHOWA)

51456-469-013

$33.69

22

CAP, FR. FORK

51461-KZ3-003

Unavailable

23

SLIDER

51475-KZ3-013

Unavailable

24

RING, STOPPER (NOT AVAILABLE)

51476-KZ3-003

Unavailable

25

ROD, PISTON (NOT AVAILABLE)

51480-ML3-681

Unavailable

26

SEAL SET, FR. FORK

51490-KZ3-810

$24.05

27

FORK ASSY., L. FR. (NOT AVAILABLE) | Use up to Frame SN KM801541

51500-ML3-682

Unavailable

27

FORK ASSY., L. FR. (NOT AVAILABLE) | Use from Frame SN KM801542

51500-ML3-684

Unavailable

28

PIPE, L. SLIDE (NOT AVAILABLE) | Use from Frame SN KM801542 This part replaces 51520-KZ3-013.

51520-KZ3-023

Unavailable

28

PIPE, L. SLIDE (NOT AVAILABLE) | Use up to Frame SN KM801541

51520-ML3-681

Unavailable

29

PIPE, L. SLIDE (NOT AVAILABLE) This part replaces 51525-KZ3-810.

51520-KZ3-023

Unavailable

30

PROTECTOR, L. FR. FORK

51610-KZ3-000

Unavailable

31

PROTR, R. FR. FORK This part replaces 51620-KZ3-000.

51620-KZ3-010

Unavailable

32

HOLDER, AXLE This part replaces 51634-KZ3-003.

51634-MV1-003

Unavailable

32

HOLDER, AXLE

51634-MV1-003

Unavailable

33

CAP, AIR VALVE

52425-381-771

$5.05

34

BOLT, DISK (6X13)

90106-KZ3-000

$4.69

35

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

36

NUT, U (6MM)

90301-473-003

$4.07

37

WASHER, SPECIAL

90544-KZ3-003

$3.10

38

DUST SEAL

91254-KZ3-003

$16.91

39

O-RING (15.5X1.5)

91256-GC5-003

$1.51

40

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

40

O-RING (5.8X1.9)

91305-323-000

$2.92

41

O-RING (54.5X2.4) (NOK) This part replaces 91355-KZ3-003.

91360-SM4-003

Unavailable

41

O-RING (54.5X2.4) (NOK)

91360-SM4-003

Unavailable

42

O-RING (44.7X2.4)

91356-KZ3-003

$3.92

43

BOLT, STUD (6X25)

92900-06025-0E

$1.49
