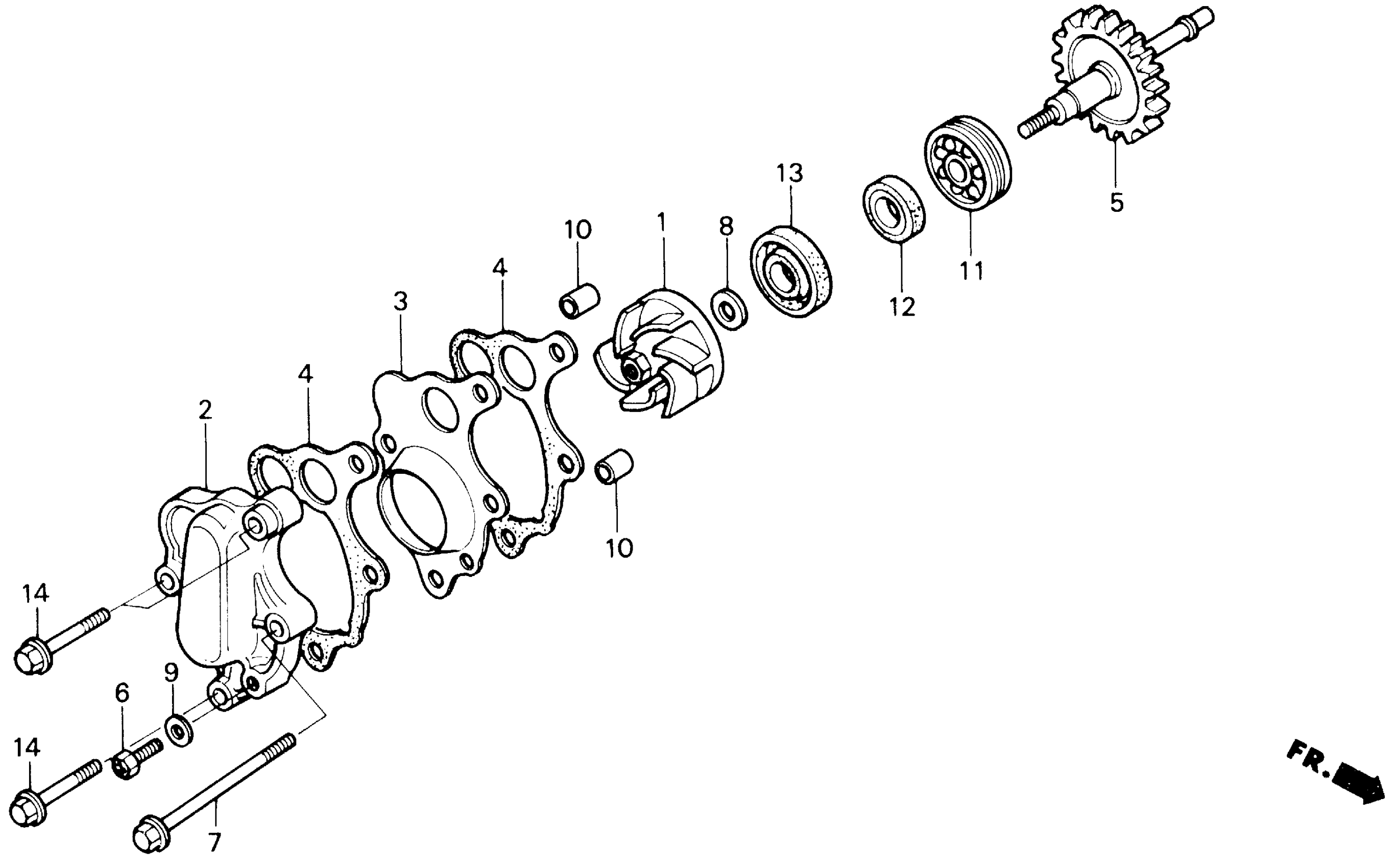

Honda CR500RA (88) MOTORCYCLE, JPN, VIN# JH2PE020-JM700005 TO JH2PE020-JM202250 WATER PUMP 85-89 Diagram

IMPELLER, WATER PUMP

19215-KA5-690

$51.64

COVER, WATER PUMP

19221-KA5-690

Unavailable

SEPARATOR, WATER PUMP

19222-KA5-690

$11.70

GASKET, WATER PUMP COVER This part replaces 19229-KA5-306.

19229-MAC-680

$5.64

GASKET, WATER PUMP COVER This part replaces 19229-KA5-690.

19229-MAC-680

$5.64

GASKET, WATER PUMP COVER This part replaces 19229-MAC-670.

19229-MAC-680

$5.64

GASKET, WATER PUMP COVER

19229-MAC-680

$5.64

SHAFT, WATER PUMP

19240-ML3-000

$122.92

BOLT, OIL CHECK

90037-360-000

$3.26

BOLT, FLANGE (6X75)

96001-06075-07

$1.97

WASHER, SEALING (7MM)

90447-KE1-000

$2.66

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

PIN, DOWEL (8X10) This part replaces 90701-679-000.

94301-08100

$2.25

PIN A, DOWEL (8X10)

94301-08100

$2.25

BEARING, RADIAL BALL (12X28X7) (TOYO)

91001-KA4-003

$17.08

BEARING, RADIAL BALL (12X28X7) (NTN) This part replaces 91001-KA4-004.

91001-KA4-003

$17.08

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

OIL SEAL (12X22X5)

91201-965-000

$4.06

SEAL, WATER PUMP (NOK)

91211-KA3-761

$6.69

BOLT, FLANGE (6X30) This part replaces 96000-06030-07.

96001-06030-07

$1.80

BOLT, FLANGE (6X30)

96001-06030-07

$1.80
