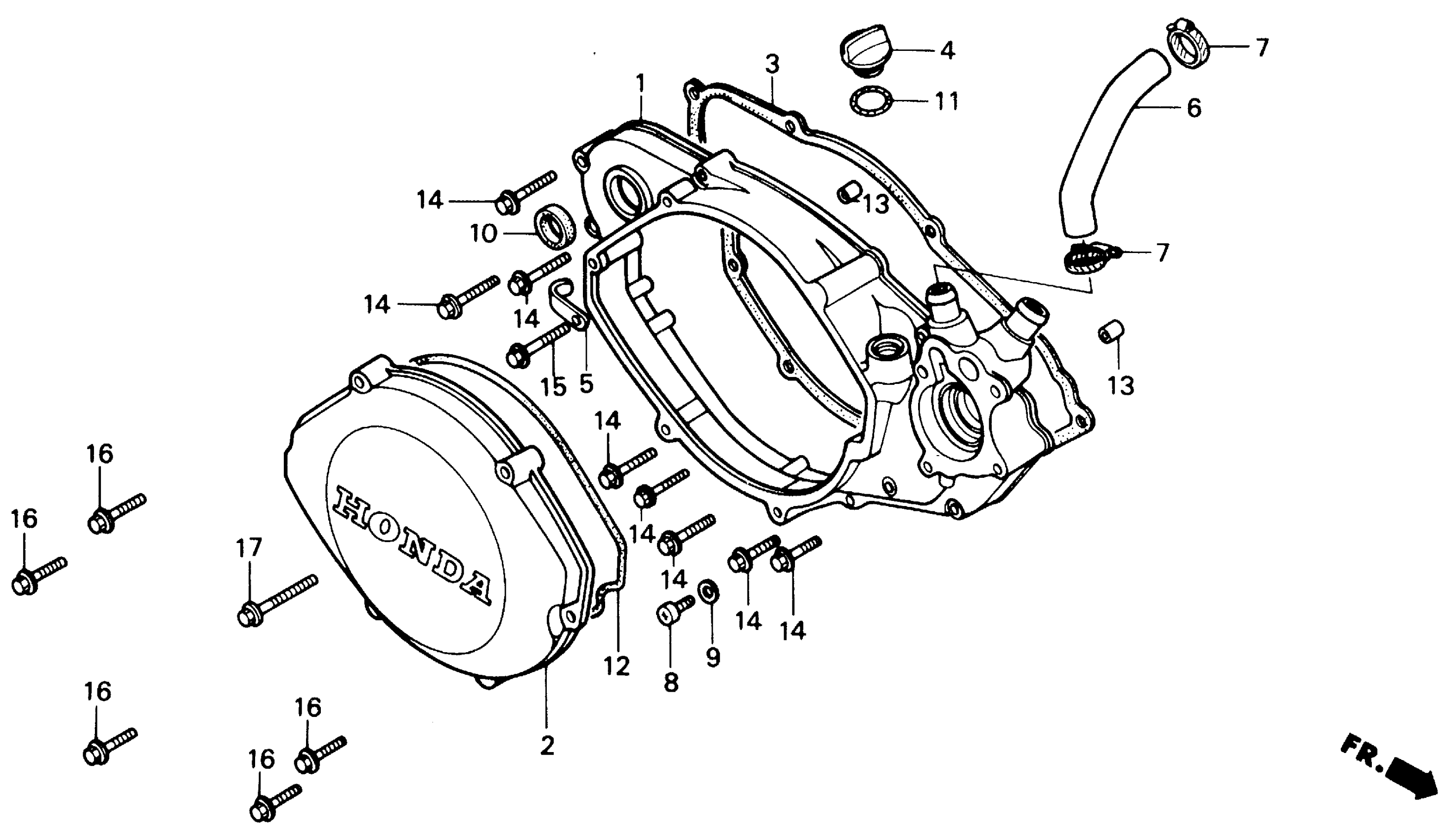

Honda CR500RA (88) MOTORCYCLE, JPN, VIN# JH2PE020-JM700005 TO JH2PE020-JM202250 RIGHT CRANKCASE COVER 87-89 Diagram

COVER, R. CASE

11340-ML3-780

Unavailable

COVER, CLUTCH This part replaces 11342-KS7-700.

11342-KS7-701

Unavailable

COVER, CLUTCH

11342-KS7-701

Unavailable

GASKET, R. CRANKCASE COVER

11395-MAC-680

$16.65

GASKET, R. CRANKCASE COVER This part replaces 11395-ML3-000.

11395-MAC-680

$16.65

GASKET, R. CRANKCASE COVER This part replaces 11395-ML3-306.

11395-MAC-680

$16.65

GASKET, R. CRANKCASE COVER This part replaces 11395-ML3-790.

11395-MAC-680

$16.65

CAP, OIL FILLER

15611-KA4-710

$13.22

CLAMP, OVERFLOW PIPE

16236-045-010

Unavailable

HOSE, WATER (NOT AVAILABLE)

19501-KA5-690

Unavailable

CLAMP, WATER HOSE

19505-ML3-770

$6.75

BOLT, OIL CHECK

90037-360-000

$4.20

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.28

OIL SEAL (20X28X5) This part replaces 91202-KA4-003.

91204-KF0-003

$6.23

OIL SEAL (20X28X5)

91204-KF0-003

$6.23

O-RING (16MM)

91303-800-000

$2.06

O-RING, SPECIAL

91311-KS7-701

$8.79

PIN A, DOWEL (8X14)

94301-08140

$2.76

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$2.75

BOLT, FLANGE (6X35)

96001-06035-07

$2.75

BOLT, FLANGE (6X40) This part replaces 96000-06040-07.

96001-06040-07

$1.29

BOLT, FLANGE (6X40)

96001-06040-07

$1.29

BOLT, FLANGE (6X25)

96001-06025-07

$1.24

BOLT, FLANGE (6X65)

96001-06065-07

$1.82
