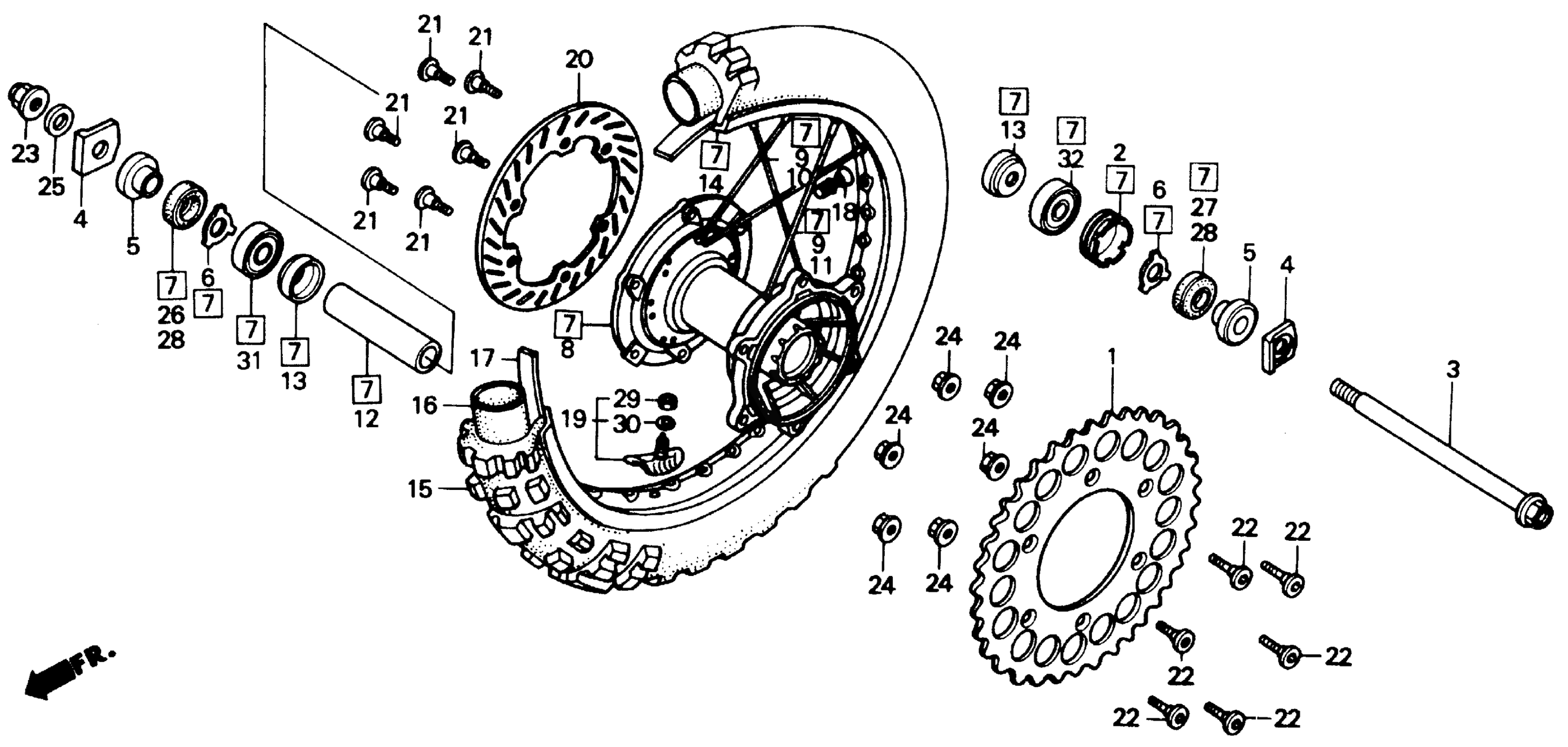

Honda CR500RA (88) MOTORCYCLE, JPN, VIN# JH2PE020-JM700005 TO JH2PE020-JM202250 REAR WHEEL 87-89 Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KS6-830.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (53T) | (Optional). This part replaces 41201-KS7-700.

41201-KZ3-740

Unavailable

1

SPROCKET, FINAL DRIVEN (53T) | (Optional).

41201-KZ3-740

Unavailable

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KZ4-711.

41201-MEY-000

$115.77

1

SPROCKET, RR. (49T) | (Optional).

41202-KS6-700

Unavailable

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41202-KZ3-B00.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41202-KZ4-J20.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) (STEEL) | (Optional).

41204-KA3-710

Unavailable

1

SPROCKET, RR. (49T) | (Optional). This part replaces 41202-KS6-305.

41202-KS6-700

Unavailable

1

SPROCKET, RR. (49T) | (Optional). This part replaces 41202-KS6-306.

41202-KS6-700

Unavailable

1

SPROCKET, FINAL DRIVEN (53T) | (Optional). This part replaces 41203-KS6-305.

41201-KZ3-740

Unavailable

2

RETAINER, RR. WHEEL BEARING

41231-KS6-700

Unavailable

3

AXLE, RR. WHEEL

42301-KS6-700

Unavailable

4

COLLAR, RR. AXLE (NOT AVAILABLE)

42306-KS6-830

Unavailable

5

COLLAR, RR. WHEEL SIDE

42311-KS6-830

$29.55

7

RIM ASSY., RR. WHEEL *NH105* (MAT BLACK) | Use up to Frame SN JM701556

426A5-ML3-841ZA

Unavailable

7

RIM ASSY., RR. WHEEL *NH105* (MAT BLACK) (NOT AVAILABLE) | Use from Frame SN JM701557

426A5-ML3-842ZA

Unavailable

8

HUB, RR. WHEEL *NH105* (MAT BLACK)

42601-KS6-700ZA

Unavailable

9

SPOKE SET, RR.

42610-ML3-305

Unavailable

12

COLLAR, RR. AXLE DISTANCE

42620-KS6-830

Unavailable

14

RIM, RR. WHEEL This part replaces 42701-KS7-831.

42701-ML3-842

Unavailable

14

RIM, RR. WHEEL | Use up to Frame SN JM701556

42701-ML3-842

Unavailable

15

TIRE, RR. (110/100-18) (64M D756) (DUNLOP) This part replaces 42711-ML3-841.

42711-MEY-004

Unavailable

15

TIRE, RR. (110/100-18) (64M D756) (DUNLOP) This part replaces 42711-ML3-911.

42711-MEY-004

Unavailable

16

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-KS7-641.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-KV6-009.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

17

FLAP, TIRE (2.15-18) (DUNLOP) This part replaces 42713-KS6-641.

42713-300-004

$6.14

18

CAP, VALVE

42714-KA3-710

$10.46

19

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

20

DISK, RR. BRAKE (NOT AVAILABLE)

43351-KS6-701

Unavailable

21

BOLT, DISK (6X17)

90105-KS6-700

$5.20

22

SCREW, FLAT (8X29)

90125-KA3-700

$6.19

23

NUT, FLANGE (18MM) This part replaces 90305-KS6-003.

90305-MCC-000

$7.10

24

NUT, HEX. (8MM)

90309-357-000

$3.40

28

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-711.

91257-MAY-003

$9.16

28

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-712.

91257-MAY-003

$9.16

28

DUST SEAL (28X42X8) (NOK)

91257-MAY-003

$9.16

29

NUT, HEX. (8MM)

94001-08000-0S

$1.49

30

WASHER, SPRING (8MM)

94111-08000

$1.49

31

BEARING, RADIAL BALL (6004)

91062-KS6-831

$31.72

32

BEARING, RADIAL BALL (6204)

91061-KS6-831

Unavailable
