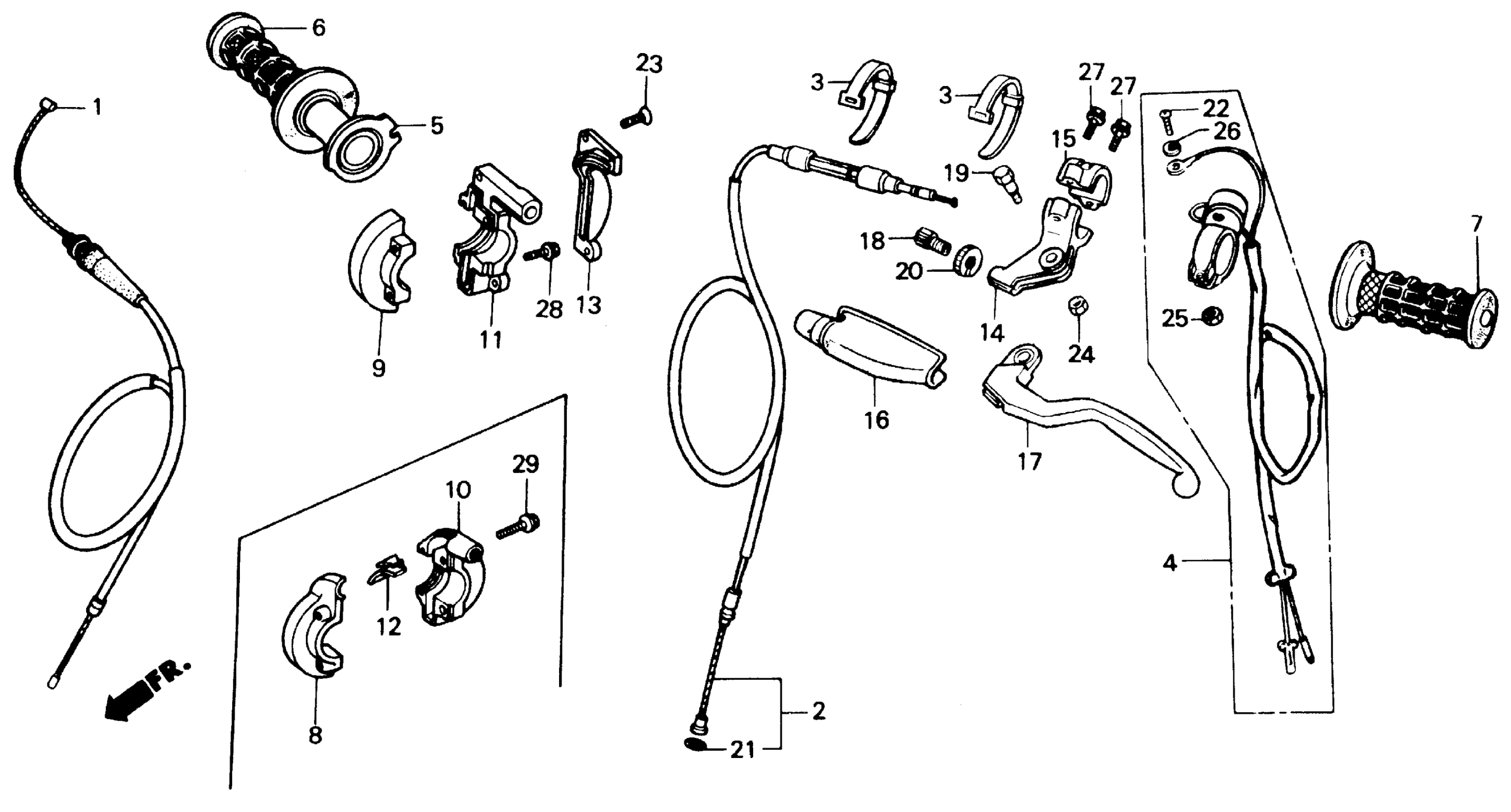

Honda CR500RA (88) MOTORCYCLE, JPN, VIN# JH2PE020-JM700005 TO JH2PE020-JM202250 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-ML3-670

Unavailable

2

CABLE, CLUTCH

22870-KA5-841

$33.55

3

BAND B1, CABLE

32161-404-000

$2.23

4

SWITCH ASSY., STOP This part replaces 35130-GM7-700.

35130-KZ3-860

$44.30

5

PIPE, THROTTLE GRIP

53141-KS6-000

Unavailable

6

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$12.63

7

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$9.44

9

HOUSING A, GRIP

53167-KS6-000

Unavailable

11

HOUSING B, GRIP

53168-KS6-000

Unavailable

13

COVER B, HOUSING (NOT AVAILABLE)

53169-KS6-000

Unavailable

14

BRACKET, L. HANDLEBAR

53172-KA3-730

$38.78

15

HOLDER, L. LEVER BRACKET

53174-KA3-730

$23.53

16

COVER, L. HANDLEBAR

53177-430-000

$11.00

17

CONTROL LEVER, L. HANDLEBAR

53178-KA3-840

$29.80

18

BOLT, CABLE ADJUSTING

53192-KA4-710

$10.51

19

BOLT, HANDLE LEVER PIVOT

90114-428-870

$4.06

20

NUT, FIXING This part replaces 90321-KA4-700.

90321-KF0-000

$9.76

20

NUT, FIXING

90321-KF0-000

$9.76

21

O-RING (5.8X1.9)

91357-KA4-004

$2.48

22

SCREW, PAN (4X12)

93500-04012-0A

$1.49

22

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

23

SCREW, OVAL (4X10)

93700-04010-0G

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

WASHER, SPRING (4MM)

94111-04000

$1.49

27

BOLT, FLANGE (6X20) This part replaces 96000-06020-07.

96001-06020-07

$1.49

27

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

28

BOLT, FLANGE (6X22) This part replaces 96000-06022-07.

96001-06022-07

$1.85

28

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
