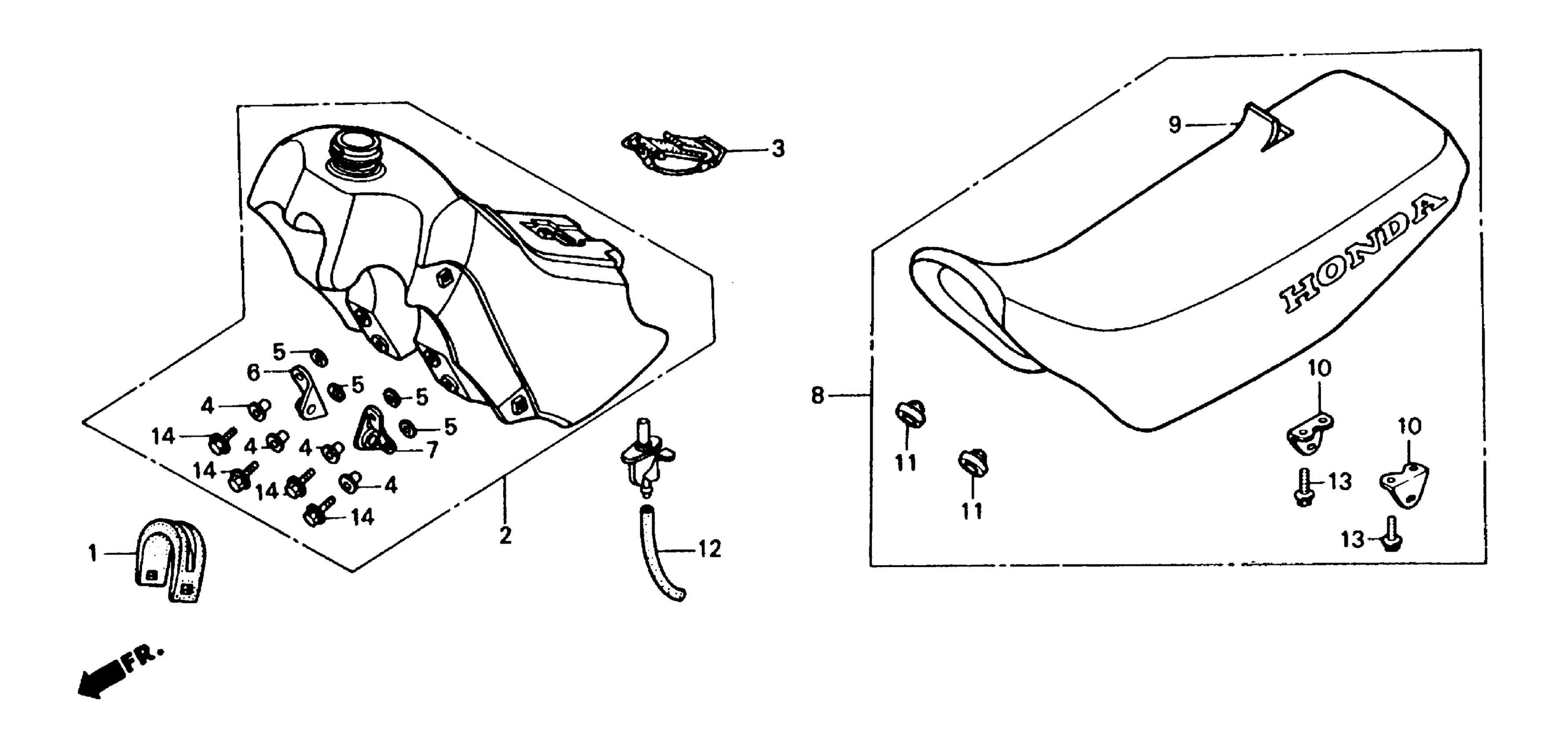

Honda CR500RA (88) MOTORCYCLE, JPN, VIN# JH2PE020-JM700005 TO JH2PE020-JM202250 FUEL TANK 88 Diagram

RUBBER, TANK SETTING (B) | (Optional).

17506-KA3-830

Unavailable

TANK, FUEL *R134* (FIGHTING RED) | (Optional). This part replaces 17510-ML3-740ZB.

17510-ML3-741ZA

Unavailable

TANK, FUEL *R134* (FIGHTING RED) | (Optional).

17510-ML3-741ZA

Unavailable

BAND, RR. TANK | (Optional).

17516-GF5-000

$37.83

COLLAR, FUEL TANK SETTING | (Optional).

17626-KA4-700

$6.71

RUBBER, FR. FUEL TANK | (Optional).

17627-467-000

$2.39

BRACKET, R. FR. FUEL TANK | (Optional).

17634-KS6-701

Unavailable

BRACKET, L. FR. FUEL TANK | (Optional).

17635-KS6-701

Unavailable

SEAT (117MM) | (Optional).

77100-ML3-800

Unavailable

COVER, SEAT (NOT AVAILABLE) | (Optional).

77101-ML3-800

Unavailable

STAY, RR. SEAT (NOT AVAILABLE) | (Optional).

77105-KA3-830

Unavailable

RUBBER, SEAT MOUNTING | (Optional).

77110-KA3-730

$5.05

BULK HOSE, FUEL (7.5X8000) (7.3X150) | (Optional).

95001-75008-60M

$103.82

BOLT, FLANGE (6X10) | (Optional). This part replaces 95700-06010-00.

95701-06010-00

$1.49

BOLT, FLANGE (6X10) | (Optional).

95701-06010-00

$1.49

BOLT, FLANGE (6X20) | (Optional). This part replaces 96000-06020-00.

96001-06020-00

$1.49

BOLT, FLANGE (6X20) | (Optional).

96001-06020-00

$1.49
