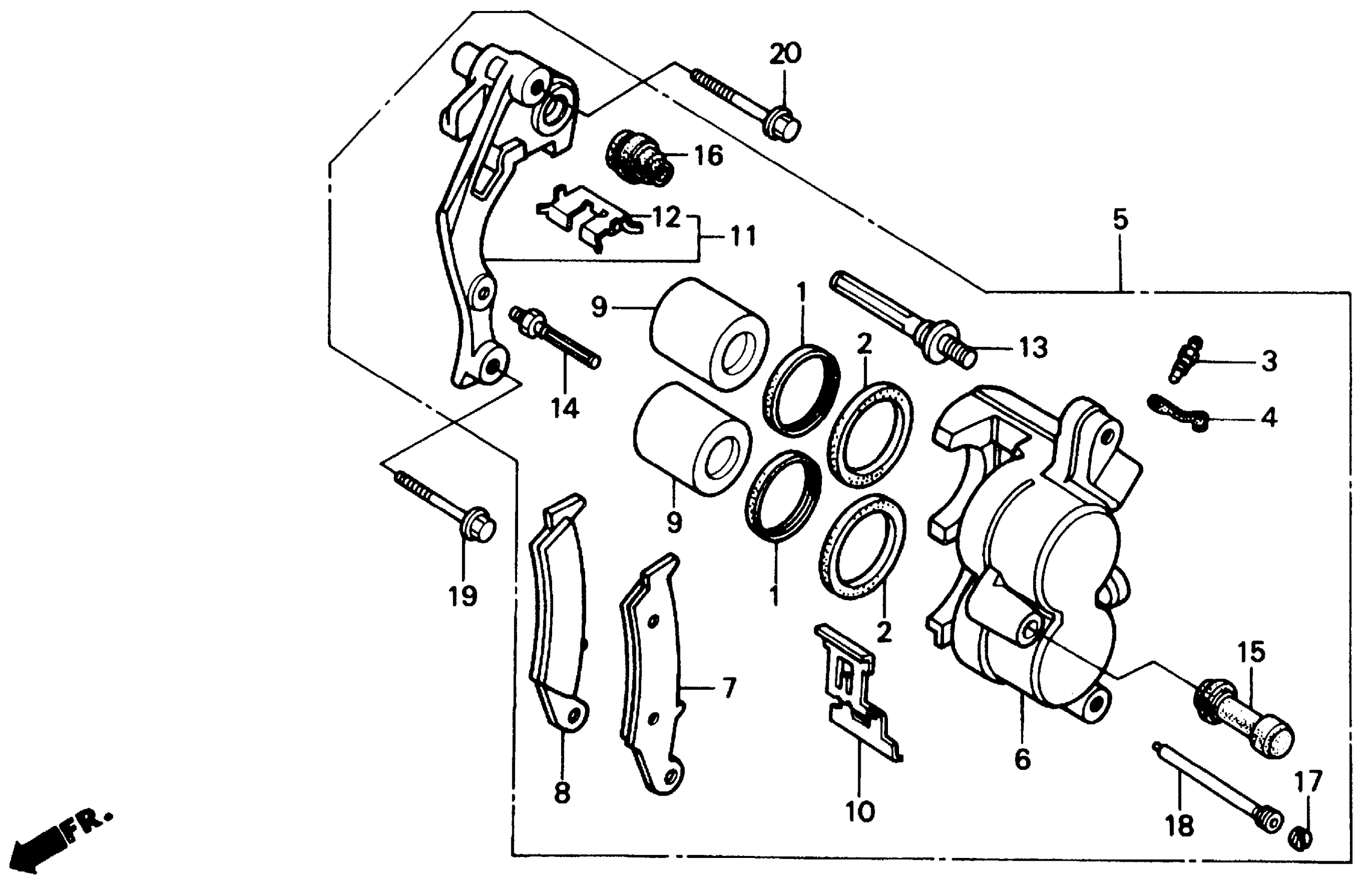

Honda CR500RA (88) MOTORCYCLE, JPN, VIN# JH2PE020-JM700005 TO JH2PE020-JM202250 FR. BRAKE CALIPER 87-89 Diagram

#

Description
Price

NI

PAD SET, FR. BRAKE This part replaces 451A0-KS6-670.

45105-KZ1-405

$39.07

NI

PAD SET, FR. BRAKE

45105-KZ1-405

$39.07

1

DUST SEAL

43109-MA3-006

$5.73

2

SEAL, PISTON

43209-MA3-006

$7.04

3

SCREW, BLEEDER

43352-568-003

$7.95

4

CAP, BLEEDER

43353-461-771

$5.05

5

CALIPER ASSY., L. FR. (NISSIN) This part replaces 45100-KS6-831.

45100-KS6-836

Unavailable

5

CALIPER ASSY., L. FR. (NISSIN) This part replaces 45100-KS6-832.

45100-KS6-836

Unavailable

5

CALIPER ASSY., L. FR. (NISSIN) This part replaces 45100-KS6-834.

45100-KS6-836

Unavailable

5

CALIPER ASSY., L. FR. (NISSIN) This part replaces 45100-KS6-835.

45100-KS6-836

Unavailable

5

CALIPER ASSY., L. FR. (NISSIN)

45100-KS6-836

Unavailable

6

BODY, FR. CALIPER This part replaces 45101-KS6-701.

45101-KS6-702

Unavailable

6

BODY, FR. CALIPER

45101-KS6-702

Unavailable

7

PAD (A) (NISSIN) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-KS6-831

Unavailable

8

PAD (B) (NISSIN) (SEE KIT P/N--END OF BLOCK)

45106-KS6-831

Unavailable

9

PISTON This part replaces 43107-KW3-006.

45107-KS6-702

$55.47

9

PISTON This part replaces 45107-KS6-701.

45107-KS6-702

$55.47

9

PISTON

45107-KS6-702

$55.47

10

SPRING, PAD This part replaces 45108-HA5-671.

45108-MY1-006

$10.74

10

SPRING, PAD

45108-MY1-006

$10.74

10

SPRING, PAD This part replaces 45108-MY6-671.

45108-MY1-006

$10.74

11

BRACKET, L. FR.

45110-KCY-671

Unavailable

11

BRACKET, L. FR. This part replaces 45110-KS6-701.

45110-KCY-671

Unavailable

11

BRACKET, L. FR. This part replaces 45110-KS6-702.

45110-KCY-671

Unavailable

12

RETAINER

45112-KS6-701

$6.08

13

BOLT A, PIN This part replaces 45131-HA5-671.

45131-HA5-672

$15.44

13

BOLT A, BOLT

45131-HA5-672

$15.44

14

PIN, BOLT

45131-166-016

$7.63

15

BUSH, PIN

45132-166-016

$5.46

16

BOOT B

45133-MA3-006

$5.46

17

PLUG, PIN This part replaces 45203-MG3-006.

45203-MG3-016

$5.12

17

PLUG, PIN

45203-MG3-016

$5.12

18

PIN, HANGER This part replaces 45215-HA5-671.

45215-HA5-672

$10.63

18

PIN, HANGER

45215-HA5-672

$10.63

19

BOLT, FLANGE (8X40) This part replaces 90131-MG3-000.

96400-08040-00

$2.02

20

BOLT, FLANGE (8X50) This part replaces 90132-MG3-000.

95801-08050-00

$2.98

20

BOLT, FLANGE (8X50)

95801-08050-00

$2.98
