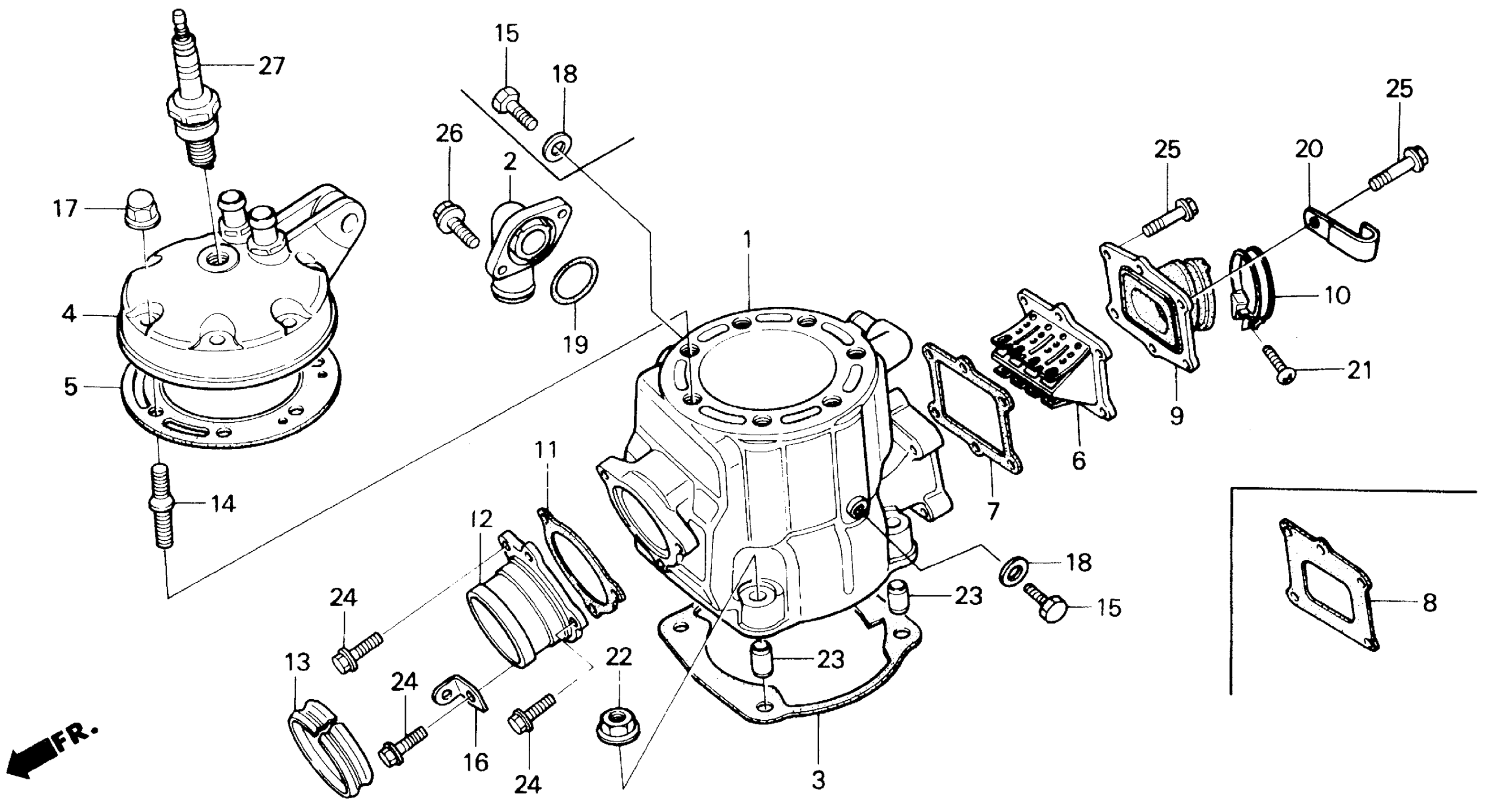

Honda CR500RA (88) MOTORCYCLE, JPN, VIN# JH2PE020-JM700005 TO JH2PE020-JM202250 CYLINDER 85-89 Diagram

#

Description
Price

1

CYLINDER This part replaces 12100-ML3-870.

06120-KA5-405

Unavailable

3

GASKET, CYLINDER This part replaces 12191-KA5-690.

12191-MAC-680

$14.82

3

GASKET, CYLINDER This part replaces 12191-KA5-740.

12191-MAC-680

$14.82

3

GASKET, CYLINDER

12191-MAC-680

$14.82

3

GASKET, CYLINDER This part replaces 12191-ML3-680.

12191-MAC-680

$14.82

3

GASKET, CYLINDER This part replaces 12191-ML3-790.

12191-MAC-680

$14.82

4

CYLINDER HEAD

12200-ML3-870

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12254-KA5-691.

12254-ML3-881

Unavailable

5

GASKET, CYLINDER HEAD

12254-ML3-881

Unavailable

6

VALVE ASSY., REED

14100-ML3-003

Unavailable

7

GASKET A, REED VALVE

14132-KA5-306

$4.63

7

GASKET A, REED VALVE This part replaces 14132-KA5-740.

14132-KA5-306

$4.63

9

INSULATOR, CARBURETOR

16221-ML3-870

Unavailable

10

BAND, INSULATOR

16223-KA5-690

$17.05

11

GASKET, EX. FLANGE

18291-KA5-306

Unavailable

11

GASKET, EX. FLANGE This part replaces 18291-KA5-690.

18291-KA5-306

Unavailable

12

JOINT, EX. PIPE This part replaces 18352-KA5-690.

18352-KA5-691

Unavailable

12

JOINT, EX. PIPE

18352-KA5-691

Unavailable

13

SEAL, EX. MANIFOLD

18359-KA5-690

$11.67

14

BOLT, STUD (SPECIAL)

90032-KA5-690

$4.17

15

BOLT, OIL CHECK

90037-360-000

$3.26

16

PLATE, SPRING HANGER (NOT AVAILABLE)

90442-KA5-690

Unavailable

17

NUT, CAP (8MM)

90443-107-000

$2.89

18

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

20

CLIP, WIRE HARNESS

91406-657-671

$9.42

21

SCREW, PAN (5X25)

93500-05025-0A

$1.49

22

NUT, FLANGE (10MM)

94050-10000

$1.59

23

PIN A, DOWEL (12X20)

94301-12200

$2.29

24

BOLT, FLANGE (6X18) This part replaces 96000-06018-07.

96001-06018-07

$1.49

24

BOLT, FLANGE (6X18)

96001-06018-07

$1.49

25

BOLT, FLANGE (6X22)

96300-06022-00

$1.49

27

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58649.

98079-58679

$5.80

27

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58649-00.

98079-58679

$5.80

27

SPARK PLUG (W24ESR-V) (DENSO)

98079-58659

$2.54

27

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58669.

98079-58679

$5.80

27

SPARK PLUG (BR8EG) (NGK)

98079-58679

$5.80
