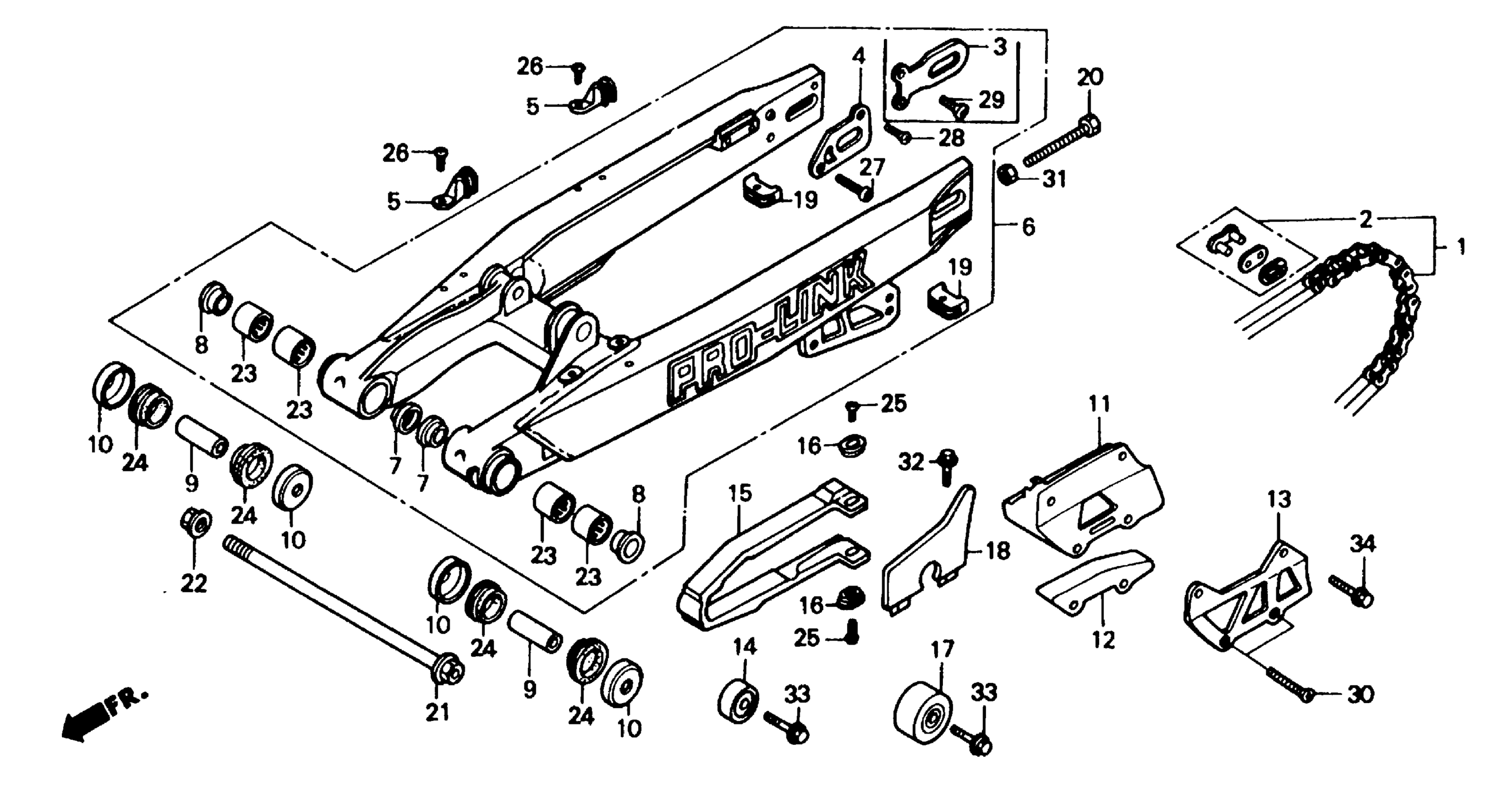

Honda CR500RA (87) MOTORCYCLE, JPN, VIN# JH2PE020-HC600014 TO JH2PE020-HC604005 SWINGARM 87-88 Diagram

#

Description
Price

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KA5-741.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KA5-742.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE | (Optional).

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-741.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-742.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-743.

405W3-KA5-505

Unavailable

2

MASTER LINK (TAKASAGO)

40531-KA4-731

Unavailable

2

MASTER LINK (DAIDO)

40531-KA4-732

Unavailable

3

WASHER, RR. SWINGARM INSIDE

42307-KS6-700

$28.07

5

GUIDE, RR. BRAKE HOSE

43468-KS6-700

$11.31

6

SWINGARM ASSY., RR.

52000-ML3-770

Unavailable

7

BUSH, PIVOT THRUST (IN.)

52108-KS6-701

Unavailable

8

BUSH, PIVOT THRUST

52109-KA4-701

$16.01

9

COLLAR, RR. SWINGARM (NOT AVAILABLE)

52141-KA3-830

$14.71

10

CAP, DUST SEAL

52144-KA3-731

$14.60

11

GUIDE, CHAIN

52146-KS6-700

Unavailable

12

SLIDER, CHAIN GUIDE

52147-KS6-701

$25.73

13

PLATE, CHAIN GUIDE (NOT AVAILABLE)

52156-KS6-700

Unavailable

14

ROLLER, CHAIN TENSIONER

52158-KA3-831

$51.10

15

SLIDER, CHAIN

52170-KS6-700

Unavailable

16

WASHER, CHAIN SLIDER

52171-KA3-830

$2.89

17

ROLLER, CHAIN (UPPER)

52175-KA3-831

Unavailable

18

SPLASH GUARD, CHAIN (NOT AVAILABLE)

52180-KS6-700

Unavailable

19

CAP, RR. SWINGARM FRAME

52190-KS6-700

Unavailable

20

BOLT, HEX. (8X49)

90106-KS6-700

$5.69

21

BOLT, RR. SWINGARM

90117-KA3-831

Unavailable

22

NUT, RR. SWINGARM PIVOT

90301-430-000

Unavailable

23

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-KS6-003.

91071-KS6-004

$21.15

23

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-KS6-004

$21.15

24

DUST SEAL (32X36.8X8) (ARAI)

91253-KA3-731

Unavailable

24

DUST SEAL

91253-KA4-701

$12.86

24

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$12.86

25

SCREW, PAN (5X6)

93500-05006-0H

$1.49

26

SCREW, PAN (5X8)

93500-05008-0A

$1.49

29

SCREW, FLAT (6X28)

93600-06028-0A

$1.49

30

SCREW, FLAT (6X40)

93600-06040-0A

$1.49

31

NUT, FLANGE (8MM)

94050-08000

$1.49

32

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

32

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

33

BOLT, FLANGE (8X35)

96300-08035-00

$1.95

34

BOLT, FLANGE (6X20)

96300-06020-00

$1.49

34

BOLT, FLANGE (6X20) This part replaces 96500-06020-00.

96300-06020-00

$1.49
