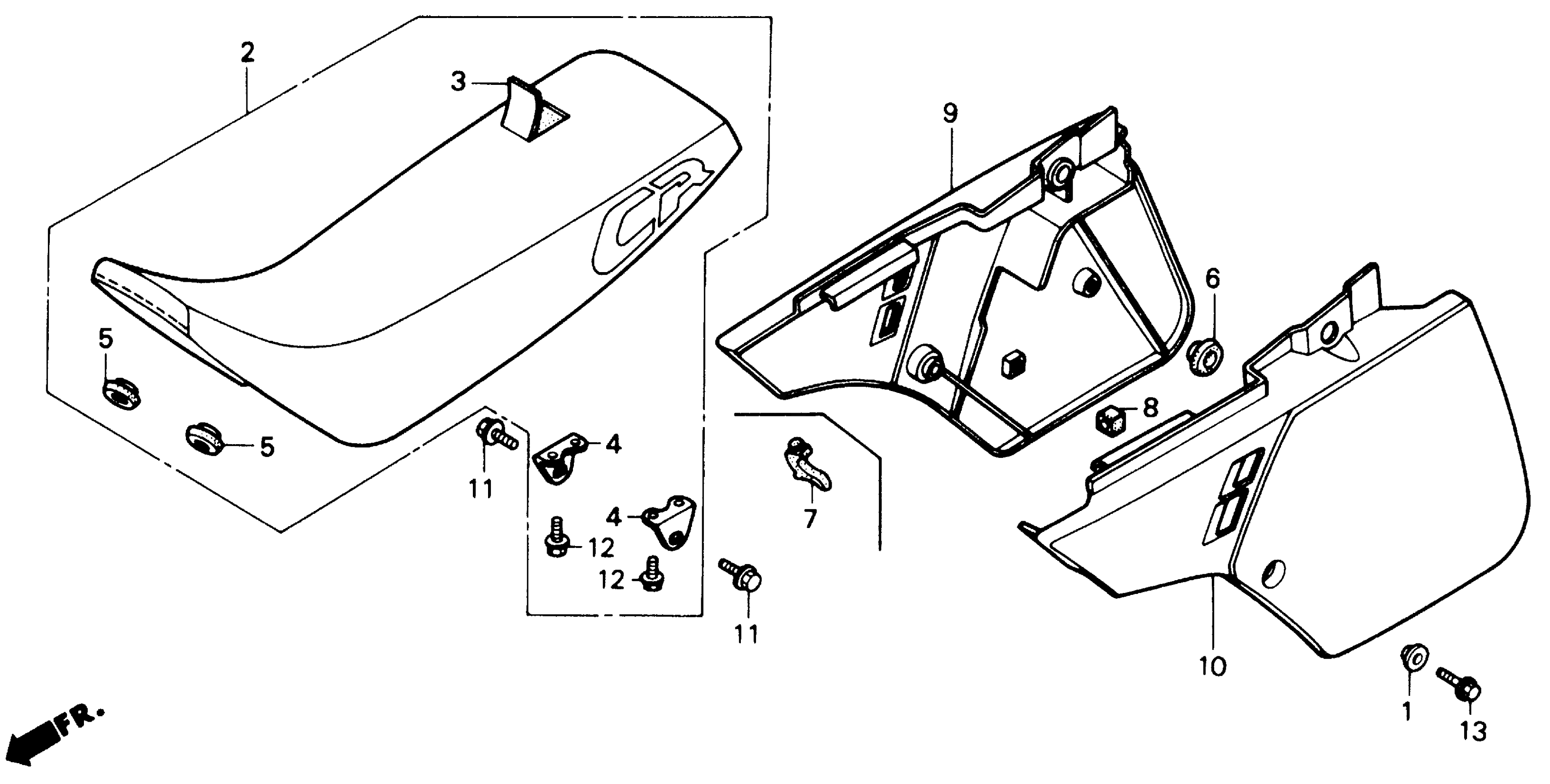

Honda CR500RA (87) MOTORCYCLE, JPN, VIN# JH2PE020-HC600014 TO JH2PE020-HC604005 SEAT 87-89 Diagram

#

Description
Price

1

COLLAR, SIDE COVER

61104-435-000

$5.05

2

SEAT (80MM) (NOT AVAILABLE) | (Optional).

77100-KS6-700

Unavailable

2

SEAT (117MM) This part replaces 77100-KS7-771.

77100-KS7-305

Unavailable

2

SEAT (139MM) (NOT AVAILABLE) | (Optional).

77100-ML3-820

Unavailable

3

COVER, SEAT ( 80MM) (NOT AVAILABLE) | (Optional).

77101-KS6-700

Unavailable

3

COVER, SEAT ( 93MM) (NOT AVAILABLE) | (Optional).

77101-KS6-770

Unavailable

3

COVER, SEAT ( 117MM) (NOT AVAILABLE)

77101-KS7-770

Unavailable

3

COVER, SEAT (NOT AVAILABLE) | (Optional).

77101-ML3-820

Unavailable

4

STAY, RR. SEAT (NOT AVAILABLE)

77105-KA3-830

Unavailable

5

RUBBER, SEAT MOUNTING

77110-KA3-730

$5.05

6

RUBBER, SIDE COVER (PD)

83512-KA4-700

$4.57

7

RUBBER, SIDE COVER

83512-KS6-700

Unavailable

9

COVER SUB-ASSY., R. SIDE *R119* (TYPE2) (FLASH RED) (NOT AVAILABLE)

83520-KS6-700ZB

Unavailable

10

COVER SUB-ASSY., L. SIDE *R119* (TYPE2) (FLASH RED) (NOT AVAILABLE)

83620-KS6-700ZB

Unavailable

11

BOLT, FLANGE (8X20) This part replaces 90133-KA3-730.

96300-08020-00

$1.57

11

BOLT, FLANGE (8X20)

96300-08020-00

$1.57

11

BOLT, FLANGE (8X20) This part replaces 96500-08012-00.

96300-08020-00

$1.57

11

BOLT, FLANGE (8X20) This part replaces 96500-08020-00.

96300-08020-00

$1.57

12

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

12

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

13

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

13

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
