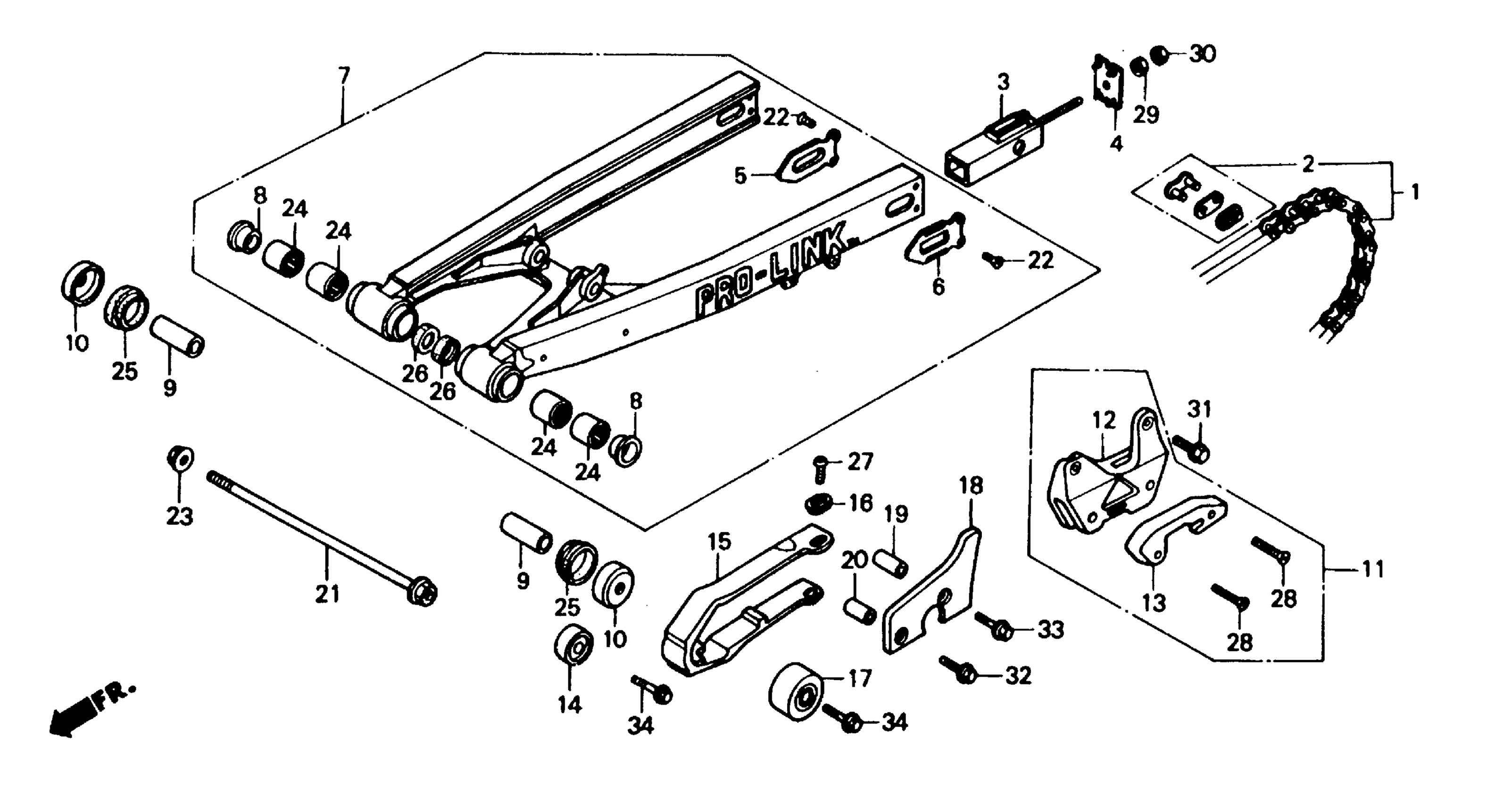

Honda CR500RA (86) MOTORCYCLE, JPN, VIN# JH2PE020-GC500018 TO JH2PE020-GC505028 SWINGARM 86 Diagram

#

Description
Price

1

CHAIN, DRIVE

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE | (Optional).

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-741.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-742.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-743.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KA5-741.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KA5-742.

405W3-KA5-505

Unavailable

2

MASTER LINK (TAKASAGO)

40531-KA4-731

Unavailable

2

MASTER LINK (DAIDO)

40531-KA4-732

Unavailable

3

ADJUSTER, CHAIN

40543-KA3-831

Unavailable

4

RETAINER, CHAIN ADJUSTER (NOT AVAILABLE)

40544-KA3-830

Unavailable

5

WASHER, RR. SWINGARM INSIDE (NOT AVAILABLE)

42307-KA3-830

Unavailable

6

WASHER, SWINGARM (OUTER) (NOT AVAILABLE)

42308-KA3-830

Unavailable

7

SWINGARM ASSY., RR. | Use up to Frame SN GC500372 This part replaces 52000-ML3-670.

52000-ML3-671

Unavailable

7

SWINGARM ASSY., RR.

52000-ML3-671

Unavailable

8

BUSH, PIVOT THRUST

52109-KA4-701

$16.01

9

COLLAR, RR. SWINGARM

52141-KS6-000

Unavailable

10

CAP, DUST SEAL

52144-KA3-731

$14.60

11

GUIDE SET, CHAIN | Use up to Frame SN GC505037

52145-KS6-305

Unavailable

12

GUIDE SET, CHAIN | Use up to Frame SN GC505037

52145-KS6-305

Unavailable

12

GUIDE SET, CHAIN | Use up to Frame SN GC505037 This part replaces 52146-KS6-000.

52145-KS6-305

Unavailable

12

GUIDE, CHAIN (NOT AVAILABLE) | Use from Frame SN GC505038

52146-KS6-010

Unavailable

13

GUIDE SET, CHAIN | Use up to Frame SN GC505037

52145-KS6-305

Unavailable

13

GUIDE SET, CHAIN | Use up to Frame SN GC505037 This part replaces 52146-KS6-000.

52145-KS6-305

Unavailable

13

GUIDE SET, CHAIN | Use up to Frame SN GC505037 This part replaces 52147-KS6-005.

52145-KS6-305

Unavailable

13

SLIDER, CHAIN GUIDE | Use from Frame SN GC505038

52147-KS6-015

Unavailable

14

ROLLER, CHAIN TENSIONER

52158-KA3-831

$51.10

15

SLIDER, CHAIN

52170-KS6-000

Unavailable

16

WASHER, CHAIN SLIDER

52171-KA3-830

$2.89

17

ROLLER, CHAIN (UPPER)

52175-KA3-831

Unavailable

18

SPLASH GUARD, CHAIN (NOT AVAILABLE)

52180-KA3-830

Unavailable

19

COLLAR, CHAIN SPLASH GUARD

52181-KA3-710

Unavailable

20

COLLAR, CHAIN SPLASH GUARD (NOT AVAILABLE)

52181-KA3-830

Unavailable

21

BOLT, RR. SWINGARM

90117-KA3-831

Unavailable

22

SCREW, FLAT (5X4)

90124-KA3-711

$5.60

22

SCREW, FLAT (5X4) This part replaces 90124-KA3-830.

90124-KA3-711

$5.60

23

NUT, RR. SWINGARM PIVOT

90301-430-000

Unavailable

24

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-KS6-003.

91071-KS6-004

$21.15

24

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-KS6-004

$21.15

25

DUST SEAL (32X36.8X8) (ARAI)

91253-KA3-731

Unavailable

25

DUST SEAL

91253-KA4-701

$12.86

25

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$12.86

26

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$9.19

26

DUST SEAL (20X26X4.5) (ARAI) This part replaces 91254-KS6-005.

91254-KS6-003

$9.19

27

SCREW, PAN (5X6)

93500-05006-0H

$1.49

28

SCREW, FLAT (6X35) | Use up to Frame SN GC505037

93600-06035-0A

$1.49

28

SCREW, FLAT (6X35) | Use from Frame SN GC505038

93600-06035-0A

$1.49

29

NUT, HEX. (8MM)

94001-08000-0S

$1.49

30

NUT, HEX. (8MM)

94002-08000-0S

$1.49

31

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

31

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

32

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

32

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

33

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

33

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

34

BOLT, FLANGE (8X35)

96300-08035-00

$1.95
