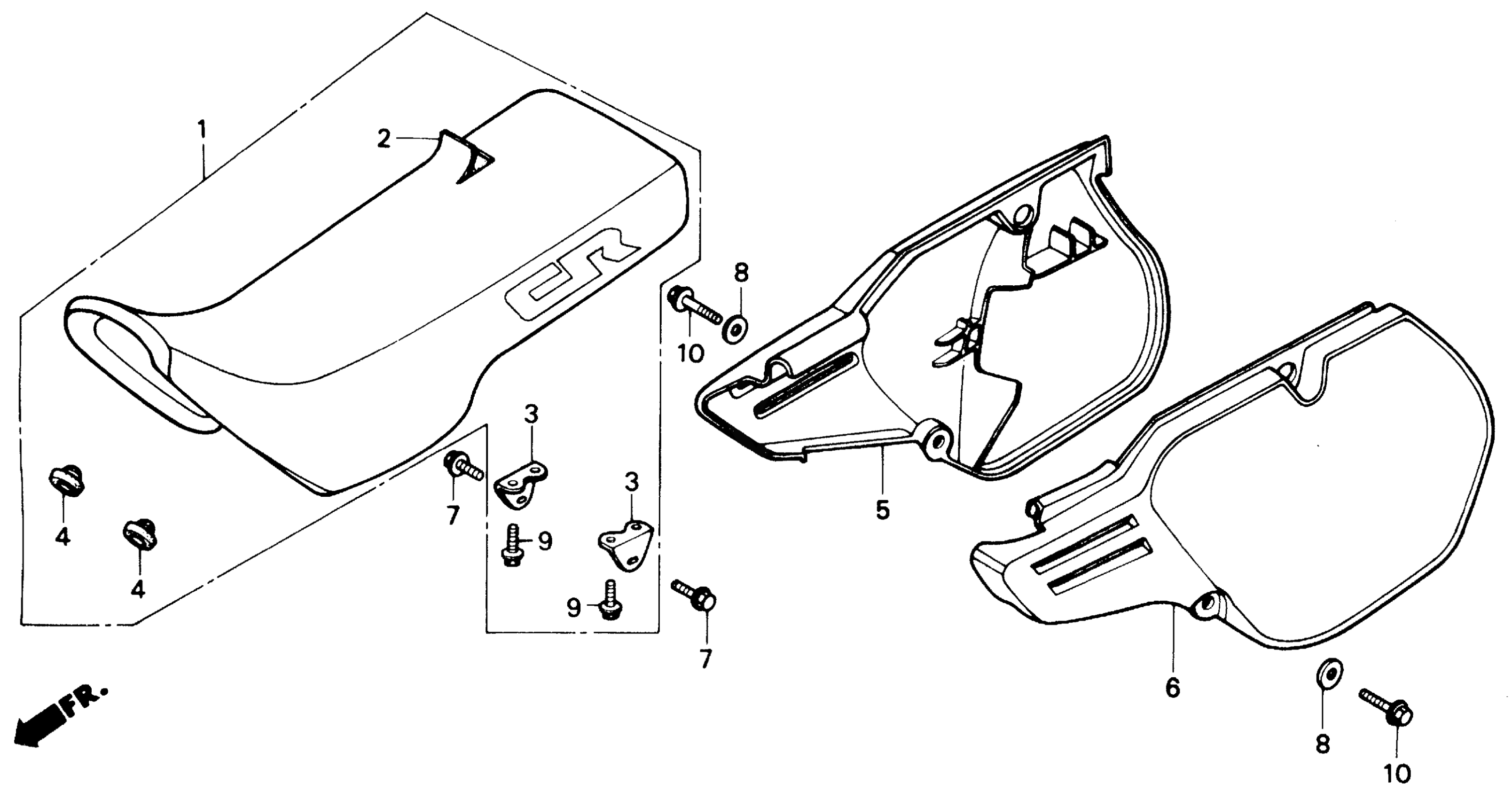

Honda CR500RA (86) MOTORCYCLE, JPN, VIN# JH2PE020-GC500018 TO JH2PE020-GC505028 SEAT 85-86 Diagram

SEAT (122MM) (NOT AVAILABLE)

77100-ML3-670

Unavailable

SEAT (144MM) (NOT AVAILABLE) | (Optional).

77100-ML3-810

Unavailable

COVER, SEAT (NOT AVAILABLE)

77101-ML3-670

Unavailable

COVER, SEAT | (Optional).

77101-ML3-810

Unavailable

STAY, RR. SEAT (NOT AVAILABLE)

77105-KA3-830

Unavailable

RUBBER, SEAT MOUNTING

77110-KA3-730

$5.05

COVER SUB-ASSY., R. SIDE *R119* (TYPE2) (FLASH RED) (NOT AVAILABLE)

83520-ML3-670ZB

Unavailable

COVER SUB-ASSY., L. SIDE *R119* (TYPE2) (FLASH RED) (NOT AVAILABLE)

83620-KS6-000ZB

Unavailable

BOLT, FLANGE (8X20) This part replaces 90133-KA3-730.

96300-08020-00

$1.57

BOLT, FLANGE (8X20)

96300-08020-00

$1.57

BOLT, FLANGE (8X20) This part replaces 96500-08012-00.

96300-08020-00

$1.57

BOLT, FLANGE (8X20) This part replaces 96500-08020-00.

96300-08020-00

$1.57

WASHER, SIDE COVER

90506-KA3-710

Unavailable

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
