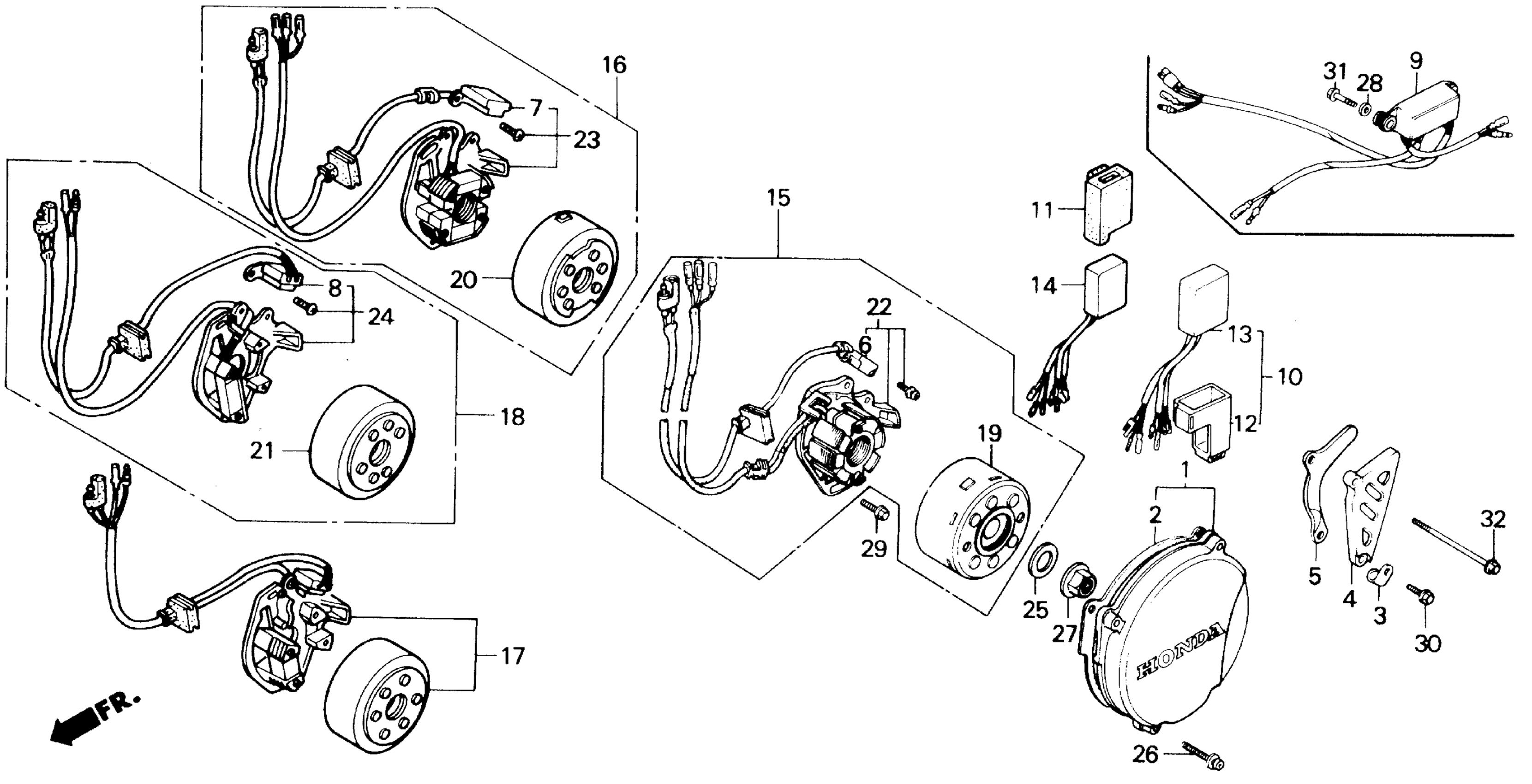

Honda CR500RA (86) MOTORCYCLE, JPN, VIN# JH2PE020-GC500018 TO JH2PE020-GC505028 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER ASSY., L. CRANKCASE This part replaces 11350-ML3-000.

11350-ML3-010

Unavailable

1

COVER ASSY., L. CRANKCASE

11350-ML3-010

Unavailable

2

GASKET, L. COVER

11352-KA5-690

$4.33

3

CLAMP, OVERFLOW PIPE

16236-045-010

$4.49

4

COVER, DRIVE SPROCKET This part replaces 23810-ML3-000.

23810-ML3-010

Unavailable

4

COVER, DRIVE SPROCKET

23810-ML3-010

Unavailable

5

GUIDE, DRIVE CHAIN

23812-KA4-740

$31.14

7

GENERATOR ASSY., PULSE (NOT AVAILABLE)

30300-ML3-000

Unavailable

10

MODULE, IGNITION CONTROL (CDI)

30400-ML3-004

Unavailable

12

SUSPENSION, IGNITION CONTROL MODULE (KOKUSAN) (NOT AVAILABLE) This part replaces 30406-ML3-000.

30406-KS6-701

Unavailable

13

MODULE, IGNITION CONTROL (CDI)

30400-ML3-004

Unavailable

13

MODULE, IGNITION CONTROL (CDI) This part replaces 30410-ML3-000.

30400-ML3-004

Unavailable

16

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-ML3-003

Unavailable

20

FLYWHEEL (NOT AVAILABLE)

31110-ML3-003

Unavailable

23

STATOR (KOKUSAN)

31120-ML3-003

Unavailable

25

WASHER, PLAIN (12MM)

90437-611-000

$4.22

26

SCREW-WASHER (6X28)

93891-06028-07

$1.49

27

NUT, FLANGE (12MM)

94050-12000

$1.49

29

BOLT, FLANGE (6X18)

96300-06018-00

$1.49

30

BOLT, FLANGE (6X32) This part replaces 96000-06032-07.

96001-06032-07

$1.54

30

BOLT, FLANGE (6X32)

96001-06032-07

$1.54

32

BOLT, FLANGE (6X115) This part replaces 90053-ML3-000.

96001-06115-07

$4.13

32

BOLT, FLANGE (6X115)

96001-06115-07

$4.13
