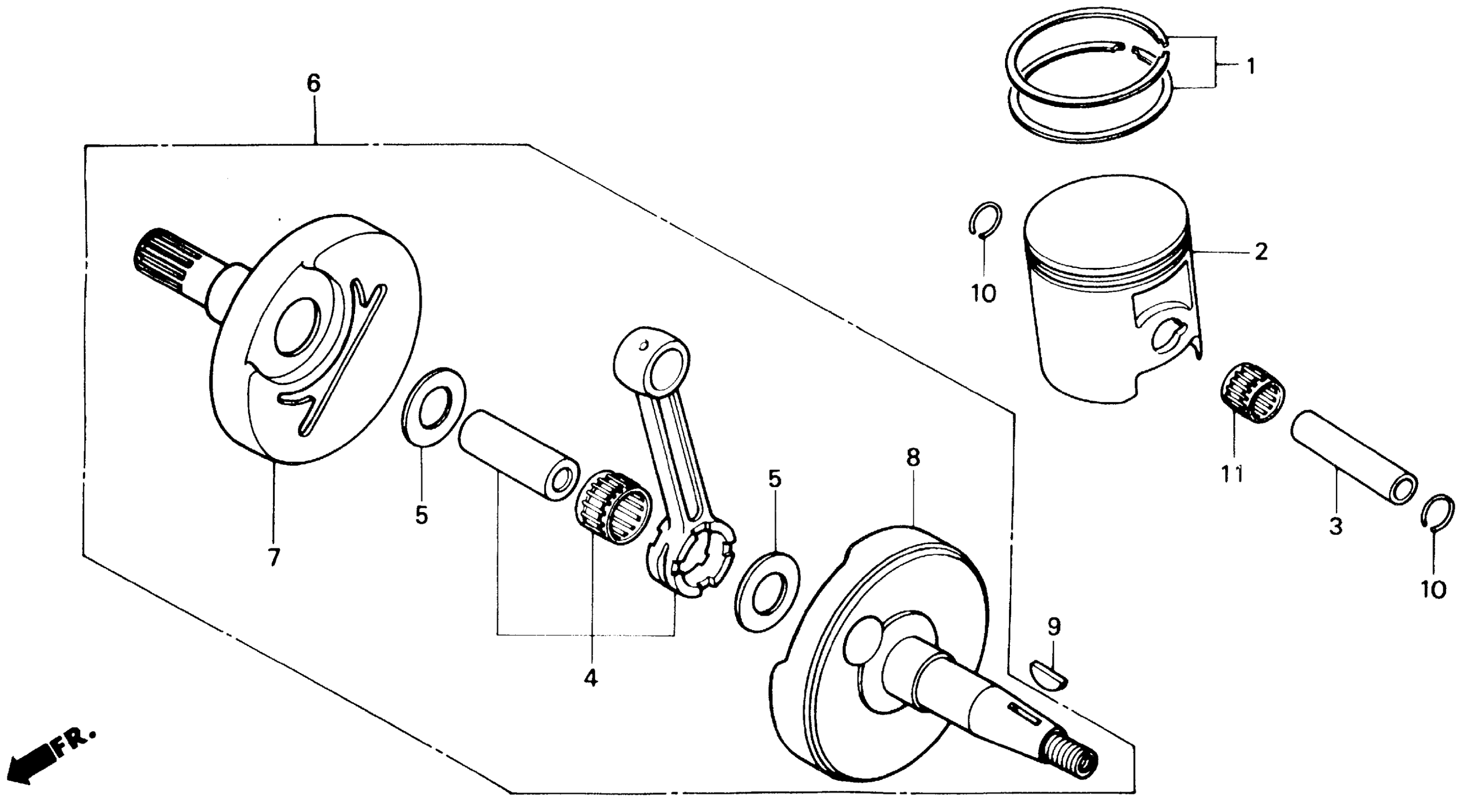

Honda CR500RA (86) MOTORCYCLE, JPN, VIN# JH2PE020-GC500018 TO JH2PE020-GC505028 CRANKSHAFT Diagram

#

Description
Price

1

RING SET, PISTON (STD) This part replaces 130A1-KA5-770.

13011-ML3-305

Unavailable

1

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 130A2-KA5-770.

13012-ML3-305

$75.95

1

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 130A3-KA5-770.

13013-ML3-305

Unavailable

1

RING SET, PISTON (STD)

13011-ML3-305

Unavailable

1

RING SET, PISTON (OS 0.25) | (Optional).

13012-ML3-305

$75.95

1

RING SET, PISTON (OS 0.50) | (Optional).

13013-ML3-305

Unavailable

2

PISTON (OS 0.25) | (Optional). This part replaces 13102-ML3-680.

13102-MAC-680

$157.69

2

PISTON (OS 0.25) | (Optional). This part replaces 13102-ML3-681.

13102-MAC-680

$157.69

2

PISTON

13101-MAC-680

Unavailable

2

PISTON (OS 0.25) | (Optional).

13102-MAC-680

$157.69

2

PISTON (OS 0.50) | (Optional).

13103-MAC-680

Unavailable

2

PISTON This part replaces 13101-ML3-000.

13101-MAC-680

Unavailable

2

PISTON (OS 0.25) | (Optional). This part replaces 13102-ML3-000.

13102-MAC-680

$157.69

2

PISTON (OS 0.50) | (Optional). This part replaces 13103-ML3-000.

13103-MAC-680

Unavailable

3

PIN, PISTON This part replaces 13111-KA5-740.

13111-ML3-680

Unavailable

3

PIN, PISTON

13111-ML3-680

Unavailable

4

ROD SET, CONNECTING

13200-KA5-690

Unavailable

5

PLATE, CONNECTING ROD SIDE

13202-KA5-741

Unavailable

6

CRANKSHAFT (NOT AVAILABLE)

13300-KA5-690

Unavailable

7

CRANKSHAFT, R. (NOT AVAILABLE)

13310-KA5-690

Unavailable

8

CRANKSHAFT, L. (NOT AVAILABLE)

13320-KA5-690

Unavailable

9

KEY, WOODRUFF SPECIAL (25X1)

13331-360-000

$3.47

10

CLIP, PISTON PIN (1.2X20)

90601-KA5-000

$1.49

11

BEARING, CONNECTING ROD SMALL END (TOYO) This part replaces 91007-KA5-003.

91008-ML3-681

$19.68

11

BEARING, CONNECTING ROD SMALL END (TOYO) This part replaces 91008-KA5-003.

91008-ML3-681

$19.68

11

BEARING, CONNECTING ROD SMALL END (TOYO) This part replaces 91008-KA5-004.

91008-ML3-681

$19.68

11

BEARING, CONNECTING ROD SMALL END (TOYO)

91008-ML3-681

$19.68
