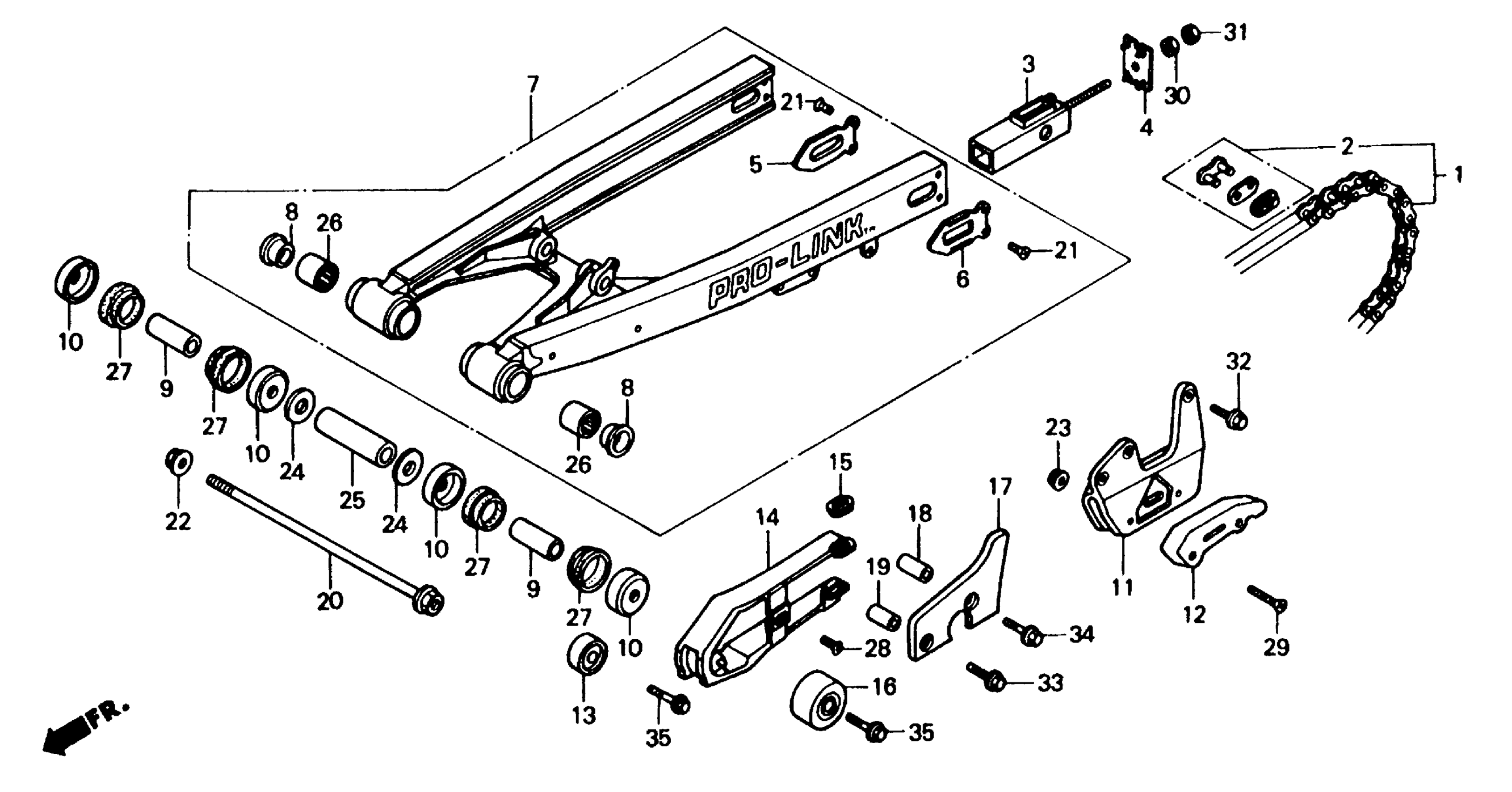

Honda CR500RA (85) MOTORCYCLE, JPN, VIN# JH2PE020-FC400001 TO JH2PE020-FC405329 SWINGARM 85 Diagram

#

Description
Price

1

CHAIN, DRIVE

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE | (Optional).

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-741.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-742.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-743.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KA5-741.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KA5-742.

405W3-KA5-505

Unavailable

2

MASTER LINK (TAKASAGO)

40531-KA4-731

Unavailable

2

MASTER LINK (DAIDO)

40531-KA4-732

Unavailable

3

ADJUSTER, CHAIN

40543-KA3-831

Unavailable

4

RETAINER, CHAIN ADJUSTER (NOT AVAILABLE)

40544-KA3-830

Unavailable

5

WASHER, RR. SWINGARM INSIDE (NOT AVAILABLE)

42307-KA3-830

Unavailable

6

WASHER, SWINGARM (OUTER) (NOT AVAILABLE)

42308-KA3-830

Unavailable

7

SWINGARM ASSY., RR.

52000-KA5-841

Unavailable

8

BUSH, PIVOT THRUST

52109-KA4-701

$16.01

9

COLLAR, RR. SWINGARM (NOT AVAILABLE)

52141-KA3-830

$14.71

10

CAP, DUST SEAL

52144-KA3-731

$14.60

11

GUIDE, CHAIN (NOT AVAILABLE)

52146-KA3-830

Unavailable

12

SLIDER, CHAIN GUIDE (NOT AVAILABLE)

52147-KA3-831

Unavailable

13

ROLLER, CHAIN TENSIONER

52158-KA3-831

$51.10

14

SLIDER, CHAIN

52170-KA3-830

Unavailable

15

WASHER, CHAIN SLIDER

52171-KA3-830

$2.89

16

ROLLER, CHAIN (UPPER)

52175-KA3-831

Unavailable

17

SPLASH GUARD, CHAIN (NOT AVAILABLE)

52180-KA3-830

Unavailable

18

COLLAR, CHAIN SPLASH GUARD

52181-KA3-710

Unavailable

19

COLLAR, CHAIN SPLASH GUARD (NOT AVAILABLE)

52181-KA3-830

Unavailable

20

BOLT, RR. SWINGARM

90117-KA3-831

Unavailable

21

SCREW, FLAT (5X4)

90124-KA3-711

$5.60

21

SCREW, FLAT (5X4) This part replaces 90124-KA3-830.

90124-KA3-711

$5.60

22

NUT, RR. SWINGARM PIVOT

90301-430-000

Unavailable

23

NUT, U (6MM)

90301-473-003

$4.07

24

WASHER (15.2X33) (NOT AVAILABLE)

90412-KA4-830

Unavailable

25

COLLAR (18MM) (NOT AVAILABLE)

90515-KA3-830

Unavailable

26

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$33.10

26

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$33.10

27

DUST SEAL (32X36.8X8) (ARAI)

91253-KA3-731

Unavailable

27

DUST SEAL

91253-KA4-701

$12.86

27

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$12.86

28

SCREW, PAN (5X6)

93500-05006-0H

$1.49

29

SCREW, FLAT (6X40)

93600-06040-0A

$1.49

30

NUT, HEX. (8MM)

94001-08000-0S

$1.49

31

NUT, HEX. (8MM)

94002-08000-0S

$1.49

32

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

32

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

33

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

33

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

34

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

34

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

35

BOLT, FLANGE (8X35)

96300-08035-00

$1.95
