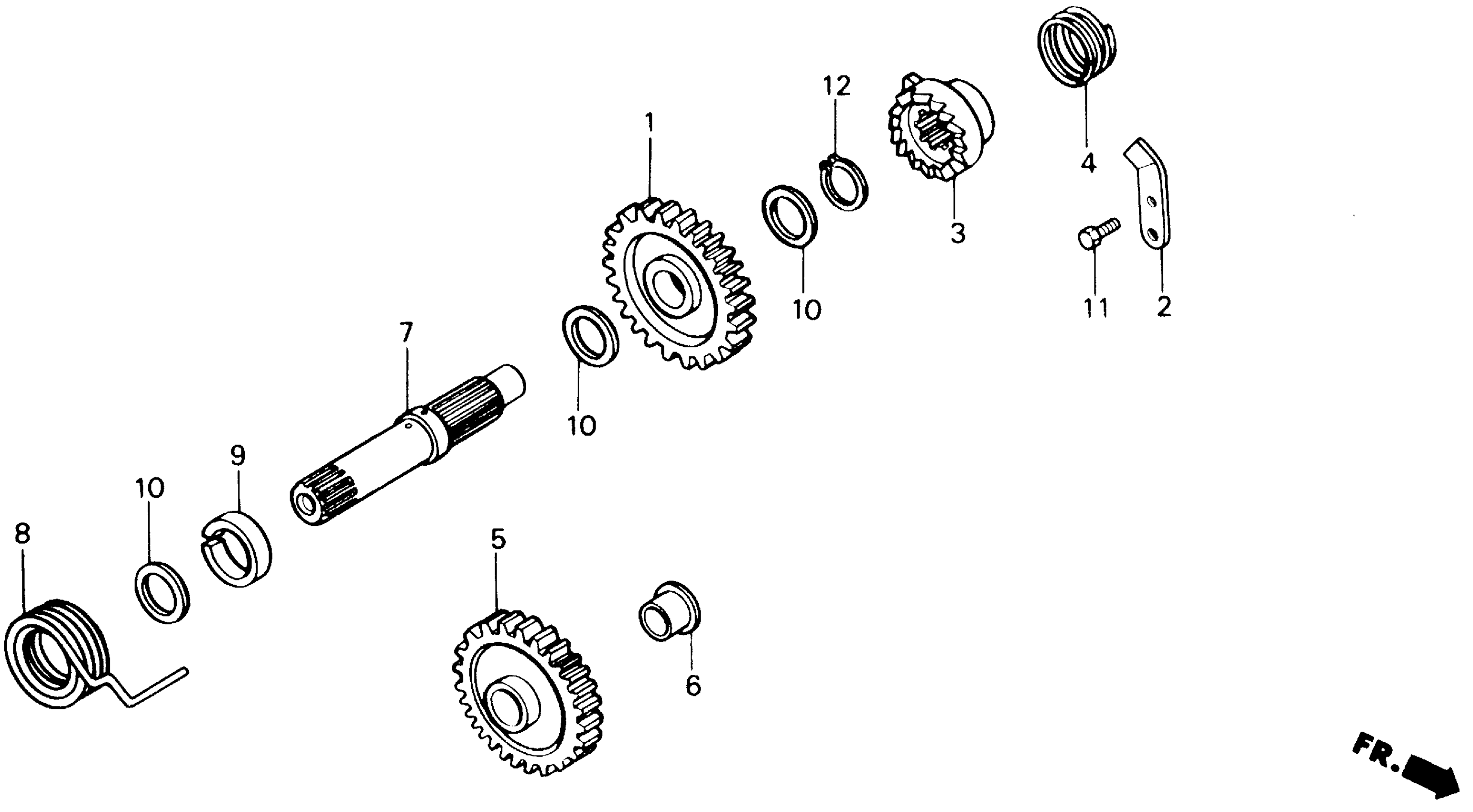

Honda CR500RA (85) MOTORCYCLE, JPN, VIN# JH2PE020-FC400001 TO JH2PE020-FC405329 KICK STARTER SPINDLE Diagram

PINION, ONLY KICK (27T)

28211-KA5-690

Unavailable

PLATE, KICK STOPPER (NOT AVAILABLE)

28215-KA4-740

Unavailable

RATCHET, KICK STARTER

28221-KA4-740

Unavailable

SPRING, KICK STARTER RATCHET

28223-KA4-740

$3.92

GEAR, KICK IDLE (30T)

28231-KA5-690

Unavailable

COLLAR, KICK STARTER IDLE GEAR

28232-KA4-740

$14.10

SPINDLE, KICK STARTER

28251-KA4-740

Unavailable

SPRING, KICK RETURN This part replaces 28261-KA4-740.

28261-KA4-741

$11.22

SPRING, KICK RETURN

28261-KA4-741

$11.22

COLLAR, KICK SPRING

28282-KA4-740

Unavailable

WASHER, THRUST (27X20X1.0)

90554-728-940

$6.07

BOLT, HEX. (6X16) This part replaces 93300-06016-0A.

93301-06016-0A

$1.49

BOLT, HEX. (6X16)

93301-06016-0A

$1.49

CIRCLIP (OUTER) (19MM)

94510-19000

$1.49
