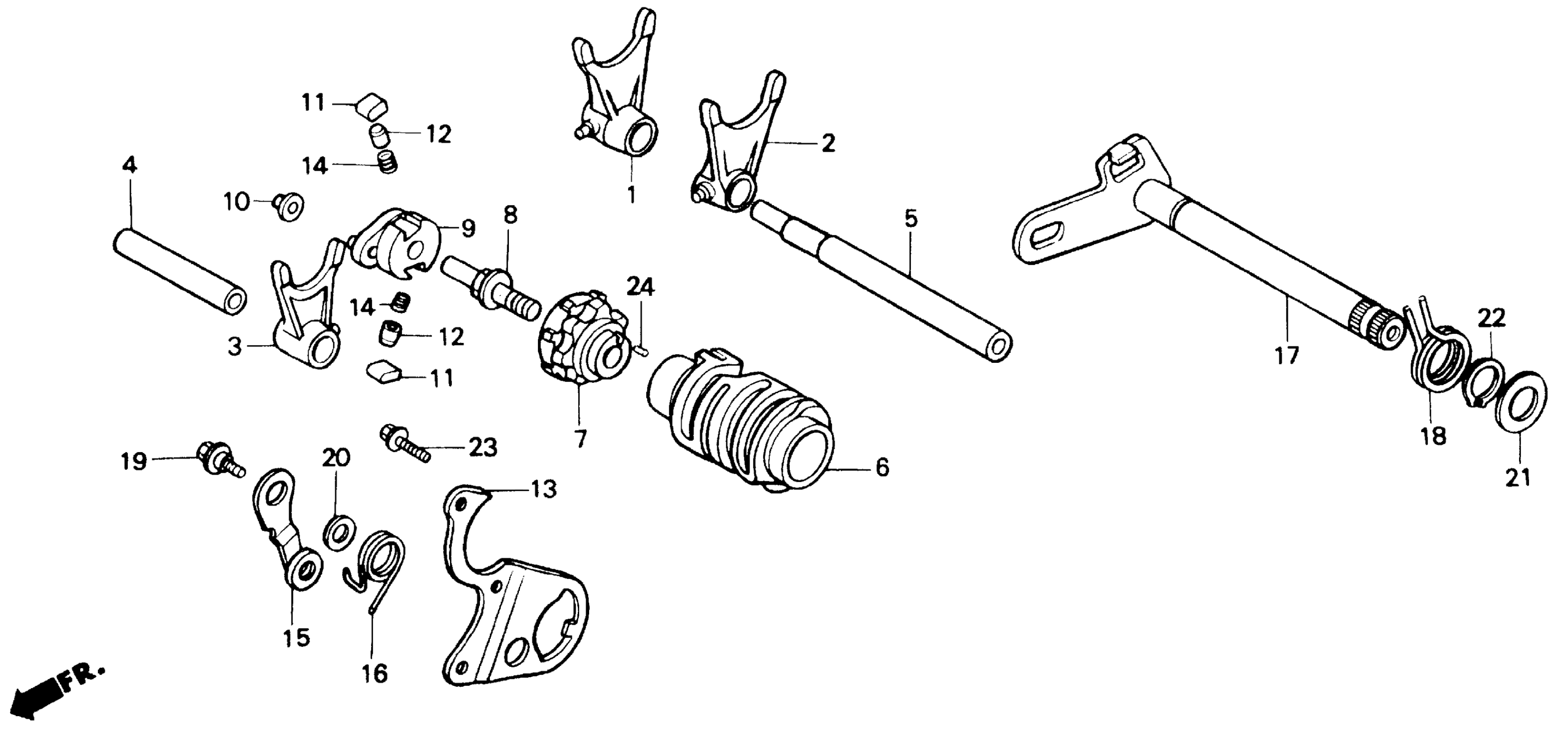

Honda CR500RA (85) MOTORCYCLE, JPN, VIN# JH2PE020-FC400001 TO JH2PE020-FC405329 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-KA5-690

Unavailable

2

FORK, L. GEARSHIFT

24221-KA5-690

Unavailable

3

FORK, CENTER GEARSHIFT This part replaces 24231-KA5-690.

24231-KA5-691

Unavailable

3

FORK, CENTER GEARSHIFT

24231-KA5-691

Unavailable

4

SHAFT, SHIFT FORK

24265-KA4-740

Unavailable

5

SHAFT, SHIFT FORK (C)

24266-KA4-770

Unavailable

6

DRUM, GEARSHIFT This part replaces 24311-KA4-740.

24311-KSK-730

Unavailable

6

DRUM, GEARSHIFT

24311-KSK-730

Unavailable

6

DRUM, GEARSHIFT This part replaces 24311-ML3-000.

24311-KSK-730

Unavailable

7

CENTER, SHIFT DRUM

24312-KA3-741

$64.75

8

PIN, SHIFTER

24315-KA3-710

$21.03

9

SHIFTER, DRUM

24320-GC4-730

Unavailable

10

COLLAR, SHIFTER This part replaces 24322-KA3-740.

24322-HA0-000

$5.49

10

COLLAR, SHIFTER

24322-HA0-000

$5.49

11

PAWL, RATCHET

24324-KA3-740

Unavailable

12

PLUNGER, PAWL This part replaces 24326-360-000.

24326-360-010

$5.19

12

PLUNGER, PAWL

24326-360-010

$5.19

13

PLATE, GUIDE

24328-KA5-690

Unavailable

14

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

15

STOPPER, DRUM

24430-KA3-740

$21.88

16

SPRING, SHIFT DRUM STOPPER

24435-KA4-740

Unavailable

17

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-KA4-770

Unavailable

18

SPRING, GEARSHIFT RETURN

24651-KA4-740

Unavailable

19

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

19

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

20

WASHER, DRUM STOPPER

90417-360-000

$1.74

21

WASHER B, THRUST (14MM)

90428-958-000

$4.66

22

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

23

BOLT, FLANGE (6X16)

96300-06016-00

$1.49

24

ROLLER (4X8)

96220-40080

$1.49
