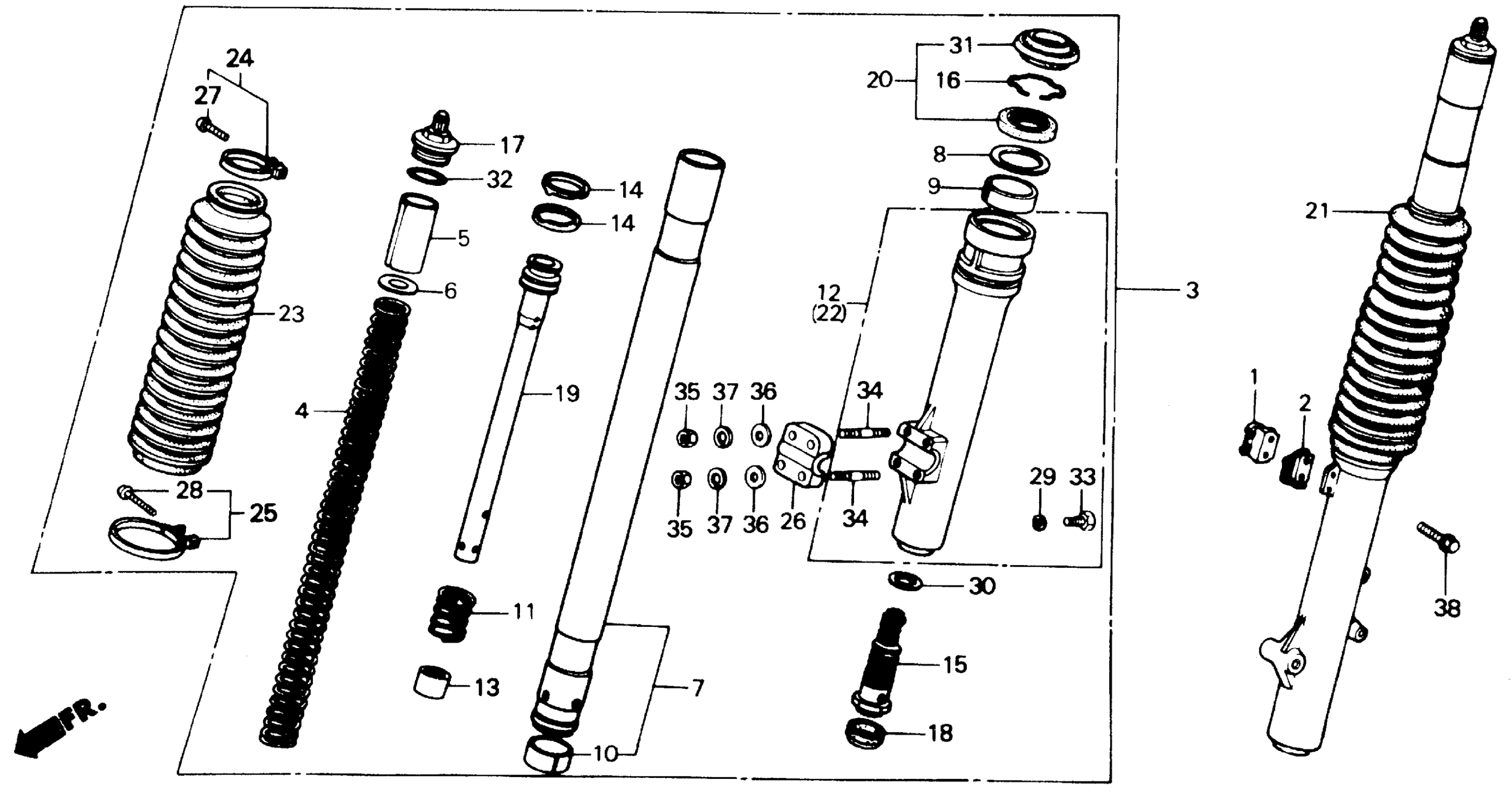

Honda CR500RA (85) MOTORCYCLE, JPN, VIN# JH2PE020-FC400001 TO JH2PE020-FC405329 FRONT FORK 84-85 Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE CABLE

45461-KA3-710

$10.40

2

CLAMP B, FR. BRAKE CABLE

45462-KA3-710

$4.94

3

FORK ASSY., R. FR.

51400-KA5-841

Unavailable

4

SPRING, FR. FORK (0.35GMM) (4 GROOVE) (SHOWA) (NOT AVAILABLE) | (Optional).

51401-KA4-831

Unavailable

4

SPRING, FR. FORK (0.37KG/MM) (6-GROOVE) (SHOWA)

51401-KA5-841

Unavailable

4

SPRING, FR. FORK (0.39KGMM) (7-GRV) (SHOWA) (NOT AVAILABLE) | (Optional).

51403-KA5-841

Unavailable

5

SPACER, SPRING (SHOWA)

51404-KA4-831

Unavailable

6

SEAT, SPRING

51405-KA4-711

$6.23

7

PIPE, FR. FORK (SHOWA) (NOT AVAILABLE)

51410-KA4-831

Unavailable

8

RING, BACK-UP

51412-KA4-711

$9.65

9

BUSH, GUIDE

51414-MAZ-751

$7.14

9

BUSH, GUIDE This part replaces 51414-MG7-003.

51414-MAZ-751

$7.14

9

BUSH, GUIDE This part replaces 51414-MN1-671.

51414-MAZ-751

$7.14

10

BUSH, SLIDER

51415-MN1-671

$15.97

10

BUSH, SLIDER This part replaces 51415-KA4-831.

51415-MN1-671

$15.97

11

SPRING, FR. REBOUND (3.5KGMM) (SHOWA)

51416-KA4-831

$14.15

12

CASE, R. (LOWER) (SHOWA) (NOT AVAILABLE)

51420-KA4-831

Unavailable

13

PIECE, OIL LOCK (SHOWA)

51432-KA4-831

Unavailable

14

RING, PISTON (SHOWA) (NOT AVAILABLE)

51437-KA4-831

Unavailable

15

BOLT, CENTER (SHOWA)

51441-KA4-831

Unavailable

16

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

17

BOLT ASSY., FR. FORK (SHOWA) (NOT AVAILABLE) This part replaces 51450-KA4-831.

51450-KA4-711

Unavailable

18

CAP, FR. FORK (SHOWA)

51461-KA4-831

$4.48

19

PIPE, SEAT (SHOWA)

51470-KA4-831

Unavailable

20

SEAL SET, FR. FORK (SHOWA)

51490-KA4-831

$30.52

21

FORK ASSY., L. FR.

51500-KA5-841

Unavailable

22

CASE, L. (LOWER) (SHOWA) (NOT AVAILABLE)

51520-KA4-831

Unavailable

23

BOOT, FR. FORK (SHOWA)

51611-KA4-831

$55.90

24

BAND, BOOT (UPPER) (SHOWA)

51612-KA4-831

$10.67

25

BAND, BOOT (LOWER) (SHOWA) This part replaces 51613-KA4-711.

51613-MK2-003

$8.78

25

BAND, BOOT (LOWER)

51613-MK2-003

$8.78

26

HOLDER, AXLE (SHOWA)

51634-KA4-831

$32.28

26

HOLDER, AXLE

51634-MV1-003

Unavailable

27

SCREW, PAN (3.5X15) (NOT AVAILABLE)

90202-KA4-711

Unavailable

28

SCREW, PAN (3.5X25)

90202-MK2-003

$4.53

28

SCREW, PAN (3.5X25) This part replaces 90203-KA4-711.

90202-MK2-003

$4.53

29

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

30

WASHER, SPECIAL (NOT AVAILABLE)

90544-KA4-831

Unavailable

31

DUST SEAL, FR. FORK

91254-KA4-831

$16.28

32

O-RING (35.2X2.4)

91356-KA4-711

$3.76

33

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

33

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

34

BOLT, STUD (6X28) This part replaces 90038-250-000.

92900-06028-0B

$1.89

34

BOLT, STUD (6X28) This part replaces 90051-200-000.

92900-06028-0B

$1.89

34

BOLT, STUD (6X28) This part replaces 92700-06035-0B.

92900-06028-0B

$1.89

34

BOLT, STUD (6X28) This part replaces 92700-06040.

92900-06028-0B

$1.89

34

BOLT, STUD (6X28) This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

34

BOLT, STUD (6X28)

92900-06028-0B

$1.89

34

BOLT, STUD (6X28) This part replaces 92900-06028-08.

92900-06028-0B

$1.89

35

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM)

94001-06200-0S

$1.49

36

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

36

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

36

WASHER, PLAIN (6MM)

94101-06800

$1.49

37

WASHER, SPRING (6MM)

94111-06000

$1.49

38

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

38

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
