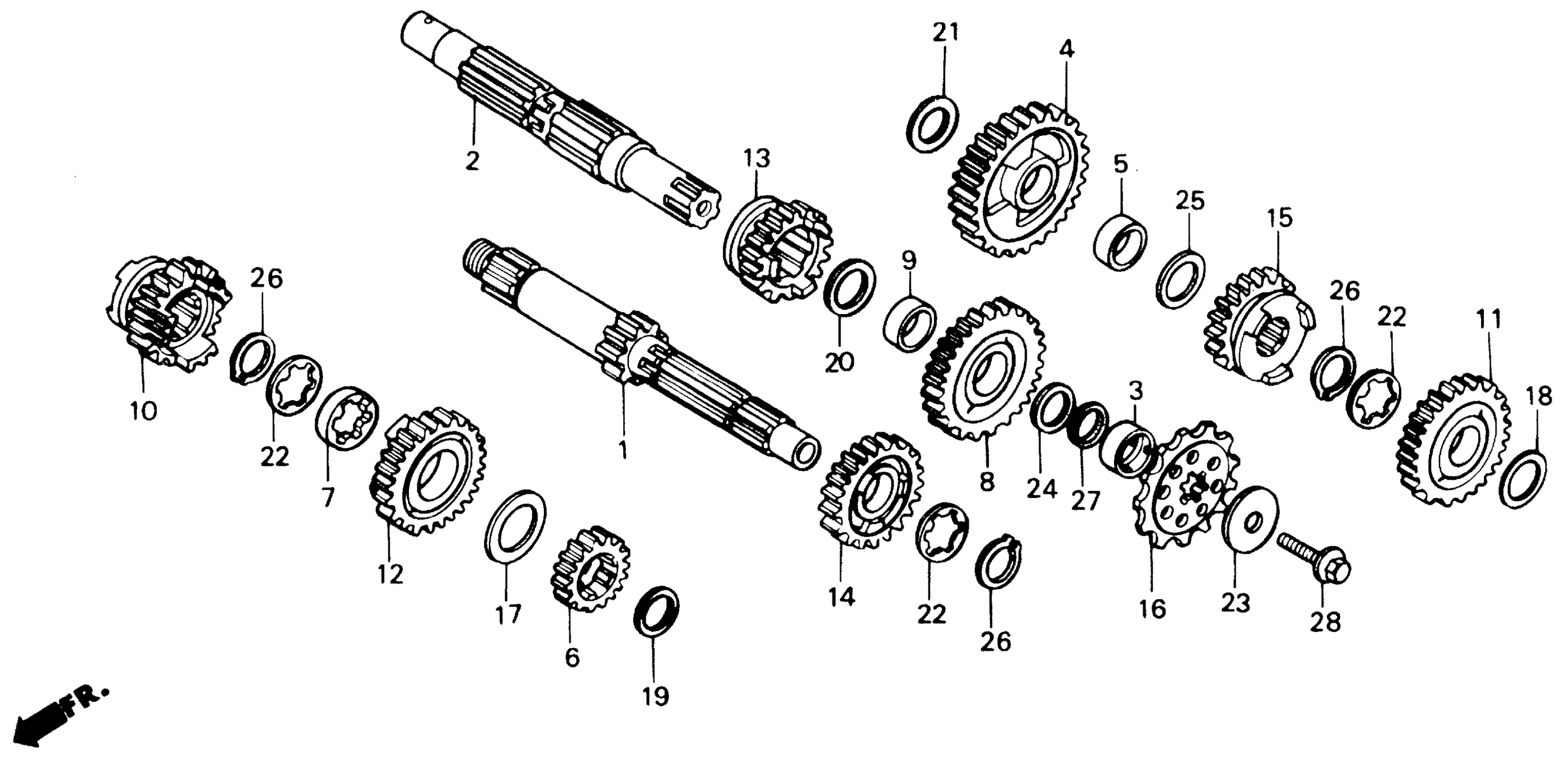

Honda CR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE020-EC300021 TO JH2PE020-EC305695 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (NOT AVAILABLE)

23210-KA5-740

Unavailable

2

COUNTERSHAFT (NOT AVAILABLE)

23221-KA5-740

Unavailable

3

COLLAR, COUNTERSHAFT (22MM)

23225-430-000

Unavailable

4

GEAR, COUNTERSHAFT LOW (28T) (NOT AVAILABLE)

23411-KA5-740

Unavailable

5

COLLAR, COUNTERSHAFT LOW GEAR

23412-KA5-680

Unavailable

6

GEAR, MAINSHAFT SECOND (18T) This part replaces 23421-KA5-740.

23421-ML3-000

Unavailable

6

GEAR, MAINSHAFT SECOND (18T)

23421-ML3-000

Unavailable

7

COLLAR, MAINSHAFT SECOND GEAR

23422-KA5-000

Unavailable

8

GEAR, COUNTERSHAFT SECOND (25T) (NOT AVAILABLE)

23431-KA5-740

Unavailable

9

COLLAR, COUNTERSHAFT SECOND GEAR

23432-KA4-740

Unavailable

10

GEAR, MAINSHAFT THIRD (20T) (NOT AVAILABLE)

23441-KA5-740

Unavailable

11

GEAR, COUNTERSHAFT THIRD (23T) (NOT AVAILABLE)

23451-KA5-740

Unavailable

12

GEAR, MAINSHAFT FOURTH (22T) (NOT AVAILABLE)

23461-KA5-740

Unavailable

13

GEAR, COUNTERSHAFT FOURTH (21T) (NOT AVAILABLE)

23471-KA5-740

Unavailable

14

GEAR, MAINSHAFT FIFTH (24T) (NOT AVAILABLE) This part replaces 23481-KA5-740.

23481-KA5-690

Unavailable

15

GEAR, COUNTERSHAFT FIFTH (19T) (NOT AVAILABLE)

23491-KA5-740

Unavailable

16

SPROCKET, DRIVE (14T) This part replaces 23802-KA4-740.

23802-467-000

Unavailable

16

SPROCKET, DRIVE (14T)

23802-467-000

Unavailable

17

WASHER, THRUST (25MM)

90421-961-000

$5.58

18

WASHER, THRUST (25.2X30)

90444-430-000

$3.78

19

WASHER, THRUST (17.2MM)

90446-KA4-740

$5.94

20

WASHER, THRUST (24.2X34)

90446-KA5-680

Unavailable

21

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

22

WASHER, SPLINE (25MM)

90463-430-000

$5.89

23

WASHER, SPRING (8X40) This part replaces 90501-KA3-741.

90501-HB9-003

$4.40

24

WASHER B, THRUST (22MM)

90455-ML7-000

$4.85

24

WASHER B, THRUST (22MM) (BLUE) This part replaces 90502-360-000.

90455-ML7-000

$4.85

25

WASHER, THRUST (19MM)

90554-KA5-680

$4.37

26

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

27

O-RING (22X1.5)

91201-430-003

$2.94

28

BOLT, FLANGE (8X20) This part replaces 95700-08020-07.

95701-08020-07

$1.87

28

BOLT, FLANGE (8X20)

95701-08020-07

$1.87
