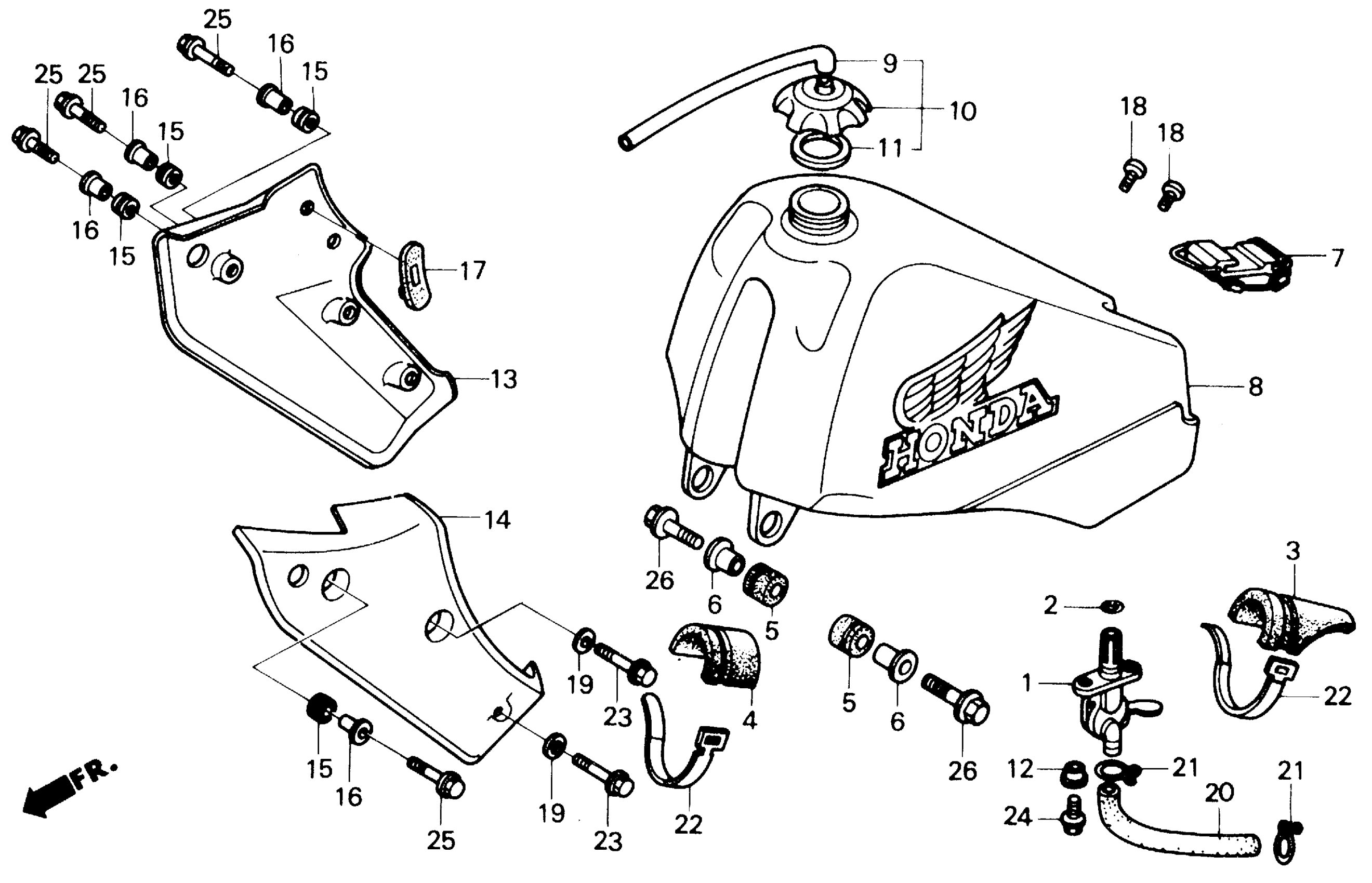

Honda CR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE020-EC300021 TO JH2PE020-EC305695 FUEL TANK 84 Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-KA3-730.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-731.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-732.

16950-ML3-911

$51.08

1

PETCOCK ASSY.

16950-ML3-911

$51.08

2

O-RING (11.8X3.55)

16997-467-000

$2.11

3

RUBBER A, FUEL TANK SETTING | Use up to Frame SN EC300535 This part replaces 17504-KA3-730.

17504-KA3-731

Unavailable

3

RUBBER A, FUEL TANK SETTING

17504-KA3-731

Unavailable

4

RUBBER B, FUEL TANK SETTING | Use up to Frame SN EC300535 This part replaces 17506-KA3-730.

17506-KA3-731

Unavailable

4

RUBBER B, FUEL TANK SETTING

17506-KA3-731

Unavailable

5

RUBBER, FUEL TANK SETTING

17508-KA3-710

$8.75

6

COLLAR, FUEL TANK SETTING

17509-KA3-710

$11.54

7

BAND, RR. FUEL TANK MOUNT (NOT AVAILABLE)

17516-KA3-710

Unavailable

8

TANK SUB-ASSY., FUEL *R119* (FLASH RED) (NOT AVAILABLE)

17520-KA5-740ZA

Unavailable

9

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

10

CAP ASSY., FUEL TANK This part replaces 17620-KA3-730.

17620-ML3-840

Unavailable

10

CAP ASSY., FUEL TANK

17620-ML3-840

Unavailable

11

GASKET, FUEL TANK CAP

17624-KA4-000

$5.94

12

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

13

GUIDE, R. ENGINE AIR (NOT AVAILABLE)

19030-KA5-740

Unavailable

14

GUIDE, L. ENGINE AIR (NOT AVAILABLE)

19035-KA5-740

Unavailable

15

RUBBER, AIR GUIDE

19042-KA5-740

Unavailable

16

COLLAR, AIR GUIDE

19043-KA5-740

Unavailable

17

RUBBER, FR. AIR GUIDE (NOT AVAILABLE)

19044-KA5-740

Unavailable

18

SCREW, TRUSS (M6X16) This part replaces 90110-KA3-710.

90131-S0X-A00

$1.49

18

SCREW, TRUSS (M6X16) This part replaces 90110-KA3-830.

90131-S0X-A00

$1.49

18

SCREW, TRUSS (M6X16)

90131-S0X-A00

$1.49

19

WASHER, SIDE COVER

90506-KA3-710

Unavailable

20

BULK HOSE, FUEL (7.5X8000) (7.3X130)

95001-75008-60M

$103.82

21

CLIP, TUBE (B12)

95002-02120

$2.00

22

BAND A3, CABLE

95014-61300

$1.97

23

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

23

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

24

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

24

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

25

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

25

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

26

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

26

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
