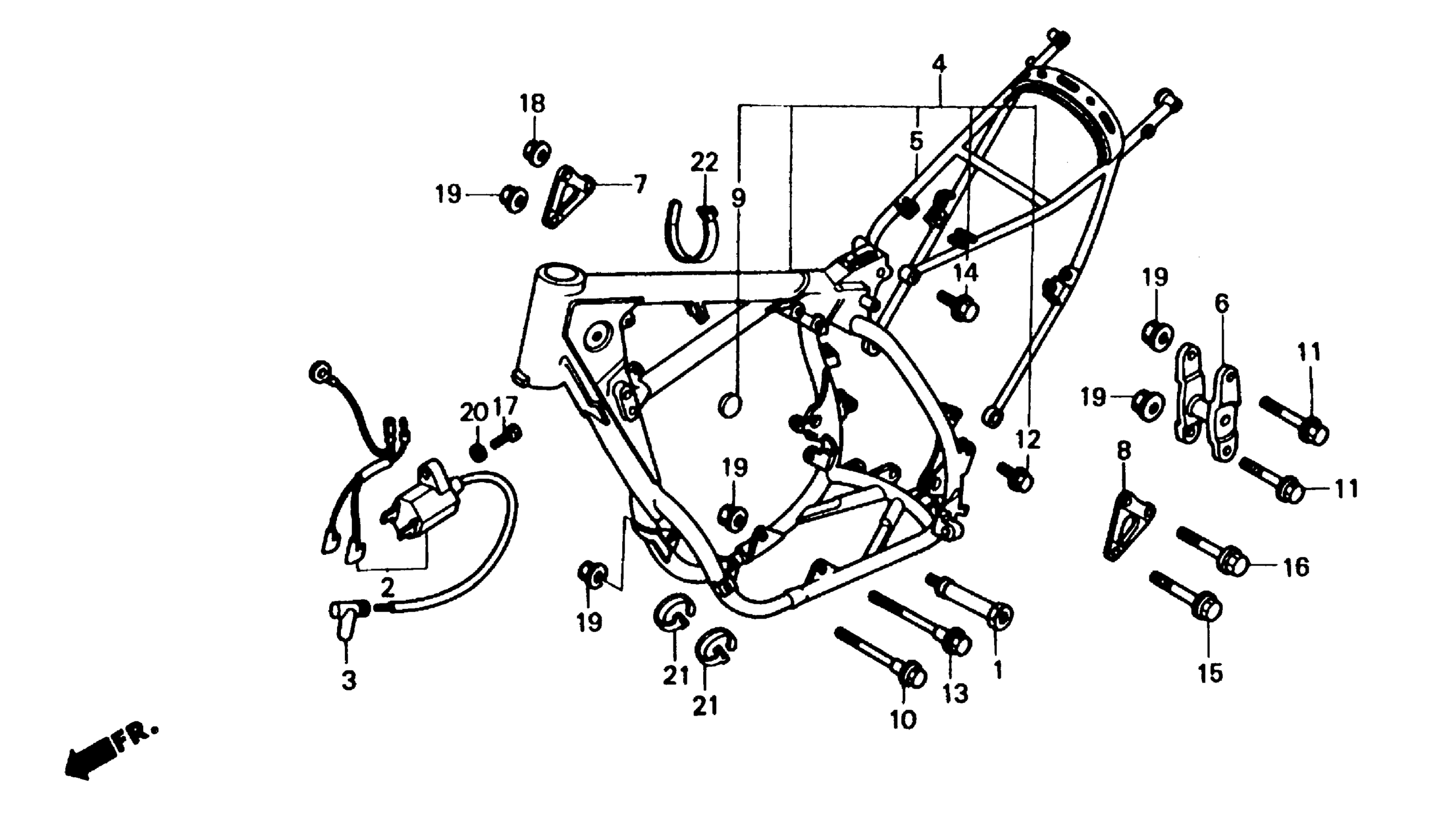

Honda CR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE020-EC300021 TO JH2PE020-EC305695 FRAME 84 Diagram

STAY, AIR GUIDE (NOT AVAILABLE)

19041-KA5-740

Unavailable

COIL, IGNITION (NOT AVAILABLE)

30500-KA5-740

Unavailable

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-KA5-700.

30700-KA5-771

$31.04

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-KA5-770.

30700-KA5-771

$31.04

CAP ASSY., NOISE SUPPRESSOR

30700-KA5-771

$31.04

FRAME *R119* (FLASH RED)

50100-KA5-741ZA

Unavailable

FRAME, RR. *R119* (FLASH RED) (NOT AVAILABLE)

50140-KA3-730ZA

Unavailable

BRACKET, RR. ENGINE HANGER

50354-KA4-730

Unavailable

BRACKET, R. HEAD HANGER (NOT AVAILABLE)

50403-KA5-740

Unavailable

BRACKET, L. HEAD HANGER

50404-KA5-740

Unavailable

SEAL, HOLE SETTING (24MM)

87150-KA3-730

Unavailable

BOLT, FLANGE (10X85) This part replaces 90018-KA5-740.

90111-KL8-710

Unavailable

BOLT, FLANGE (10X85) This part replaces 90108-KE5-000.

90111-KL8-710

Unavailable

BOLT, FLANGE (10X85)

90111-KL8-710

Unavailable

BOLT, FLANGE (10X90) (NOT AVAILABLE)

90107-KA4-730

Unavailable

BOLT, JOINT (8X21.5)

90108-KA3-730

Unavailable

BOLT, FLANGE (10X114)

90105-GJ1-000

Unavailable

BOLT, FLANGE (10X114) This part replaces 90115-KA4-730.

90105-GJ1-000

Unavailable

BOLT, FLANGE (8X37)

90118-KA3-730

Unavailable

BOLT, FLANGE (10X53) This part replaces 90131-KA4-730.

90112-GK4-000

$4.45

BOLT, FLANGE (10X53) This part replaces 90131-ML3-910.

90112-GK4-000

$4.45

BOLT, FLANGE (8X60)

90135-KA4-730

Unavailable

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

NUT, FLANGE (8MM)

94050-08080

$1.49

NUT, FLANGE (10MM)

94050-10080

$3.24

WASHER, PLAIN (5MM)

94101-05000

$1.49

BAND B1, CABLE

32161-404-000

$2.23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

BAND A3, CABLE

95014-61300

$1.97
