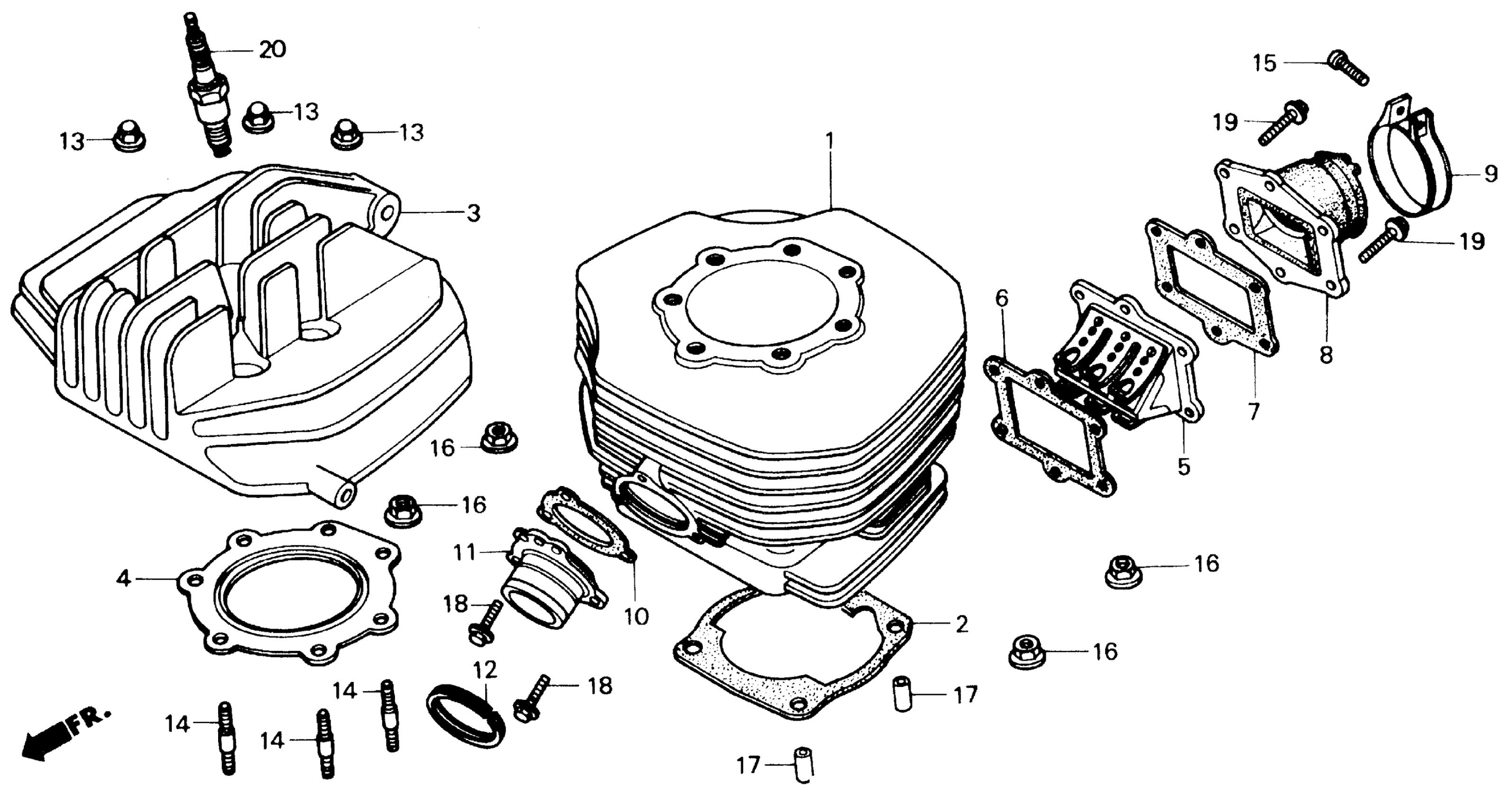

Honda CR500RA (84) MOTORCYCLE, JPN, VIN# JH2PE020-EC300021 TO JH2PE020-EC305695 CYLINDER 84 Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-KA5-740

Unavailable

2

GASKET, CYLINDER This part replaces 12191-KA5-740.

12191-MAC-680

$14.82

2

GASKET, CYLINDER

12191-MAC-680

$14.82

2

GASKET, CYLINDER This part replaces 12191-ML3-680.

12191-MAC-680

$14.82

2

GASKET, CYLINDER This part replaces 12191-ML3-790.

12191-MAC-680

$14.82

3

CYLINDER HEAD (NOT AVAILABLE)

12200-KA5-740

Unavailable

4

GASKET, CYLINDER HEAD

12254-KA5-770

Unavailable

5

VALVE ASSY., REED (NOT AVAILABLE)

14100-KA5-741

Unavailable

6

GASKET A, REED VALVE

14132-KA5-306

$4.63

6

GASKET A, REED VALVE This part replaces 14132-KA5-740.

14132-KA5-306

$4.63

7

GASKET B, REED VALVE

14133-KA5-306

Unavailable

7

GASKET B, REED VALVE This part replaces 14133-KA5-740.

14133-KA5-306

Unavailable

8

INSULATOR, CARBURETOR (NOT AVAILABLE)

16221-KA5-740

Unavailable

9

BAND, INSULATOR

16223-KA4-740

Unavailable

10

GASKET, EX. FLANGE This part replaces 18291-KA5-740.

18291-KA5-307

Unavailable

11

JOINT, EX. PIPE (NOT AVAILABLE)

18351-KA5-740

Unavailable

12

SEAL, EX. JOINT (NOT AVAILABLE)

18359-KA5-740

Unavailable

13

NUT, CAP (8MM)

90443-107-000

$2.89

14

BOLT, STUD (8X60) This part replaces 92700-08060-3E.

92900-08040-3E

Unavailable

14

BOLT, STUD (8X60)

92900-08040-3E

Unavailable

15

SCREW, PAN (5X20)

93500-05020-0A

$1.49

16

NUT, FLANGE (10MM)

94050-10000

$1.59

17

PIN A, DOWEL (12X20)

94301-12200

$2.29

18

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

18

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

19

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

19

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

20

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58649.

98079-58679

$5.80

20

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58649-00.

98079-58679

$5.80

20

SPARK PLUG (W24ESR-V) (DENSO)

98079-58659

$2.54

20

SPARK PLUG (BR8EG) (NGK) This part replaces 98079-58669.

98079-58679

$5.80

20

SPARK PLUG (BR8EG) (NGK)

98079-58679

$5.80
