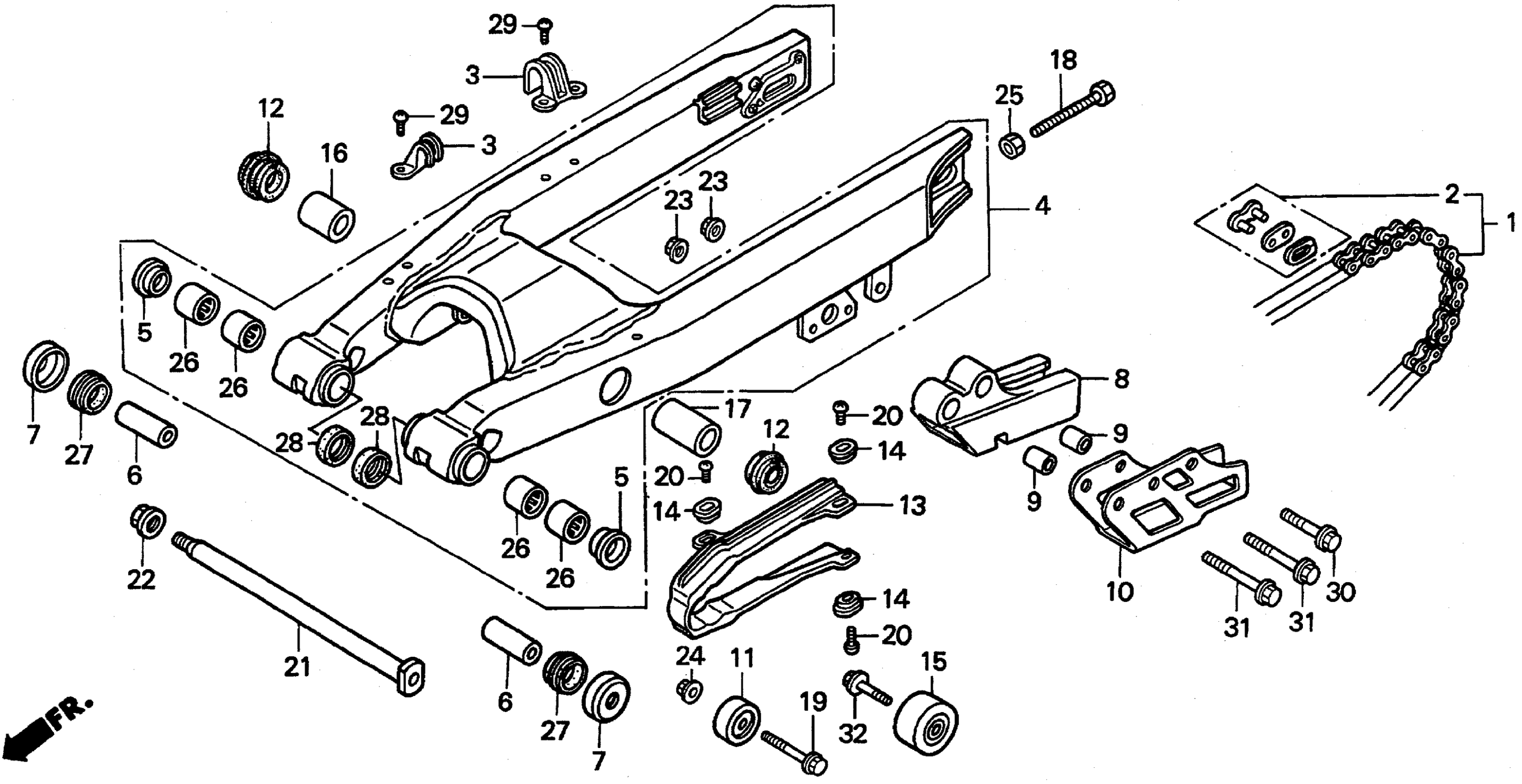

Honda CR500RA (01) MOTORCYCLE, JPN, VIN# JH2PE023-1M000001 SWINGARM Diagram

#

Description
Price

1

CHAIN, DRIVE This part replaces 40530-KA4-732.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE (RK520KZ6-RJ) (114L) (RK EXCEL)

40530-KZ3-B02

Unavailable

1

CHAIN, DRIVE (RK520KZ6-RJ) (114L) (RK EXCEL) This part replaces 40530-MAC-682.

40530-KZ3-B02

Unavailable

2

MASTER LINK (RK EXCEL)

40531-KA4-731

Unavailable

2

MASTER LINK (DAIDO) (NOT AVAILABLE)

40531-KA4-732

Unavailable

2

MASTER LINK (TAKASAGO) This part replaces 40531-MAC-682.

40531-KA4-731

Unavailable

3

GUIDE, RR. BRAKE HOSE

43468-KS6-700

$11.31

4

SWINGARM ASSY.

52100-MAC-670

Unavailable

5

BUSH, PIVOT THRUST

52109-KS7-830

Unavailable

6

COLLAR, SWINGARM

52141-KS7-830

Unavailable

7

CAP, DUST SEAL

52144-KS7-831

Unavailable

8

GUIDE, CHAIN

52146-ML3-911

$29.04

9

COLLAR, CHAIN GUIDE

52148-MAC-780

$6.28

10

PLATE, CHAIN GUIDE

52156-ML3-910

$58.87

11

ROLLER, CHAIN TENSIONER

52158-KA3-831

$51.10

12

CAP, SWINGARM

52161-KS7-831

$5.04

13

SLIDER, CHAIN

52170-KZ3-701

$75.02

14

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

15

ROLLER, CHAIN (UPPER)

52175-KA3-831

Unavailable

16

COLLAR, R. LINK PIVOT (NOT AVAILABLE)

52191-KZ4-890

Unavailable

17

COLLAR, L. LINK PIVOT

52192-KZ4-890

Unavailable

18

BOLT, HEX. (8X49)

90106-KS6-700

$5.69

19

BOLT, FLANGE (8X62)

90113-HB3-000

Unavailable

20

SCREW, PAN (5X8)

90115-KV3-700

$2.61

21

BOLT, SWINGARM

90117-KS7-831

$53.97

22

NUT, SWINGARM PIVOT

90301-KS7-830

$11.52

23

NUT, U (6MM)

90301-473-003

$4.07

24

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

24

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

25

NUT, HEX. (8MM)

90309-357-000

$3.40

26

BEARING, NEEDLE (22X28X20)

91071-KS7-831

Unavailable

27

DUST SEAL (34X38.8X8)

91253-KS7-831

Unavailable

28

DUST SEAL (22X28X5)

91254-KS7-831

$8.66

29

SCREW, PAN (5X8)

93500-05008-0A

$1.49

30

BOLT, FLANGE (6X12)

96300-06012-00

$1.49

30

BOLT, FLANGE (6X12) This part replaces 96400-06012-00.

96300-06012-00

$1.49

31

BOLT, FLANGE (6X50)

96400-06050-00

$2.23

32

BOLT, FLANGE (8X35)

96400-08035-00

$1.51
