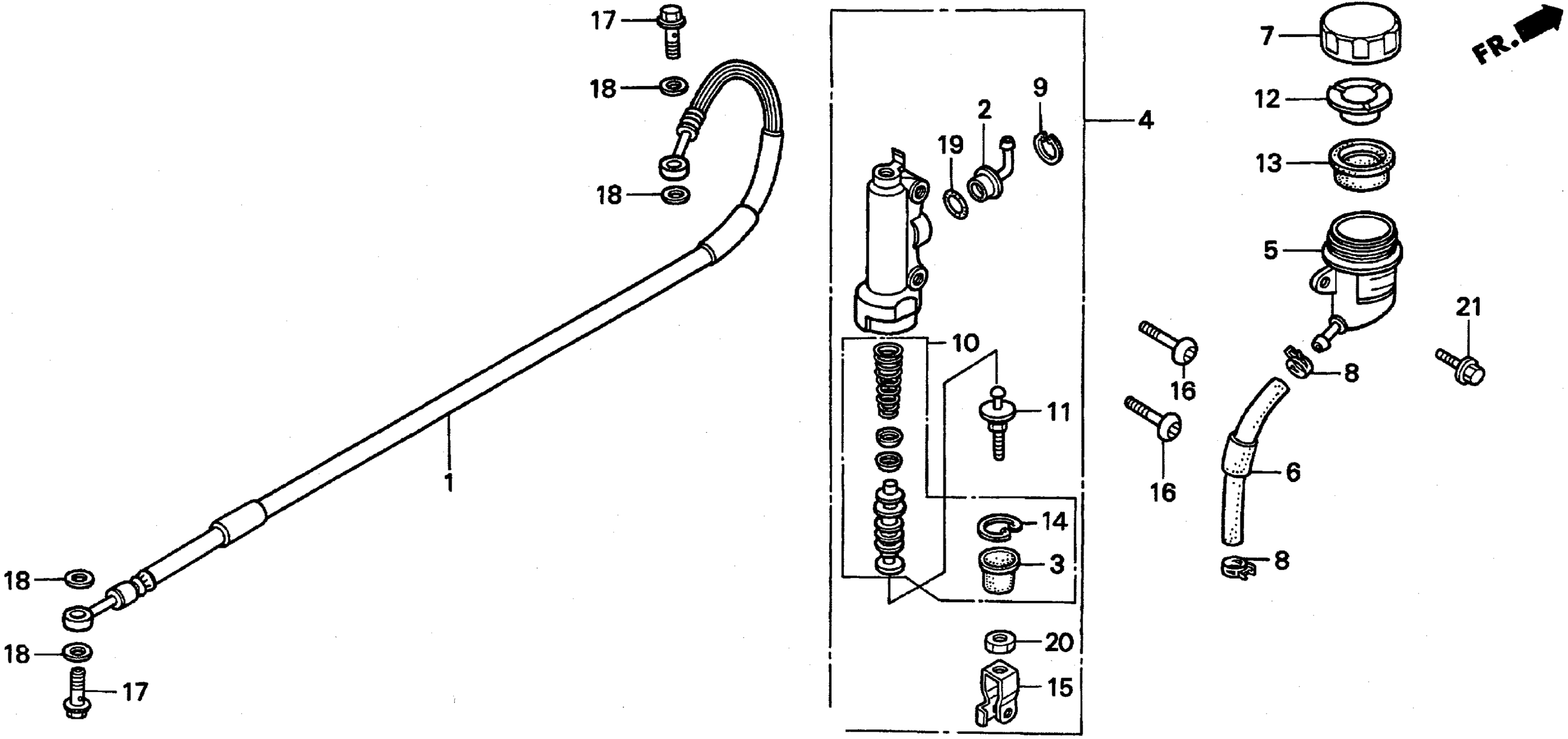

Honda CR500RA (01) MOTORCYCLE, JPN, VIN# JH2PE023-1M000001 REAR BRAKE MASTER CYLINDER Diagram

HOSE, RR. BRAKE (NOT AVAILABLE)

43310-MAC-911

Unavailable

CONNECTOR, MASTER CYLINDER

43503-KS6-701

$8.94

BOOT

43504-MB2-006

$9.01

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NOT AVAILABLE)

43510-GS2-305

Unavailable

CUP, MASTER CYLINDER OIL

43511-KS6-702

$23.26

HOSE, OIL (NOT AVAILABLE)

43512-KS7-833

Unavailable

CAP, MASTER CYLINDER

43513-KS6-701

$13.08

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.55

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$40.74

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$40.74

ROD, PUSH

43530-KS7-831

$24.49

PLATE, DIAPHRAGM

45518-GM9-711

$4.16

DIAPHRAGM

45520-GM9-711

$8.22

CIRCLIP

46182-500-013

$4.46

JOINT, BRAKE ROD

46504-KV6-702

$7.30

BOLT, RR. MASTER CYLINDER

90109-ML3-840

$6.22

BOLT, OIL (10X22)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

O-RING (14.8X2.4)

91212-422-006

Unavailable

NUT, HEX. (8MM)

94002-08000-0S

$1.19

BOLT, FLANGE (6X12)

96001-06012-00

$1.64
