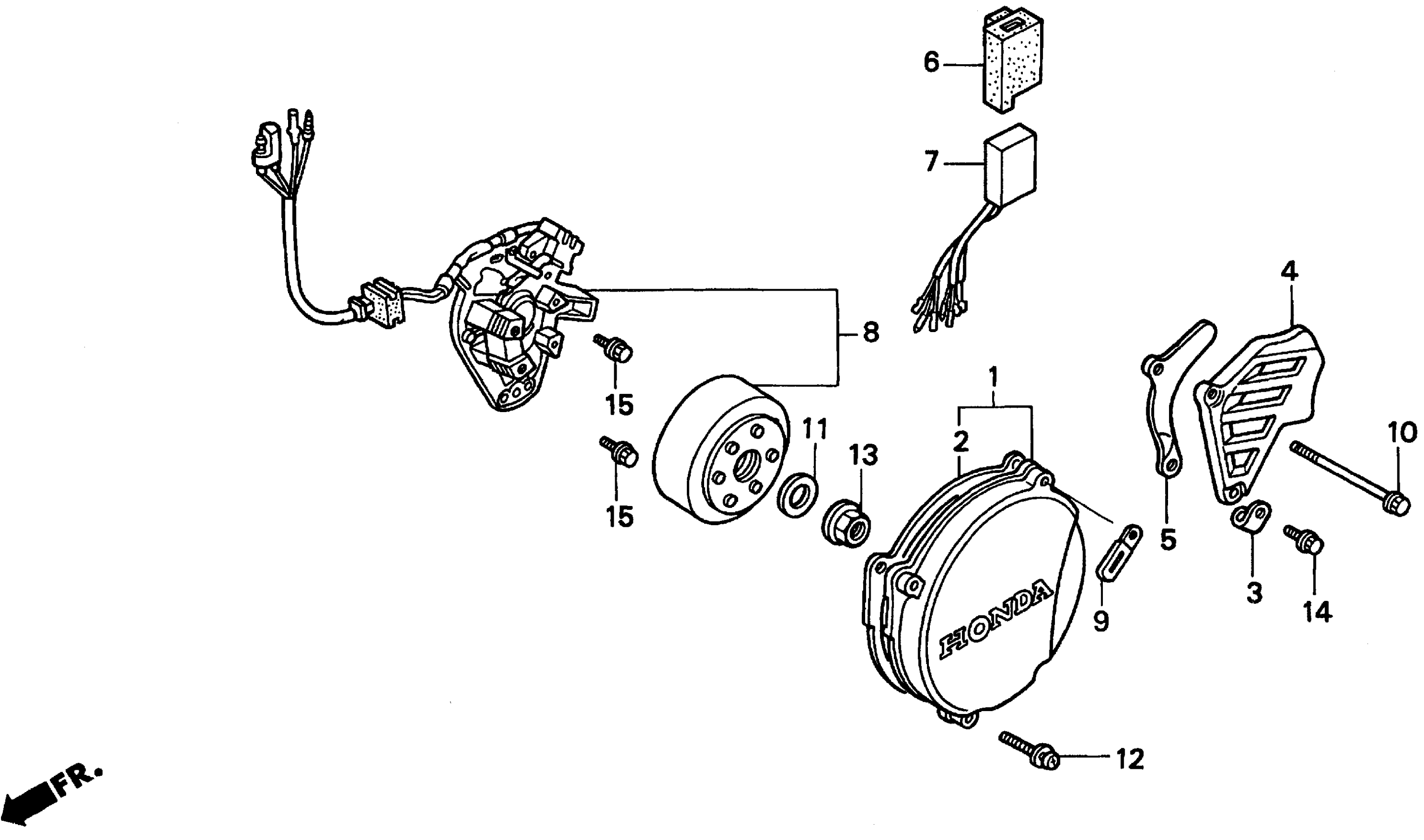

Honda CR500RA (01) MOTORCYCLE, JPN, VIN# JH2PE023-1M000001 LEFT CRANKCASE COVER Diagram

#

Description

Price

1

COVER ASSY., L. CRANKCASE

11350-MAC-670

Unavailable

2

GASKET, L. COVER

11352-KA5-690

$4.33

3

CLAMP, OVERFLOW PIPE

16236-045-010

$4.49

4

COVER, DRIVE SPROCKET

23810-KZ3-861

$29.13

5

GUIDE, DRIVE CHAIN

23812-KA4-740

$31.14

6

SUSPENSION, IGNITION CONTROL MODULE (CDI)

30401-KZ3-861

Unavailable

7

MODULE, IGNITION CONTROL (CDI)

30410-ML3-791

$392.48

8

GENERATOR ASSY., FLYWHEEL TYPEA.C. (DENSO)

31100-ML3-791

Unavailable

9

CLIP, PULSER WIRE

32925-958-000

$2.92

10

BOLT, FLANGE (6X115)

90053-MAC-670

$7.64

11

WASHER, PLAIN (12MM)

90437-611-000

$4.22

12

SCREW-WASHER (6X28)

93891-06028-00

$1.49

13

NUT, FLANGE (12MM)

94050-12000

$1.49

14

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

15

BOLT, FLANGE (6X18)

96300-06018-00

$1.49
