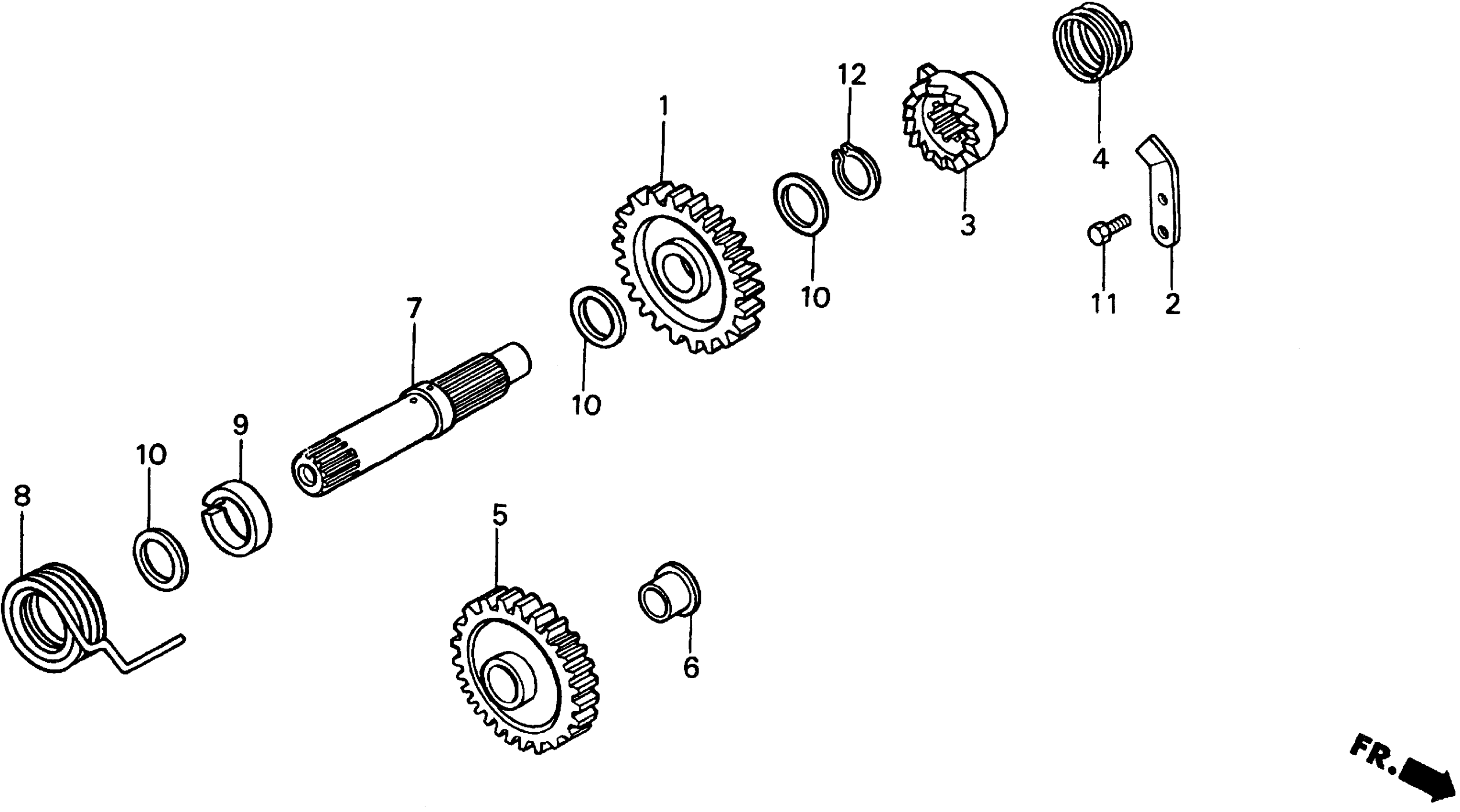

Honda CR500RA (01) MOTORCYCLE, JPN, VIN# JH2PE023-1M000001 KICK STARTER SPINDLE Diagram

#

Description

Price

1

PINION, ONLY KICK (27T)

28211-ML3-780

Unavailable

2

PLATE, KICK STOPPER This part replaces 28215-KS7-830.

28215-MEB-670

$5.48

2

PLATE, KICK STOPPER

28215-MEB-670

$5.48

3

RATCHET, KICK STARTER

28221-ML3-780

Unavailable

4

SPRING, KICK STARTER RATCHET

28223-KA4-740

$3.92

5

GEAR, KICK IDLE (30T)

28231-ML3-000

Unavailable

6

COLLAR, KICK STARTER IDLE GEAR

28232-KA4-740

$14.10

7

SPINDLE, KICK STARTER

28251-KA4-740

Unavailable

8

SPRING, KICK RETURN

28261-KA4-741

$11.22

9

COLLAR, KICK STARTER SPRING

28282-KA4-740

Unavailable

10

WASHER, THRUST (20MM)

90554-728-940

$6.07

11

BOLT, HEX. (6X16)

93301-06016-0A

$1.49

12

CIRCLIP (OUTER) (19MM)

94510-19000

$1.49
