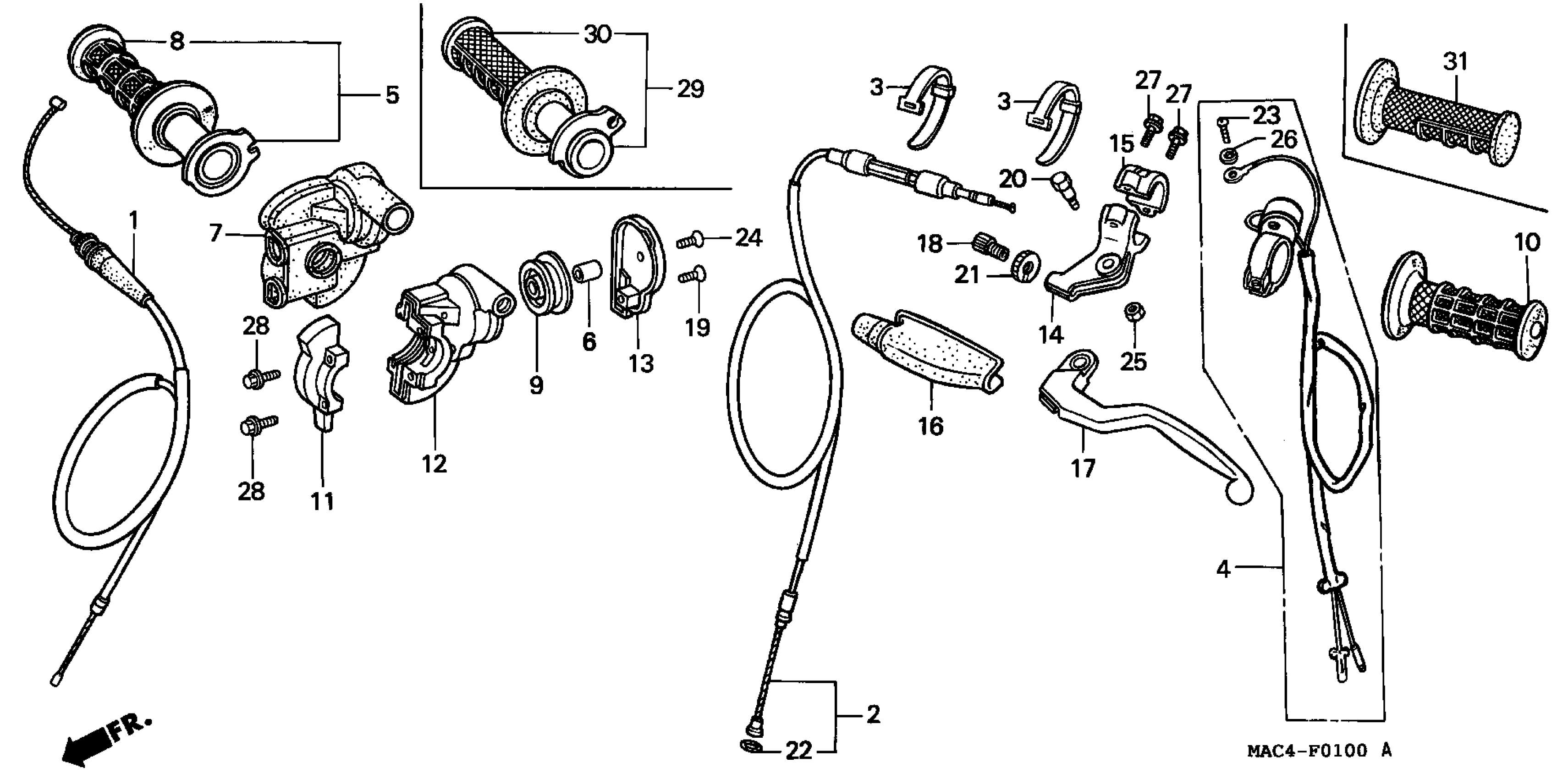

Honda CR500RA (01) MOTORCYCLE, JPN, VIN# JH2PE023-1M000001 HANDLE + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-MAC-670

$29.65

2

CABLE, CLUTCH

22870-KA5-841

$33.55

3

BAND B1, WIRE

32161-404-000

$2.23

4

SWITCH ASSY., STOP

35130-KZ3-860

$44.30

6

COLLAR B, HOUSING

53163-MAC-670

$8.55

7

COVER, THROTTLE HOUSING

53164-MAC-680

$30.45

9

ROLLER, THROTTLE CABLE

53166-ML3-600

$7.61

11

HOUSING A, GRIP

53167-MAC-680

Unavailable

12

HOUSING B, GRIP

53168-ML3-600

Unavailable

13

COVER B, HOUSING

53169-ML3-600

Unavailable

14

BRACKET, L. HANDLE LEVER

53172-MAC-740

Unavailable

15

HOLDER, L. LEVER BRACKET

53174-MAC-740

Unavailable

16

COVER, L. HANDLE LEVER

53177-430-000

$11.00

17

LEVER, L. HANDLEBAR

53178-MAC-740

$19.97

18

BOLT, WIRE ADJUSTING

53192-KA4-710

$10.51

19

SCREW, OVAL (4X25) This part replaces 90114-ML3-600.

93700-04025-0G

$2.18

19

SCREW, OVAL (4X25)

93700-04025-0G

$2.18

20

BOLT, HANDLE LEVER PIVOT

90114-428-870

$4.06

21

NUT, FIXING This part replaces 90321-KA4-700.

90321-KF0-000

$9.76

21

NUT, FIXING

90321-KF0-000

$9.76

22

O-RING (5.8X1.9)

91357-KA4-004

$2.48

23

SCREW, PAN (4X12)

93500-04012-0A

$1.49

24

SCREW, OVAL (4X20)

93700-04020-0G

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

WASHER, SPRING (4MM)

94111-04000

$1.49

27

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

28

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

29

GRIP, THROTTLE This part replaces 53140-KZ4-J30.

53140-KZ4-J31

$24.53

29

GRIP, THROTTLE

53140-KZ4-J31

$24.53

30

GRIP, R. HANDLE (COO) This part replaces 53165-GBF-J60.

53165-KPT-305

$10.28

30

GRIP, R. HANDLE (COO)

53165-KPT-305

$10.28

31

GRIP, L. HANDLE (COO) This part replaces 53166-GBF-J60.

53166-KPT-305

$10.28

31

GRIP, L. HANDLE (COO)

53166-KPT-305

$10.28
