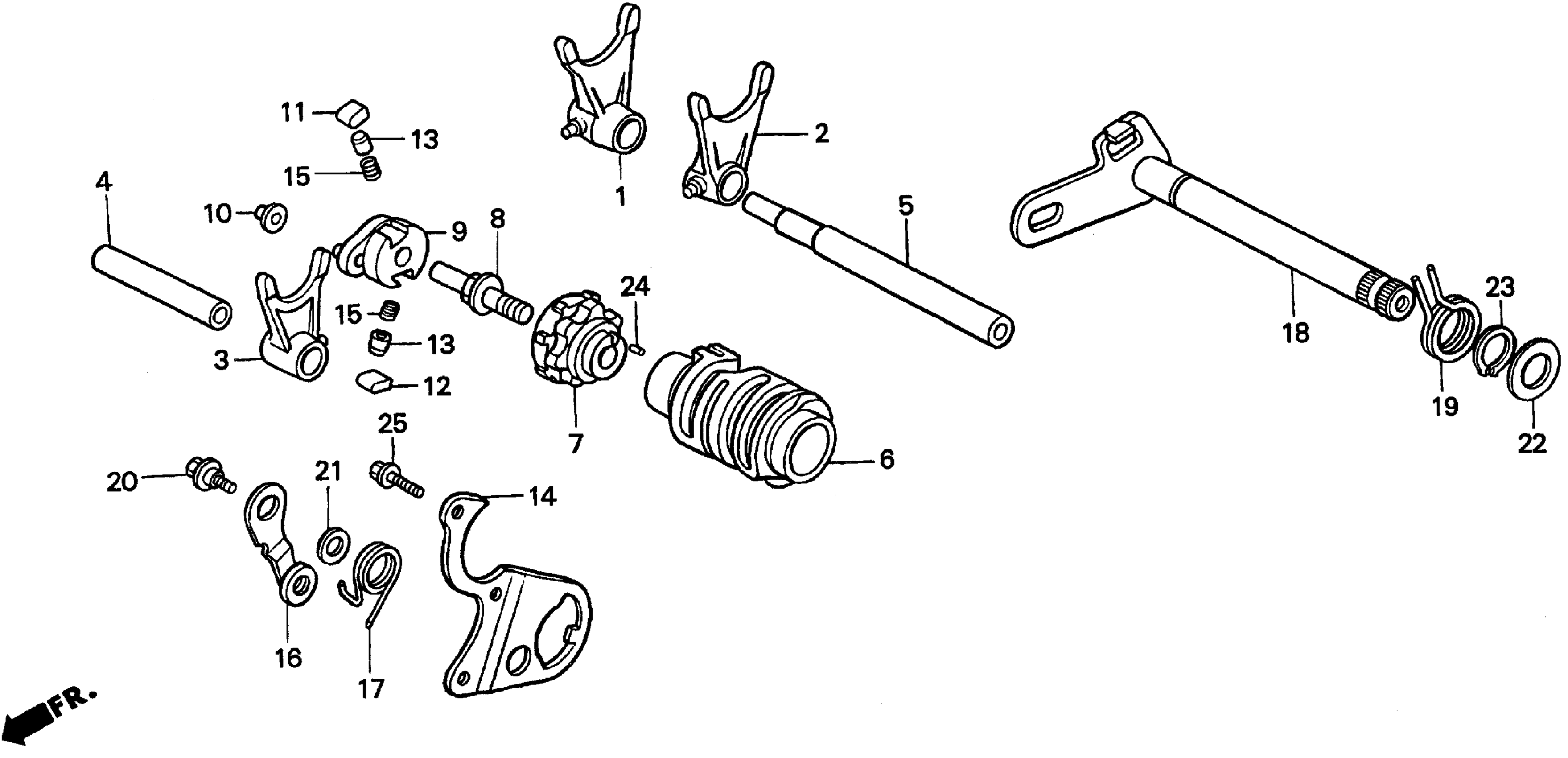

Honda CR500RA (01) MOTORCYCLE, JPN, VIN# JH2PE023-1M000001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-KA5-690

Unavailable

2

FORK, L. GEARSHIFT

24221-KA5-690

Unavailable

3

FORK, CENTER GEARSHIFT

24231-KA5-691

Unavailable

4

SHAFT, GEARSHIFT FORK MAIN

24265-KA4-740

Unavailable

5

SHAFT C, GEARSHIFT FORK

24266-KA4-770

Unavailable

6

DRUM, GEARSHIFT

24311-KSK-730

Unavailable

6

DRUM, GEARSHIFT This part replaces 24311-ML3-000.

24311-KSK-730

Unavailable

7

CENTER, GEARSHIFT DRUM

24312-KA3-741

$64.75

8

PIN, SHIFTER

24315-HA0-000

$12.60

9

SHIFTER, DRUM

24321-MAC-680

Unavailable

10

COLLAR, SHIFTER

24322-HA0-000

$5.49

11

PAWL A, RATCHET

24324-KA3-711

$13.21

12

PAWL B, RATCHET

24325-KA3-711

$13.21

13

PLUNGER, PAWL

24326-KBH-901

$5.81

14

PLATE, GUIDE

24328-KA5-690

Unavailable

15

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

16

STOPPER, DRUM

24430-KA3-740

$21.88

17

SPRING, SHIFT DRUM STOPPER

24435-KA4-770

$5.34

18

SPINDLE, GEARSHIFT

24610-KS7-830

Unavailable

19

SPRING, GEARSHIFT RETURN This part replaces 24651-KS7-830.

24651-KZ3-860

Unavailable

19

SPRING, GEARSHIFT RETURN

24651-KZ3-860

Unavailable

20

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

21

WASHER (6.1MM)

90435-HB3-000

$2.92

22

WASHER (14MM)

90451-155-000

$3.78

23

CIRCLIP, OUTER (14MM)

94510-14000

$1.49

24

ROLLER (4X8)

96220-40080

$1.49

25

BOLT, FLANGE (6X16)

96300-06016-00

$1.49
