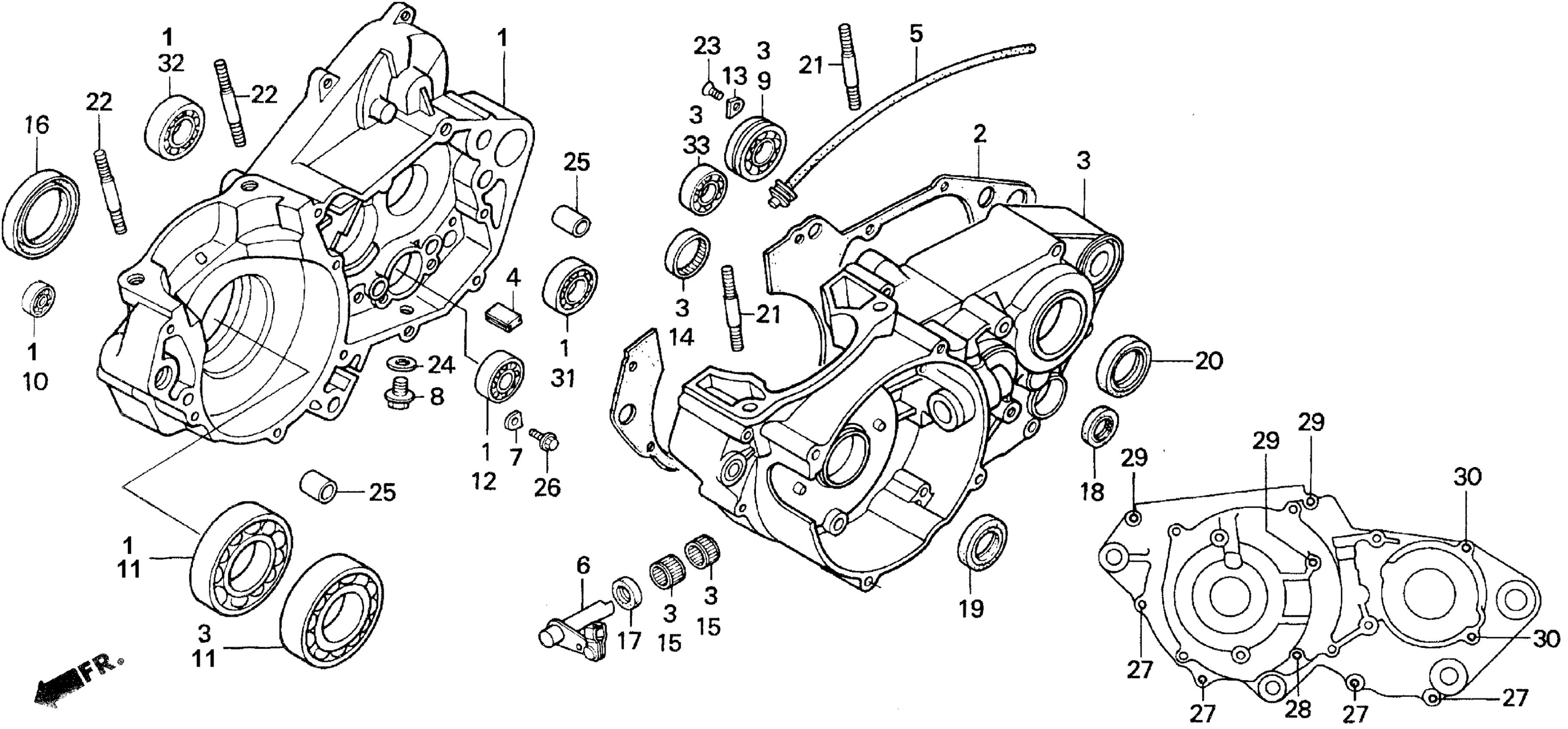

Honda CR500RA (01) MOTORCYCLE, JPN, VIN# JH2PE023-1M000001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY., R.

11100-MAC-305

$597.03

2

GASKET, CRANKCASE

11191-MAC-680

$26.94

3

CRANKCASE ASSY., L.

11200-MAC-305

Unavailable

4

GROMMET, BREATHER

11206-GC4-700

$3.08

5

TUBE, BREATHER

11211-ML3-910

$9.00

6

LIFTER, CLUTCH

22810-ML3-000

Unavailable

7

PLATE A, BEARING SETTING

23521-KW3-000

$4.46

8

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.51

9

BEARING, RADIAL BALL (24X56X14) (NTN)

91001-ML3-873

$18.92

10

BEARING, RADIAL BALL (7X19X6) (NTN)

91002-KA4-003

$21.67

10

BEARING, RADIAL BALL (7X19X6) (TOYO) This part replaces 91002-KA4-005.

91002-KA4-003

$21.67

11

BEARING, RADIAL BALL This part replaces 91003-KA4-771.

91008-KAE-731

$48.16

11

BEARING, RADIAL BALL This part replaces 91008-KAE-000.

91008-KAE-731

$48.16

11

BEARING, RADIAL BALL

91008-KAE-731

$48.16

12

BEARING, RADIAL BALL (25X42X9) (NTN)

91004-GC4-731

$27.55

12

BEARING, RADIAL BALL (25X42X9) (TOYO) This part replaces 91004-430-003.

91004-GC4-731

$27.55

13

PLATE, COUNTERSHAFT BEARING

91012-KA5-690

Unavailable

14

BEARING, SHELL (33X38X8) (NTN)

91022-KA4-740

$17.87

15

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

15

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

16

OIL SEAL (38X58X11) (NOK)

91201-KA4-004

$20.36

17

OIL SEAL (12X18X3) (ARAI)

91201-951-003

$3.67

18

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

18

OIL SEAL (14X22X5) This part replaces 91203-KA4-772.

91203-KK3-830

$3.81

18

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

19

OIL SEAL (20X32X7) (NOK)

91205-166-004

$17.38

20

OIL SEAL (31X40X7) (ARAI)

91207-ML3-871

$10.65

21

BOLT, STUD (10X45)

92900-10045-3B

$2.15

22

BOLT, STUD (10X55)

92900-10055-3B

$2.25

23

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

24

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

25

PIN, DOWEL (14X20)

94301-14200

$2.28

26

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

27

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

28

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

29

BOLT, FLANGE (6X65)

96001-06065-00

$2.34

30

BOLT, FLANGE (6X75)

96001-06075-00

$2.23

31

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70

32

BEARING, RADIAL BALL (6205)

96100-62050-00

$18.63

33

BEARING, RADIAL BALL (6203U)

96140-62030-00

$18.59
