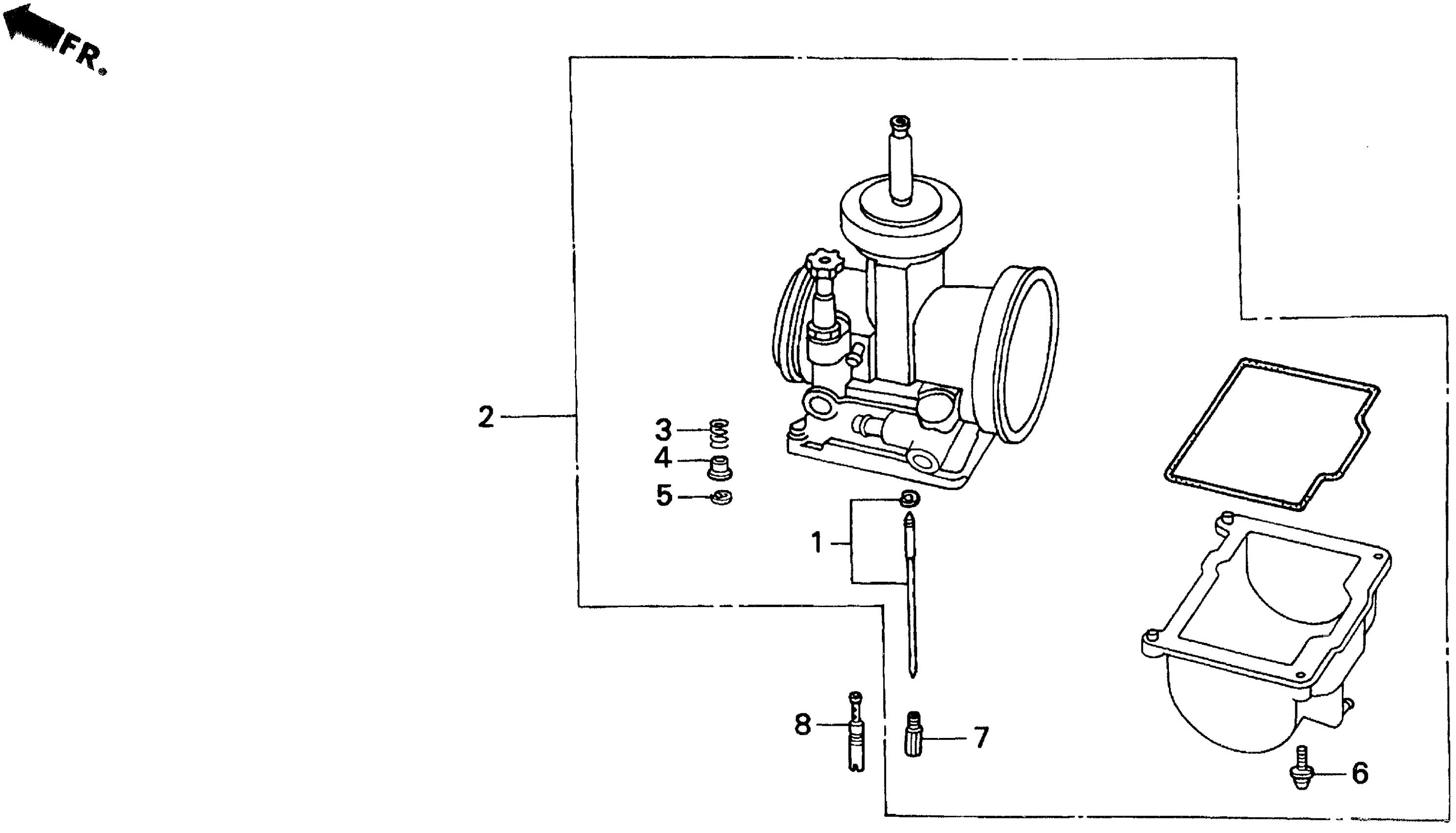

Honda CR500RA (01) MOTORCYCLE, JPN, VIN# JH2PE023-1M000001 CARBURETOR OPTIONAL KIT Diagram

#

Description
Price

1

NEEDLE SET, JET (R1370NS) | (Optional).

16012-ML3-681

Unavailable

1

NEEDLE SET, JET (R1369NS) | (Optional).

16012-ML3-910

Unavailable

1

NEEDLE SET, JET (R1366NS) | (Optional).

16201-ML3-760

Unavailable

1

NEEDLE SET, JET (R1367NS) | (Optional).

16201-ML3-910

Unavailable

2

PARTS KIT, CARBURETOR OPTIONAL | (Optional).

16020-ML3-760

Unavailable

3

SPRING, COMPRESSION COIL | (Optional).

16051-KA3-761

$16.41

4

COLLAR, SPRING SETTING | (Optional).

16066-KA3-761

Unavailable

5

CLIP, BAR | (Optional).

16115-GHB-610

$2.98

5

CLIP, BAR | (Optional). This part replaces 16115-169-004.

16115-GHB-610

$2.98

6

SCREW-WASHER (4X16) | (Optional).

93892-04016-08

$1.49

6

SCREW-WASHER (4X16) | (Optional). This part replaces 93892-04016-18.

93892-04016-08

$1.49

7

JET, MAIN (#160) | (Optional). This part replaces 99101-357-1600.

99113-GHB-1600

$9.44

7

JET, MAIN (#162) | (Optional). This part replaces 99101-357-1620.

99113-GHB-1620

$9.41

7

JET, MAIN (#165) | (Optional). This part replaces 99101-357-1650.

99113-GHB-1650

$9.41

7

JET, MAIN (#168) | (Optional). This part replaces 99101-357-1680.

99113-GHB-1680

$9.41

7

JET, MAIN (#172) | (Optional).

99101-357-1720

$9.41

7

JET, MAIN (#175) | (Optional).

99101-357-1750

$9.41

7

JET, MAIN (#178) | (Optional). This part replaces 99101-357-1780.

99113-GHB-1780

$9.41

7

JET, MAIN (#180) | (Optional). This part replaces 99101-357-1800.

99113-GHB-1800

$9.41

7

JET, MAIN (#160) | (Optional).

99113-GHB-1600

$9.44

7

JET, MAIN (#162) | (Optional).

99113-GHB-1620

$9.41

7

JET, MAIN (#165) | (Optional).

99113-GHB-1650

$9.41

7

JET, MAIN (#168) | (Optional).

99113-GHB-1680

$9.41

7

JET, MAIN (#172) JET, MAIN (#155) | (Optional). This part replaces 99113-GHB-1720.

99101-357-1720

$9.41

7

JET, MAIN (#175) | (Optional). This part replaces 99113-GHB-1750.

99101-357-1750

$9.41

7

JET, MAIN (#178) | (Optional).

99113-GHB-1780

$9.41

7

JET, MAIN (#180) | (Optional).

99113-GHB-1800

$9.41

8

JET, SLOW (#60) | (Optional).

99103-KA3-0600

Unavailable

8

JET, SLOW (#50) | (Optional).

99103-440-0500

$15.48

8

JET, SLOW (#52) | (Optional).

99103-4400520

$13.15

8

JET, SLOW (#60) | (Optional). This part replaces 99103-440-0600.

99103-KA3-0600

Unavailable
