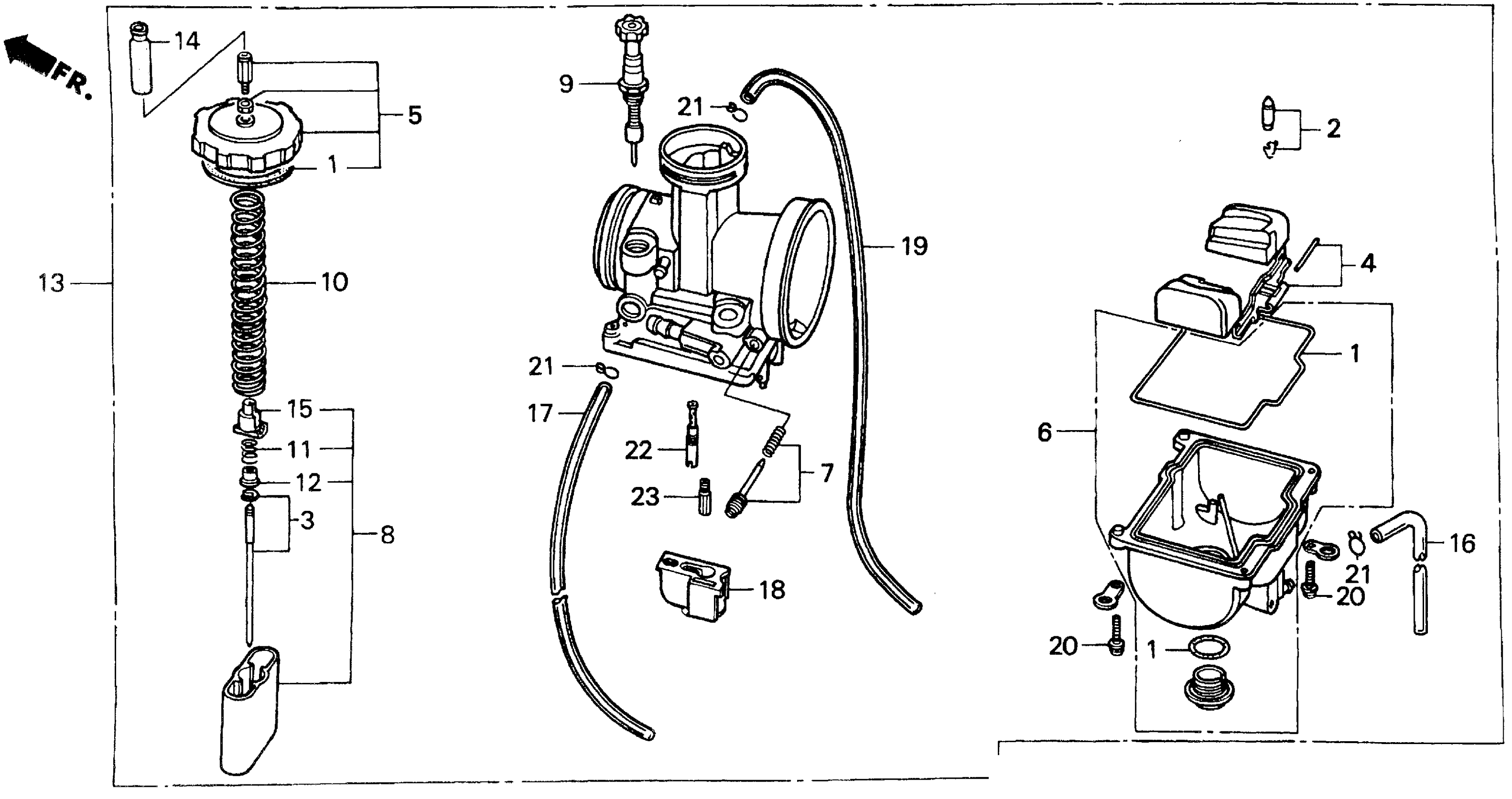

Honda CR500RA (01) MOTORCYCLE, JPN, VIN# JH2PE023-1M000001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-KA5-691

$46.68

2

VALVE SET, FLOAT

16011-KA3-741

$45.27

3

NEEDLE SET, JET (R1368NS)

16202-ML3-681

Unavailable

4

FLOAT SET

16013-HA2-671

$50.15

4

FLOAT SET This part replaces 16013-KA3-741.

16013-HA2-671

$50.15

5

TOP SET

16014-KA5-691

Unavailable

6

CHAMBER SET, FLOAT

16015-VM0-004

Unavailable

7

SCREW SET A

16016-ML3-910

Unavailable

8

VALVE SET, THROTTLE

16022-ML3-670

Unavailable

9

VALVE SET, STARTER

16046-KA5-691

$69.51

10

SPRING, COMPRESSION COIL

16050-KA5-691

Unavailable

11

SPRING, COMPRESSION COIL

16051-KA3-761

$16.41

12

COLLAR, SPRING SETTING

16066-KA3-761

Unavailable

13

CARBURETOR ASSY. (PJ27N A)

16100-MAC-680

Unavailable

14

CAP, CABLE SEALING This part replaces 16118-GHB-600.

16118-166-004

$8.08

14

CAP, CABLE SEALING

16118-166-004

$8.08

15

HOLDER, CABLE

16137-KA3-761

Unavailable

16

TUBE, OVERFLOW This part replaces 16143-MAC-880.

16199-KZ3-505

Unavailable

16

TUBE, OVERFLOW

16199-KZ3-505

Unavailable

17

TUBE, AIR VENT This part replaces 16144-MAC-880.

16198-KZ3-P00

$4.45

17

TUBE, AIR VENT

16198-KZ3-P00

$4.45

18

PLATE, BUFFER

16185-KA3-761

Unavailable

19

TUBE, AIR VENT

16198-KZ3-P00

$4.45

19

TUBE, AIR VENT This part replaces 16198-MAC-880.

16198-KZ3-P00

$4.45

20

SCREW-WASHER (4X16)

93892-04016-08

$1.49

20

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

21

CLIP, TUBE (B7)

95002-02079

$1.49

22

JET, SLOW (#55)

99103-399-0550

$14.59

22

JET, SLOW (#55) This part replaces 99103-440-0550.

99103-399-0550

$14.59

23

JET, MAIN (#170) This part replaces 99113-GHB-1700.

99101-357-1700

$9.41
