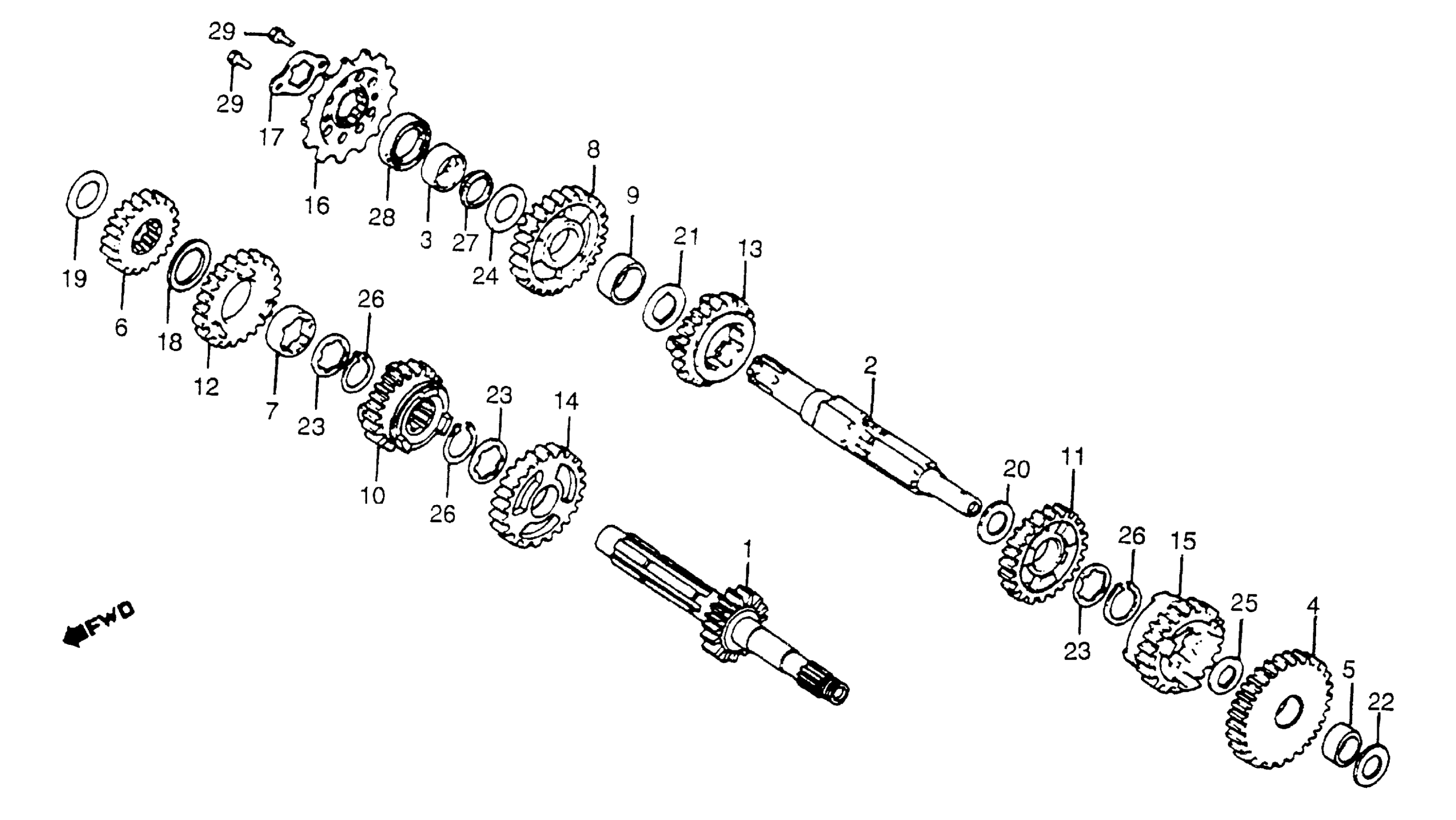

Honda CR480RA (83) MOTORCYCLE, JPN, VIN# JH2PE020-DC200018 TO JH2PE020-DC205352 TRANSMISSION 83 Diagram

#

Description
Price

1

MAINSHAFT (NOT AVAILABLE)

23211-KA5-680

Unavailable

2

COUNTERSHAFT (NOT AVAILABLE)

23220-KA5-680

Unavailable

3

COLLAR, COUNTERSHAFT (22MM)

23225-430-000

Unavailable

4

GEAR, COUNTERSHAFT LOW (NOT AVAILABLE)

23411-KA5-680

Unavailable

5

COLLAR, COUNTERSHAFT LOW GEAR

23412-KA5-680

Unavailable

6

GEAR, MAINSHAFT SECOND (17T)

23421-KA5-680

Unavailable

7

COLLAR, MAINSHAFT SECOND GEAR

23422-KA5-000

Unavailable

8

GEAR, COUNTERSHAFT SECOND

23431-KA5-680

Unavailable

9

COLLAR, COUNTERSHAFT SECOND GEAR (NOT AVAILABLE)

23432-KA5-680

Unavailable

10

GEAR, MAINSHAFT THIRD

23441-KA5-680

Unavailable

11

GEAR, COUNTERSHAFT THIRD (NOT AVAILABLE)

23451-KA5-680

Unavailable

12

GEAR, MAINSHAFT FOURTH (21T)

23461-KA5-680

Unavailable

13

GEAR, COUNTERSHAFT FOURTH (NOT AVAILABLE)

23471-KA5-680

Unavailable

14

GEAR, MAINSHAFT FIFTH (NOT AVAILABLE)

23481-KA5-680

Unavailable

15

GEAR, COUNTERSHAFT FIFTH (18T) (NOT AVAILABLE)

23491-KA5-680

Unavailable

16

SPROCKET, DRIVE (14T) This part replaces 23802-KA4-000.

23802-467-000

Unavailable

16

SPROCKET, DRIVE (14T)

23802-467-000

Unavailable

17

PLATE, FIXING

23811-HA5-670

$4.96

17

PLATE, FIXING This part replaces 23811-430-000.

23811-HA5-670

$4.96

18

WASHER, THRUST (25MM)

90421-961-000

$5.58

19

WASHER, THRUST (20X31.5)

90443-430-000

$7.22

20

WASHER, THRUST (25.2X30)

90444-430-000

$3.78

21

WASHER, THRUST (24.2X34)

90446-KA5-680

Unavailable

22

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

23

WASHER, SPLINE (25MM)

90463-430-000

$5.89

24

WASHER B, THRUST (22MM)

90455-ML7-000

$4.85

24

WASHER B, THRUST (22MM) (BLUE) This part replaces 90502-360-000.

90455-ML7-000

$4.85

25

WASHER, THRUST (19MM)

90554-KA5-680

$4.37

26

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

27

O-RING (22X1.5)

91201-430-003

$2.94

28

OIL SEAL (28X40X8) (NOK)

91207-ML3-003

$14.08

28

OIL SEAL (28X40X8) (NOK) This part replaces 91207-ML3-004.

91207-ML3-003

$14.08

28

OIL SEAL (28X40X8) (NOK) This part replaces 91207-430-003.

91207-ML3-003

$14.08

28

OIL SEAL (28X40X8) (NOK) This part replaces 91207-430-005.

91207-ML3-003

$14.08

29

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

29

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.49

29

BOLT, HEX. (6X10)

92101-06010-0A

$1.49
