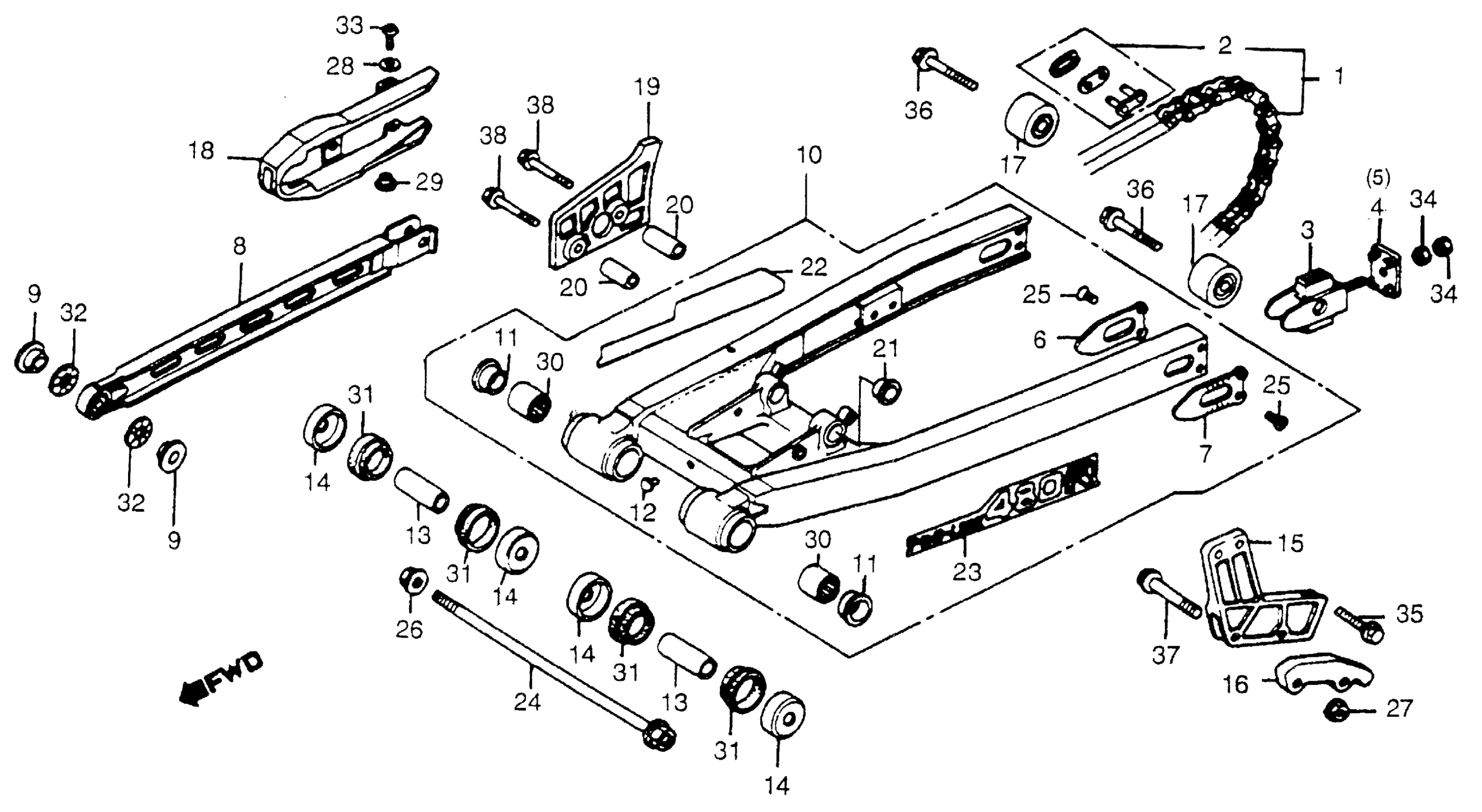

Honda CR480RA (83) MOTORCYCLE, JPN, VIN# JH2PE020-DC200018 TO JH2PE020-DC205352 SWINGARM + DRIVE CHAIN 83 Diagram

#

Description
Price

1

CHAIN, DRIVE

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE | (Optional).

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE (520DS3-118L)

40530-KA5-681

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA5-772.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE (520DS3-120L) | (Optional).

40532-KA5-681

Unavailable

1

CHAIN, DRIVE This part replaces 40532-KA5-741.

405W3-KA5-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KA5-772.

405W3-KA5-505

Unavailable

2

MASTER LINK (TAKASAGO) (NOT AVAILABLE)

40531-KA4-702

Unavailable

2

MASTER LINK (DAIDO) | (Optional). This part replaces 40531-KA4-711.

40531-KA4-732

Unavailable

2

MASTER LINK (DAIDO) | (Optional).

40531-KA4-732

Unavailable

3

ADJUSTER, CHAIN

40543-KA3-710

Unavailable

4

RETAINER, CHAIN ADJUSTER (NOT AVAILABLE)

40544-KA3-710

Unavailable

5

RETAINER, R. CHAIN ADJUSTER (NOT AVAILABLE)

40544-KA4-710

$24.62

6

WASHER, SWINGARM INSIDE

42307-KA3-710

Unavailable

7

WASHER, SWINGARM (OUTER)

42308-KA3-710

Unavailable

8

ARM, RR. BRAKE STOPPER (NOT AVAILABLE) This part replaces 43431-KA5-680.

43431-KA5-681

Unavailable

8

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-KA5-681

Unavailable

9

COLLAR, RR. BRAKE STOPPER ARM

43432-KA3-710

Unavailable

10

SWINGARM ASSY., RR.

52000-KA5-681

Unavailable

11

BUSH, PIVOT THRUST

52109-KA4-701

$16.01

12

PLUG, SWINGARM

52130-KA3-711

Unavailable

13

COLLAR, SWINGARM

52141-KA4-700

Unavailable

14

CAP, DUST SEAL

52144-KA3-731

$14.60

14

CAP, DUST SEAL This part replaces 52144-KA4-700.

52144-KA3-731

$14.60

14

CAP, DUST SEAL This part replaces 52144-KA4-701.

52144-KA3-731

$14.60

15

GUIDE, CHAIN (NOT AVAILABLE)

52146-KA4-710

Unavailable

16

SLIDER, CHAIN GUIDE (NOT AVAILABLE)

52147-KA3-711

Unavailable

17

ROLLER, CHAIN TENSIONER (NOT AVAILABLE)

52158-KA3-711

Unavailable

18

SLIDER, CHAIN (NOT AVAILABLE)

52170-KA4-710

Unavailable

19

SPLASH GUARD, CHAIN (NOT AVAILABLE)

52180-KA4-701

Unavailable

20

COLLAR, CHAIN SPLASH GUARD (NOT AVAILABLE)

52181-KA4-700

Unavailable

21

WASHER, CUSHION ARM (NOT AVAILABLE)

52464-KA4-700

Unavailable

22

EMBLEM, R. SWINGARM (NOT AVAILABLE)

87121-KA5-680

Unavailable

23

EMBLEM, L. SWINGARM (NOT AVAILABLE)

87122-KA5-680

Unavailable

24

BOLT, SWINGARM (NOT AVAILABLE)

90117-KA3-710

Unavailable

25

SCREW, FLAT (5X4)

90124-KA3-711

$5.60

26

NUT, RR. SWINGARM PIVOT

90301-430-000

Unavailable

27

NUT, U (6MM)

90301-473-003

$4.07

28

WASHER, STOPPER This part replaces 90483-040-000.

90483-041-000

$1.92

29

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

30

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$33.10

30

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$33.10

31

DUST SEAL

91253-KA4-701

$12.86

31

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$12.86

32

DUST SEAL (13X18X3) This part replaces 91272-KA3-711.

91272-KA3-712

Unavailable

32

DUST SEAL (13X18X3)

91272-KA3-712

Unavailable

33

SCREW, PAN (5X10)

93500-05010-0H

$1.49

34

NUT, HEX. (8MM)

94002-08000-0S

$1.49

35

BOLT, FLANGE (8X32) This part replaces 95700-08032-08.

95701-08032-08

$2.28

35

BOLT, FLANGE (8X32)

95701-08032-08

$2.28

36

BOLT, FLANGE (8X40) This part replaces 95700-08040-08.

95701-08040-08

$2.28

36

BOLT, FLANGE (8X40)

95701-08040-08

$2.28

37

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

37

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

38

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

38

BOLT, FLANGE (6X45)

96001-06045-00

$1.95
