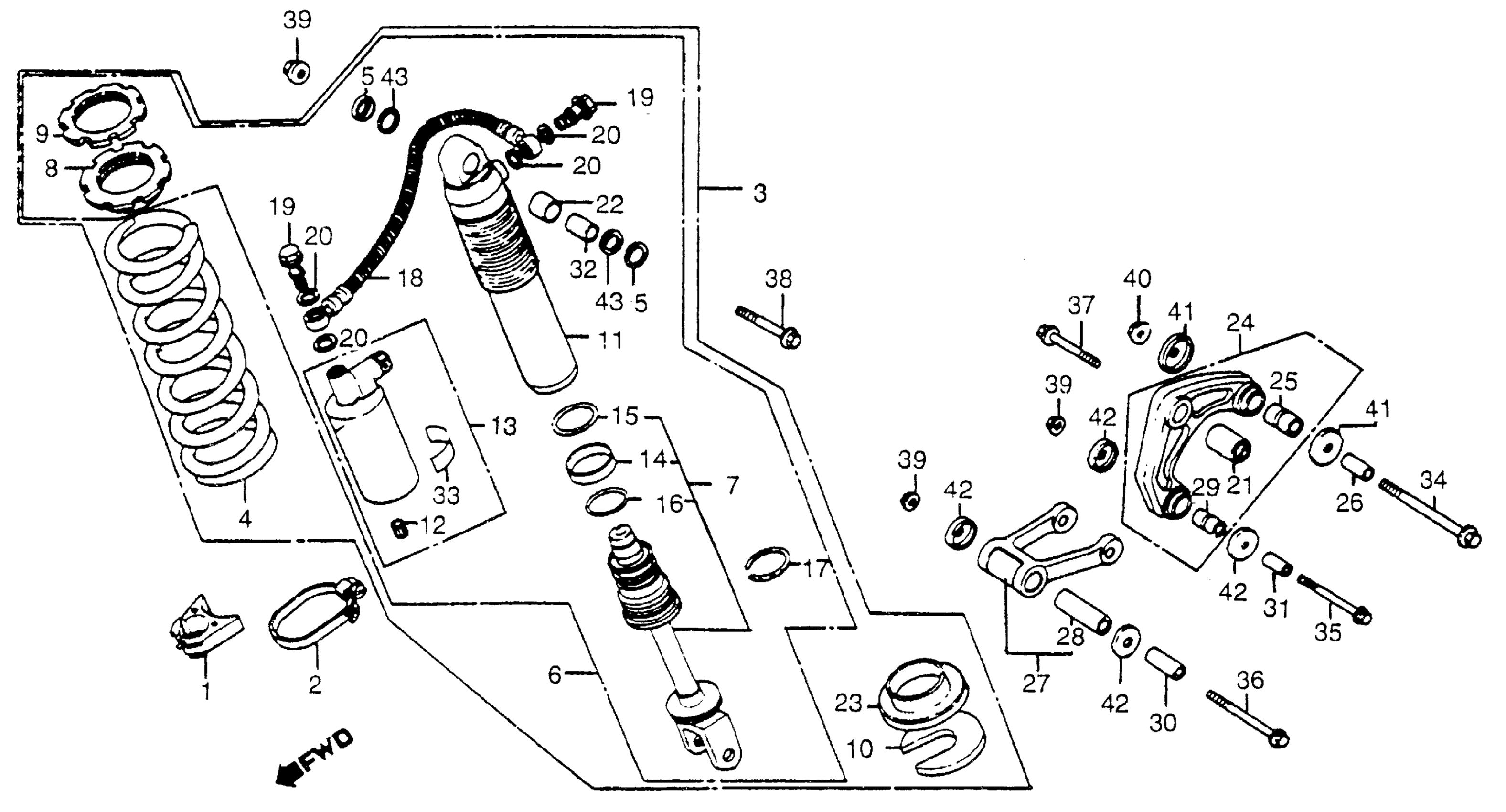

Honda CR480RA (83) MOTORCYCLE, JPN, VIN# JH2PE020-DC200018 TO JH2PE020-DC205352 REAR SHOCK ABSORBER 83 Diagram

#

Description
Price

1

RUBBER, SUB-TANK MOUNTING (NOT AVAILABLE)

50250-KA3-710

Unavailable

2

BAND, SUB-TANK (NOT AVAILABLE) This part replaces 50252-KA3-710.

50252-KA3-830

Unavailable

3

SHOCK ABSORBER, RR. (NOT AVAILABLE)

52400-KA5-682

Unavailable

4

SPRING, RR. SHOCK ABSORBER (6.0 BLUE)

52401-KA4-681

Unavailable

4

SPRING, RR. SHOCK ABSORBER (5.6 GREEN) | (Optional).

52401-KA4-711

Unavailable

4

SPRING, RR. SHOCK ABSORBER (6.4 BLACK) (NOT AVAILABLE) | (Optional).

52402-KA4-681

Unavailable

4

SPRING, RR. SHOCK ABSORBER (6.0 BLUE) | (Optional). This part replaces 52402-KA4-711.

52401-KA4-681

Unavailable

4

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE) | (Optional).

52403-KA4-711

Unavailable

5

CAP, DUST SEAL

52406-KB7-003

$6.48

6

DAMPER, RR.

52410-KA5-682

Unavailable

7

ROD, PISTON

52421-KA4-681

Unavailable

8

ADJUSTER, SPRING

52422-MA0-003

$39.25

9

NUT, ADJUSTER

52423-KA3-711

Unavailable

10

STOPPER, SPRING SEAT

52424-KA3-711

Unavailable

11

CASE, SHOCK ABSORBER

52425-KA4-711

Unavailable

12

CAP, AIR VALVE

52425-381-771

$5.05

13

SUB-TANK ASSY. (NOT AVAILABLE)

52430-KA5-681

Unavailable

14

RING, PISTON

52431-MA0-771

$16.40

15

O-RING (2.0X34.5) (NOT AVAILABLE)

52432-MA0-771

Unavailable

16

O-RING (3.5X33.7)

52434-KA3-681

$5.36

17

RING, STOPPER

52435-MA0-771

$4.97

18

HOSE, JOINT

52440-KA3-712

Unavailable

19

BOLT, OIL (10X22)

52441-KA3-711

Unavailable

20

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.41

21

BUSH, SHOCK ABSORBER (LOWER)

52451-MA0-000

$15.12

22

BUSH, SHOCK ABSORBER (UPPER)

52452-KB7-003

$15.55

23

SEAT C, SPRING

52459-KA3-711

Unavailable

24

ARM ASSY., SHOCK ABSORBER

52460-KA3-710

Unavailable

25

BUSH, DAMPER ARM

52462-MA0-013

Unavailable

26

COLLAR, DAMPER ARM PIVOT

52463-MA0-010

Unavailable

27

ROD ASSY., SHOCK CONNECTING (NOT AVAILABLE)

52470-KA4-710

Unavailable

28

BUSH, DAMPER CONNECTING ROD (NOT AVAILABLE)

52472-KA3-711

$25.69

29

BUSH, RUBBER CONNECTING ROD

52472-MA0-013

$29.48

30

COLLAR, CONNECTING ROD PIVOT (NOT AVAILABLE)

52473-KA3-710

Unavailable

31

COLLAR, CONNECTING ROD PIVOT This part replaces 52473-MA0-000.

52473-MA0-020

$16.68

31

COLLAR, CONNECTING ROD PIVOT This part replaces 52473-MA0-010.

52473-MA0-020

$16.68

32

COLLAR, SHOCK ABSORBER (UPPER)

52486-KB7-003

$14.81

33

LABEL, RR. DAMPER CAUTION (NOT AVAILABLE)

87516-MA0-003

Unavailable

34

BOLT, FLANGE (12X105)

90128-KA4-003

Unavailable

35

BOLT, FLANGE (10X78)

90129-KA3-710

Unavailable

36

BOLT, FLANGE (10X98)

90130-KA3-710

Unavailable

37

BOLT, FLANGE (10X45) (NOT AVAILABLE)

90153-MA0-003

Unavailable

38

BOLT, SPECIAL FLANGE (10X58) This part replaces 90182-KA4-003.

90153-965-000

$6.87

39

NUT, AXLE (10MM)

90304-GA6-003

$2.89

40

NUT, FLANGE (12MM) This part replaces 90306-KA4-003.

90306-181-761

$6.08

40

NUT, FLANGE (12MM)

90306-181-761

$6.08

41

SEAL, CUSHION ARM PIVOT (ARAI) This part replaces 91261-KA3-711.

91262-KR8-750

Unavailable

41

SEAL, CUSHION ARM PIVOT (ARAI) This part replaces 91261-KA3-712.

91262-KR8-750

Unavailable

42

SEAL, RUBBER CONNECTING ROD PIVOT (ARAI) This part replaces 91262-KA3-711.

91262-KA3-712

$11.62

42

SEAL, RUBBER CONNECTING ROD PIVOT (ARAI)

91262-KA3-712

$11.62

43

DUST SEAL B

91351-KB7-003

$3.49
