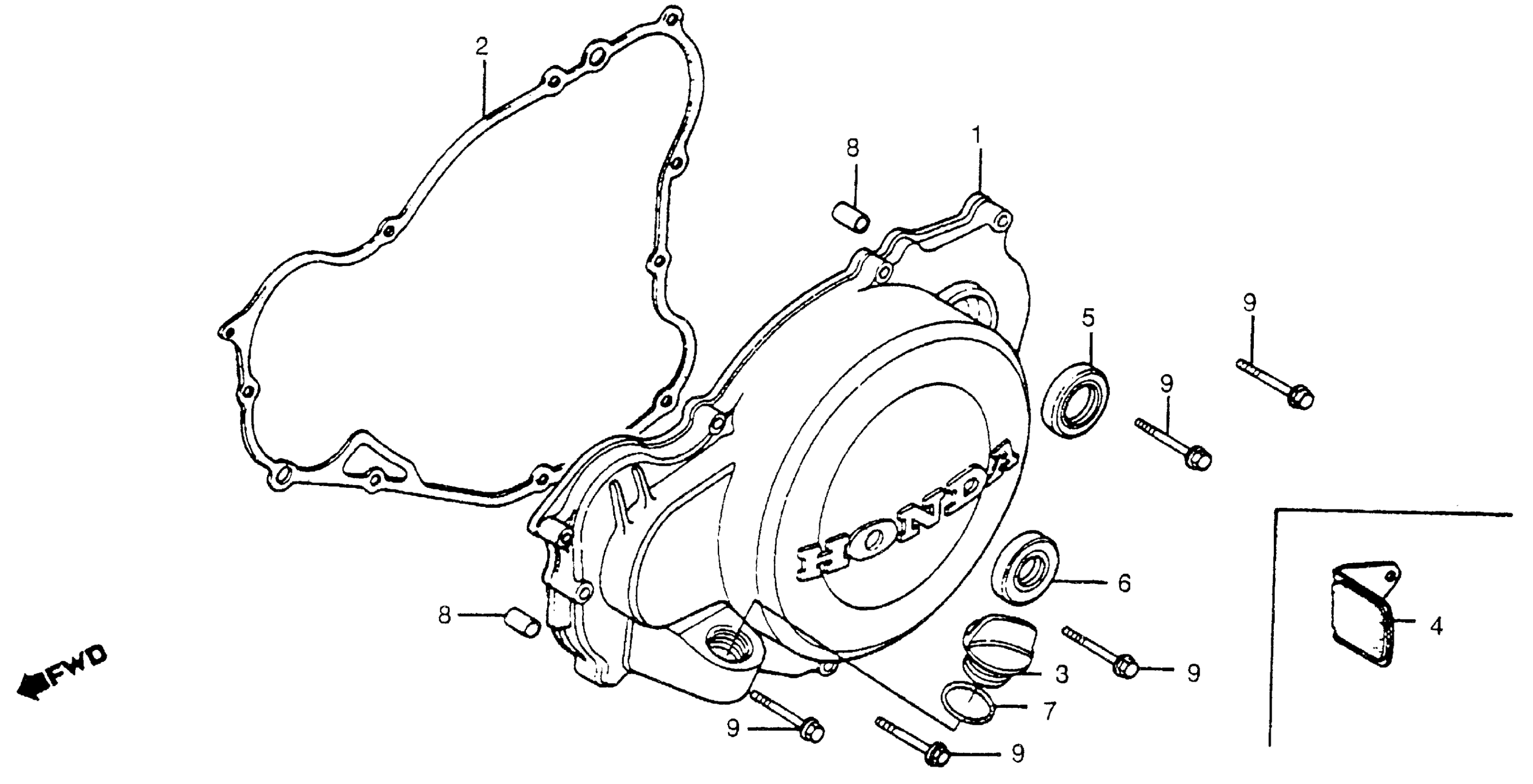

Honda CR480RA (83) MOTORCYCLE, JPN, VIN# JH2PE020-DC200018 TO JH2PE020-DC205352 LEFT CRANKCASE COVER Diagram

#

Description

Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11340-KA5-680

Unavailable

2

GASKET, L. CRANKCASE COVER

11395-KA4-307

$7.78

2

GASKET, L. CRANKCASE COVER This part replaces 11395-KA4-710.

11395-KA4-307

$7.78

3

CAP, OIL This part replaces 15611-381-000.

25611-733-000

$6.34

3

CAP, OIL FILLER

15611-KA4-710

$14.40

5

OIL SEAL (20X28X5) This part replaces 91202-KA4-003.

91204-KF0-003

$6.54

5

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

6

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

7

O-RING (16MM)

91303-800-000

$2.23

7

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.23

8

PIN A, DOWEL (10X14)

94301-10140

$2.28

9

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

9

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
