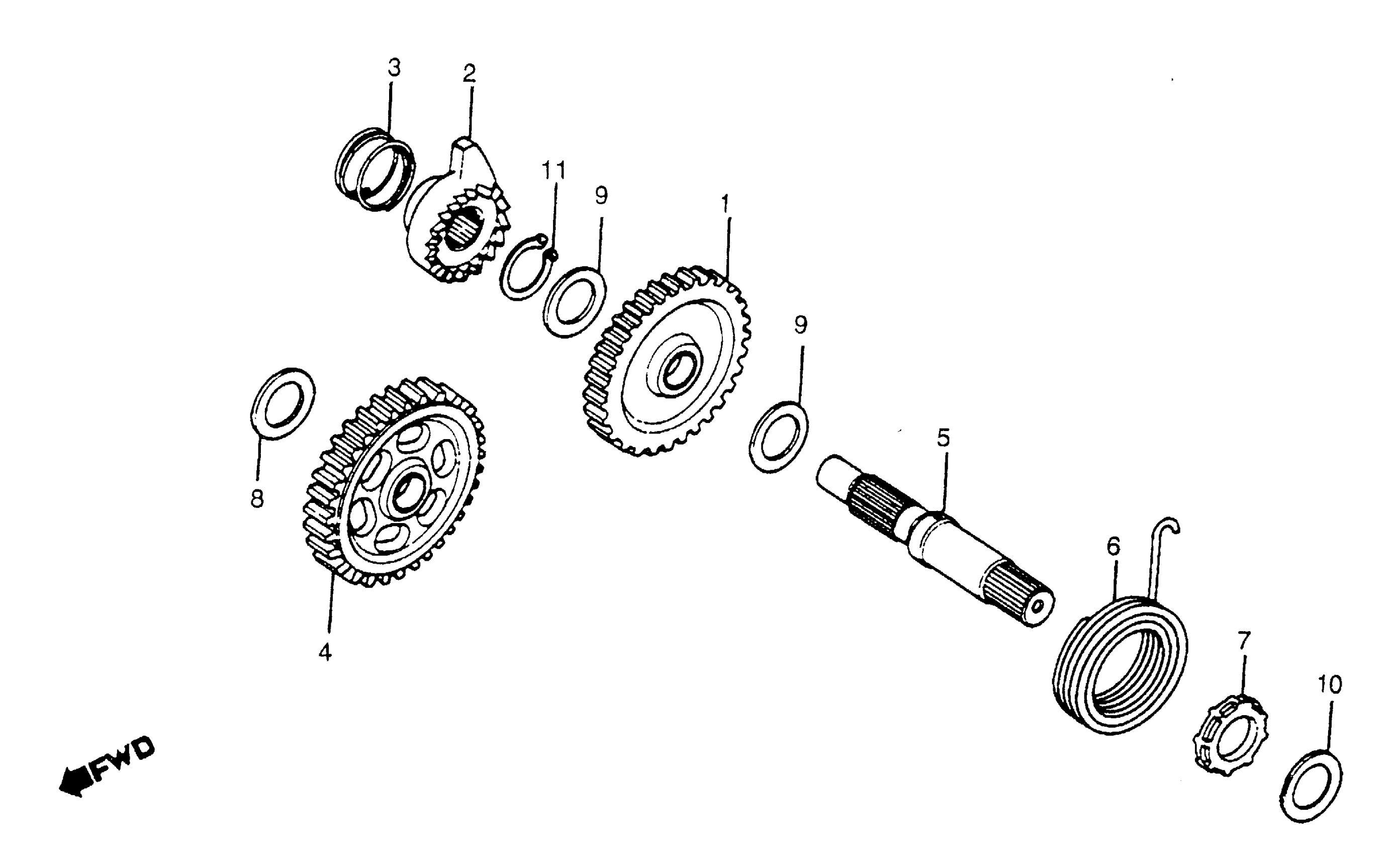

Honda CR480RA (83) MOTORCYCLE, JPN, VIN# JH2PE020-DC200018 TO JH2PE020-DC205352 KICK STARTER SPINDLE Diagram

#

Description

Price

1

PINION, KICK STARTER (27T) (NOT AVAILABLE)

28210-KA4-700

Unavailable

2

RATCHET, KICK STARTER (NOT AVAILABLE)

28221-KA4-700

Unavailable

3

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28223-KA4-000

Unavailable

4

IDLER, KICK (30T) (NOT AVAILABLE)

28230-KA4-700

Unavailable

5

SPINDLE, KICK STARTER (NOT AVAILABLE)

28251-KA5-680

Unavailable

6

SPRING, KICK RETURN (NOT AVAILABLE)

28261-KA4-000

Unavailable

7

COLLAR, KICK SPRING This part replaces 28282-KA4-000.

28282-KA4-505

Unavailable

8

WASHER, THRUST (17MM)

90452-178-000

$4.17

9

WASHER, THRUST (27X20X1.0)

90554-728-940

$6.07

10

WASHER, THRUST (27X20X1.0)

90554-728-940

$6.07

11

CIRCLIP (OUTER) (19MM)

94510-19000

$1.49
