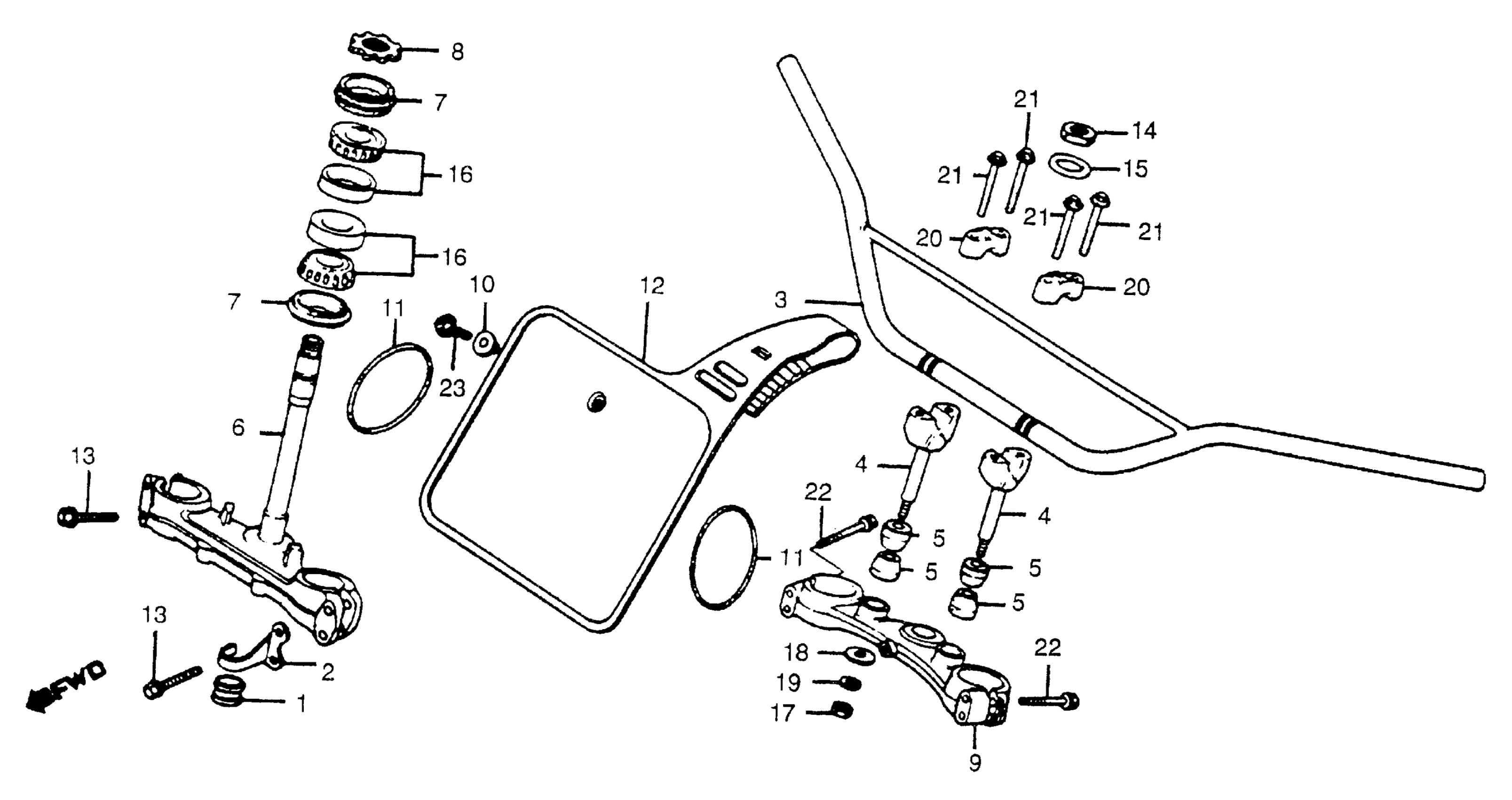

Honda CR480RA (83) MOTORCYCLE, JPN, VIN# JH2PE020-DC200018 TO JH2PE020-DC205352 HANDLEBAR + TOP BRIDGE 83 Diagram

GUIDE, CABLE (INNER)

45466-KA4-000

$6.51

GUIDE, BRAKE CABLE (NOT AVAILABLE)

45468-KA3-710

Unavailable

HANDLEBAR (NOT AVAILABLE)

53100-KA5-770

Unavailable

HOLDER, HANDLEBAR (LOWER) (NOT AVAILABLE)

53132-KA5-000

Unavailable

RUBBER, HANDLEBAR (NOT AVAILABLE)

53133-KA5-000

Unavailable

STEM, STEERING (NOT AVAILABLE)

53200-KA4-710

Unavailable

DUST SEAL, STEERING HEAD (ARAI)

53214-KA4-701

$6.61

THREAD, STEERING HEAD TOP

53229-KA3-710

Unavailable

BRIDGE, FORK TOP (NOT AVAILABLE) This part replaces 53230-KA5-680.

53230-KA5-740

Unavailable

COLLAR, FR. FENDER SETTING

61101-441-000

$4.13

BAND, FR. NUMBER PLATE (NOT AVAILABLE)

61133-430-000

Unavailable

PLATE, FR. NUMBER (TYPE2) (NOT AVAILABLE)

61136-KA3-680ZB

Unavailable

BOLT, FLANGE (8X45) (NA USE ALT:90103-KF0-000) This part replaces 90103-MA0-000.

90103-KB7-000

Unavailable

NUT, STEERING STEM

90304-KA3-710

$15.77

NUT, STEERING STEM

90304-KK0-000

Unavailable

WASHER, STEERING STEM This part replaces 90503-KK0-000.

90503-425-000

$4.21

WASHER, STEERING STEM

90503-425-000

$4.21

WASHER, STEERING STEM This part replaces 90503-428-870.

90503-425-000

$4.21

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$31.00

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$31.00

NUT, HEX. (10MM)

94001-10080-0S

$1.49

WASHER, PLAIN (10MM)

94103-10800

$1.49

WASHER, SPRING (10MM)

94111-10800

$1.49

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

BOLT, FLANGE (8X40) This part replaces 95700-08040-08.

95701-08040-08

$2.28

BOLT, FLANGE (8X40)

95701-08040-08

$2.28

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
