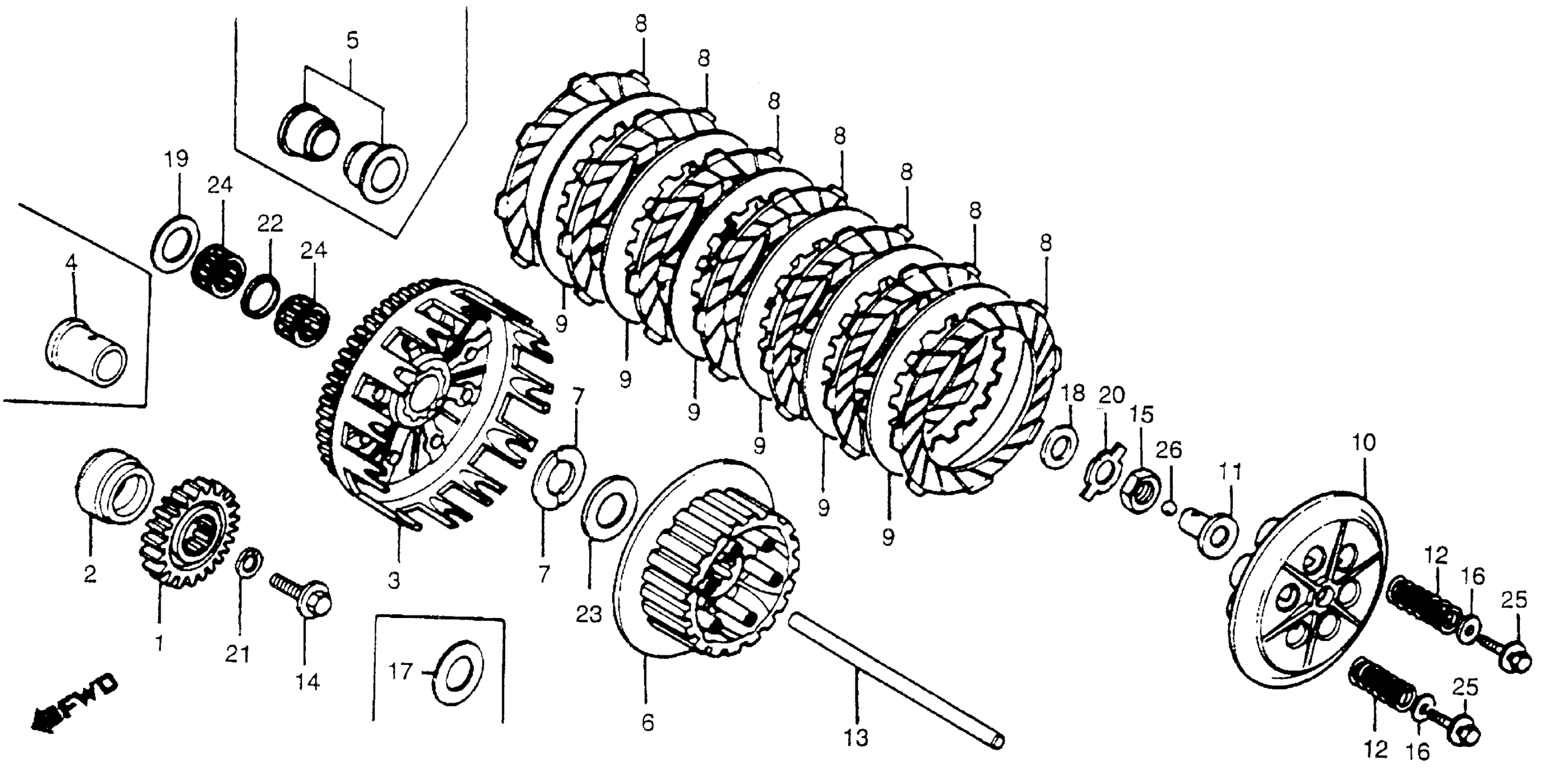

Honda CR480RA (83) MOTORCYCLE, JPN, VIN# JH2PE020-DC200018 TO JH2PE020-DC205352 CLUTCH Diagram

GEAR, PRIMARY DRIVE

13615-KA5-680

Unavailable

COLLAR, DRIVE GEAR (NOT AVAILABLE)

13617-KA4-700

Unavailable

CLUTCH (OUTER) (NOT AVAILABLE)

22100-KA5-680

Unavailable

CENTER, CLUTCH (NOT AVAILABLE)

22120-KA4-710

Unavailable

COTTER, CLUTCH CENTER

22125-KA4-700

Unavailable

DISK, CLUTCH FRICTION This part replaces 22201-KA4-712.

22201-KZ3-730

$21.87

DISK, CLUTCH FRICTION

22201-KZ3-730

$21.87

PLATE B, CLUTCH

22321-KA4-710

$20.57

PLATE, CLUTCH PRESSURE This part replaces 22351-KA4-710.

22351-ML3-910

Unavailable

PLATE, CLUTCH PRESSURE

22351-ML3-910

Unavailable

PIECE, CLUTCH LIFTER

22352-KA4-000

Unavailable

SPRING, CLUTCH

22401-KA5-680

Unavailable

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22851-KA5-680

Unavailable

BOLT, SPECIAL (10X25)

90013-430-000

$6.46

NUT (18MM)

90235-KA4-000

$11.09

WASHER A, THRUST (14MM)

90427-958-000

Unavailable

WASHER, THRUST (18X32)

90456-KA4-000

$4.76

WASHER, THRUST (24X36)

90457-KA4-700

Unavailable

WASHER, LOCK (18MM) This part replaces 90461-KA4-000.

90461-MAC-740

$7.77

WASHER, LOCK (18MM)

90461-MAC-740

$7.77

WASHER, SPRING (10MM)

90481-430-000

$6.19

COLLAR (25.5MM) (NOT AVAILABLE)

90502-KA4-700

Unavailable

RETAINER (44.5MM) (NOT AVAILABLE)

90503-KA4-700

Unavailable

BEARING, NEEDLE (24X28X13) (TOMUSON) This part replaces 91021-430-004.

91021-430-006

Unavailable

BEARING, NEEDLE (24X28X13) (TOMUSON)

91021-430-006

Unavailable

BEARING, NEEDLE (24X28X13) (TOMUSON) This part replaces 91021-430-008.

91021-430-006

Unavailable

BOLT-WASHER (6X20)

93404-06020-08

$1.62

BOLT-WASHER (6X20) This part replaces 93494-06020-08.

93404-06020-08

$1.62

BALL, STEEL (#9) (9/32)

96211-09000

$1.49
