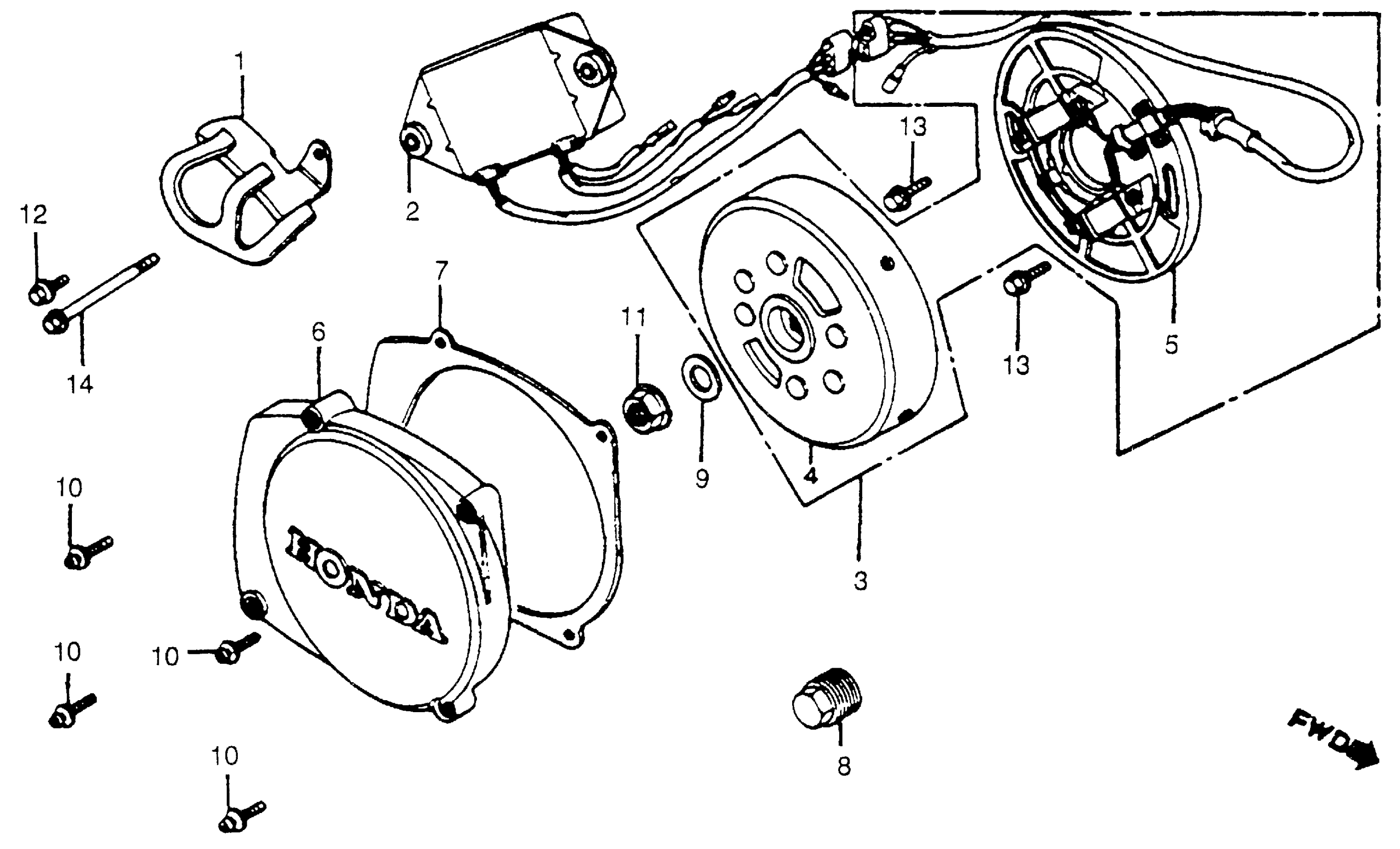

Honda CR480RA (83) MOTORCYCLE, JPN, VIN# JH2PE020-DC200018 TO JH2PE020-DC205352 ALTERNATOR + C.D.I. UNIT 81-83 Diagram

COVER, DRIVE SPROCKET (NOT AVAILABLE)

23810-KA4-700

Unavailable

MODULE, IGNITION CONTROL (CDI) This part replaces 30400-KA5-305.

30400-KA5-682

Unavailable

MODULE, IGNITION CONTROL (CDI) This part replaces 30400-KA5-681.

30400-KA5-682

Unavailable

MODULE, IGNITION CONTROL (CDI)

30400-KA5-682

Unavailable

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-KA5-681

Unavailable

ROTOR

31110-KA5-681

Unavailable

STATOR (NOT AVAILABLE)

31120-KA5-681

Unavailable

COVER, ALTERNATOR (NOT AVAILABLE)

31122-KA4-710

Unavailable

GSKT, MAGNETO COVER This part replaces 31129-KA4-000.

31129-KA4-306

Unavailable

BOLT, REMOVING | (Optional).

07AMC-400A100

$68.10

BOLT, REMOVING | (Optional).

89301-400-000

$69.46

BOLT, REMOVING | (Optional). This part replaces 89302-KA4-810.

89301-400-000

$69.46

WASHER, PLAIN (12MM)

90437-611-000

$4.22

SCREW-WASHER (6X28)

93891-06028-00

$1.49

NUT, FLANGE (12MM)

94050-12000

$1.49

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.95

BOLT, FLANGE (6X70)

96001-06070-00

$1.95
