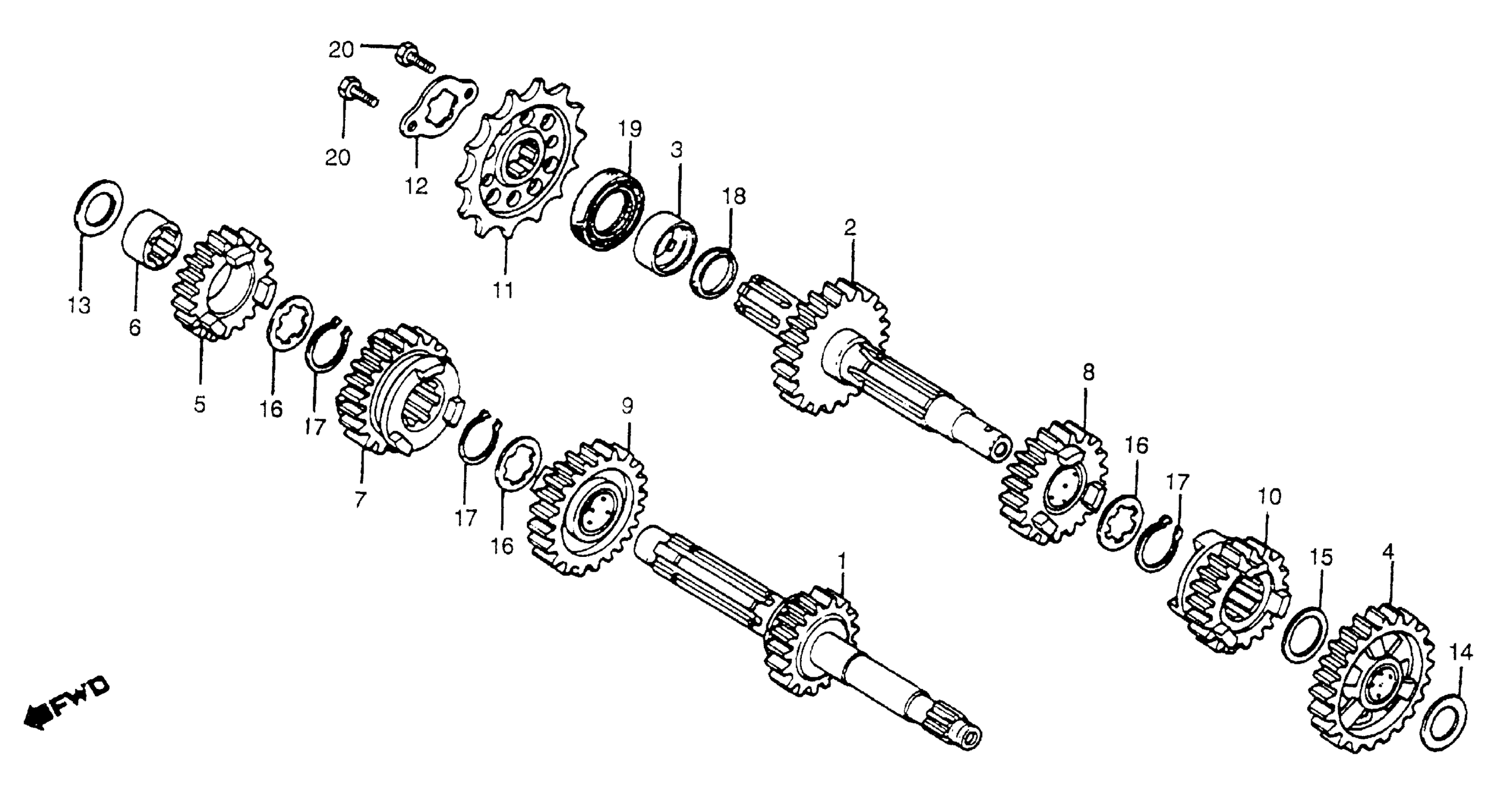

Honda CR480RA (82) MOTORCYCLE, JPN, VIN# JH2PE020-CC100019 TO JH2PE020-CC105878 TRANSMISSION 81-82 Diagram

#

Description
Price

1

MAINSHAFT (16T) (NOT AVAILABLE)

23211-KA5-770

Unavailable

2

COUNTERSHAFT (23T) (NOT AVAILABLE)

23220-KA5-770

Unavailable

3

COLLAR, COUNTERSHAFT (22MM)

23225-430-000

Unavailable

4

GEAR, COUNTERSHAFT LOW (26T) (NOT AVAILABLE)

23410-KA5-770

Unavailable

5

GEAR, MAINSHAFT SECOND (19T) (NOT AVAILABLE)

23421-KA5-770

Unavailable

6

COLLAR, MAINSHAFT SECOND GEAR

23422-KA5-000

Unavailable

7

GEAR, MAINSHAFT THIRD (21T) (NOT AVAILABLE)

23441-KA5-770

Unavailable

8

GEAR, COUNTERSHAFT THIRD (20T) (NOT AVAILABLE)

23450-KA5-770

Unavailable

9

GEAR, MAINSHAFT FOURTH (24T)

23460-KA5-770

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (19T) (NOT AVAILABLE)

23471-KA5-770

Unavailable

11

SPROCKET, DRIVE (14T) This part replaces 23802-KA4-000.

23802-467-000

Unavailable

11

SPROCKET, DRIVE (14T)

23802-467-000

Unavailable

12

PLATE, FIXING

23811-HA5-670

$4.96

12

PLATE, FIXING This part replaces 23811-430-000.

23811-HA5-670

$4.96

13

WASHER, THRUST (20X31.5)

90443-430-000

$7.22

14

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

15

WASHER, THRUST (27X20X1.0)

90554-728-940

$6.07

16

WASHER, SPLINE (25MM)

90463-430-000

$5.89

17

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

18

O-RING (22X1.5)

91201-430-003

$2.94

19

OIL SEAL (28X40X8) (NOK)

91207-ML3-003

$14.08

19

OIL SEAL (28X40X8) (NOK) This part replaces 91207-ML3-004.

91207-ML3-003

$14.08

19

OIL SEAL (28X40X8) (NOK) This part replaces 91207-430-003.

91207-ML3-003

$14.08

19

OIL SEAL (28X40X8) (NOK) This part replaces 91207-430-005.

91207-ML3-003

$14.08

20

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

20

BOLT, HEX. (6X10)

92101-06010-0A

$1.49
