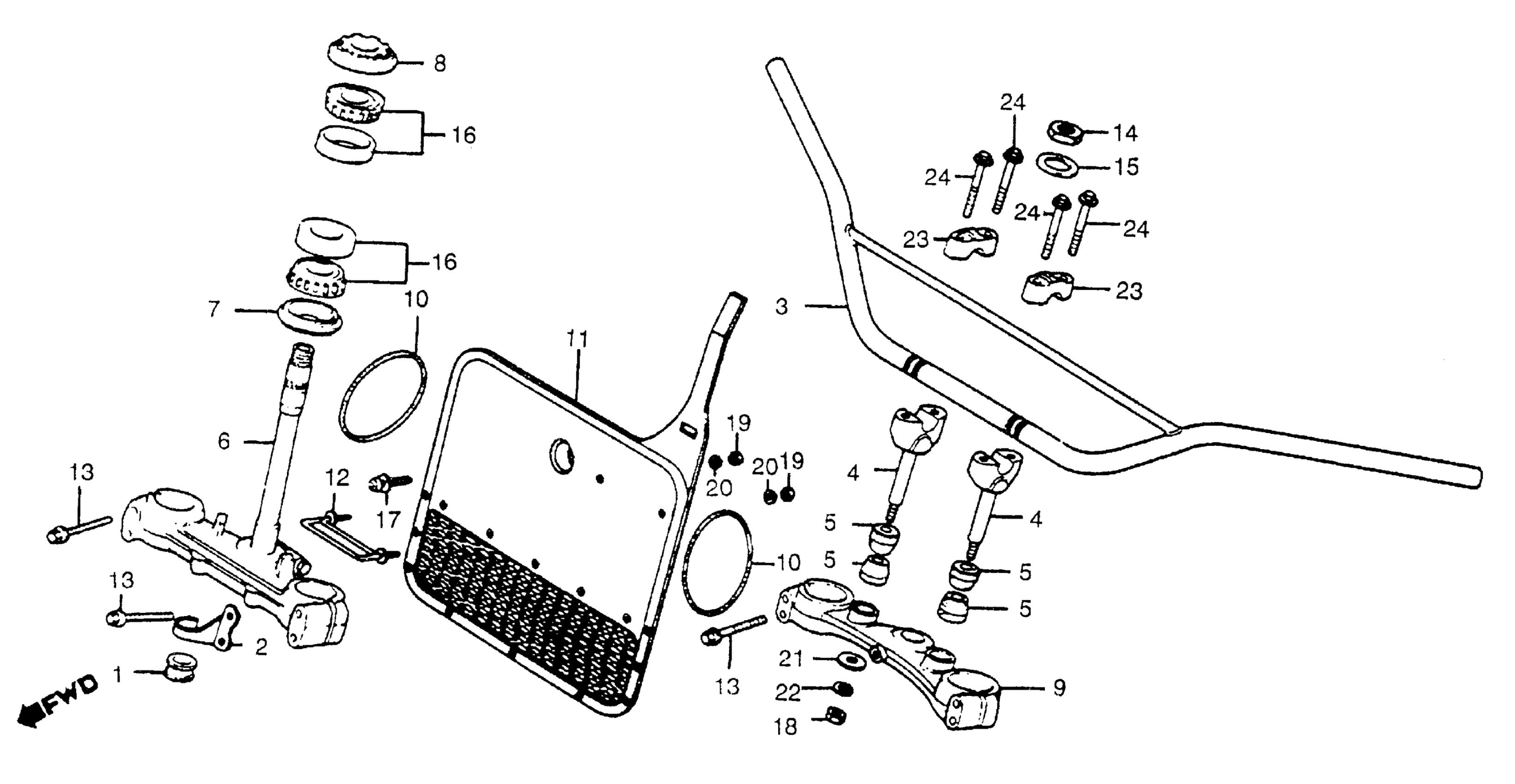

Honda CR480RA (82) MOTORCYCLE, JPN, VIN# JH2PE020-CC100019 TO JH2PE020-CC105878 HANDLEBAR + TOP BRIDGE 82 Diagram

#

Description
Price

1

GUIDE, CABLE (INNER)

45466-KA4-000

$6.51

2

GUIDE, BRAKE CABLE (NOT AVAILABLE)

45468-KA4-700

Unavailable

3

HANDLEBAR (NOT AVAILABLE)

53100-KA5-770

Unavailable

4

HOLDER, HANDLEBAR (LOWER) (NOT AVAILABLE)

53132-KA5-000

Unavailable

5

RUBBER, HANDLEBAR (NOT AVAILABLE)

53133-KA5-000

Unavailable

6

STEM, STEERING

53200-KA4-700

Unavailable

7

DUST SEAL, STEERING HEAD (ARAI)

53214-KA4-701

$6.61

8

THREAD, STEERING HEAD TOP

53220-KA4-700

Unavailable

9

BRIDGE, FORK TOP

53230-KA5-770

Unavailable

10

BAND, FR. NUMBER PLATE (NOT AVAILABLE)

61133-KA5-770

Unavailable

11

PLATE, FR. NUMBER *Y31* (PARAKEET YELLOW) (NOT AVAILABLE)

61136-KA5-772ZB

Unavailable

12

GUIDE, FR. BRAKE CABLE (NOT AVAILABLE)

61141-KA5-771

Unavailable

13

BOLT, FLANGE (8X45) (NA USE ALT:90103-KF0-000) This part replaces 90103-MA0-000.

90103-KB7-000

Unavailable

14

NUT, STEERING STEM

90304-425-000

$9.69

15

WASHER, STEERING STEM This part replaces 90503-KK0-000.

90503-425-000

$4.21

15

WASHER, STEERING STEM

90503-425-000

$4.21

15

WASHER, STEERING STEM This part replaces 90503-428-870.

90503-425-000

$4.21

16

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$31.00

16

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$31.00

17

SCREW-WASHER (6X20)

93891-06020-07

$1.49

18

NUT, HEX. (10MM)

94001-10080-0S

$1.49

19

NUT, HEX. (5MM)

94002-05000-0S

$1.49

20

WASHER, PLAIN (5MM)

94101-05000

$1.49

21

WASHER, PLAIN (10MM)

94103-10800

$1.49

22

WASHER, SPRING (10MM)

94111-10800

$1.49

23

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

24

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

24

BOLT, FLANGE (8X35)

95701-08035-00

$2.30
