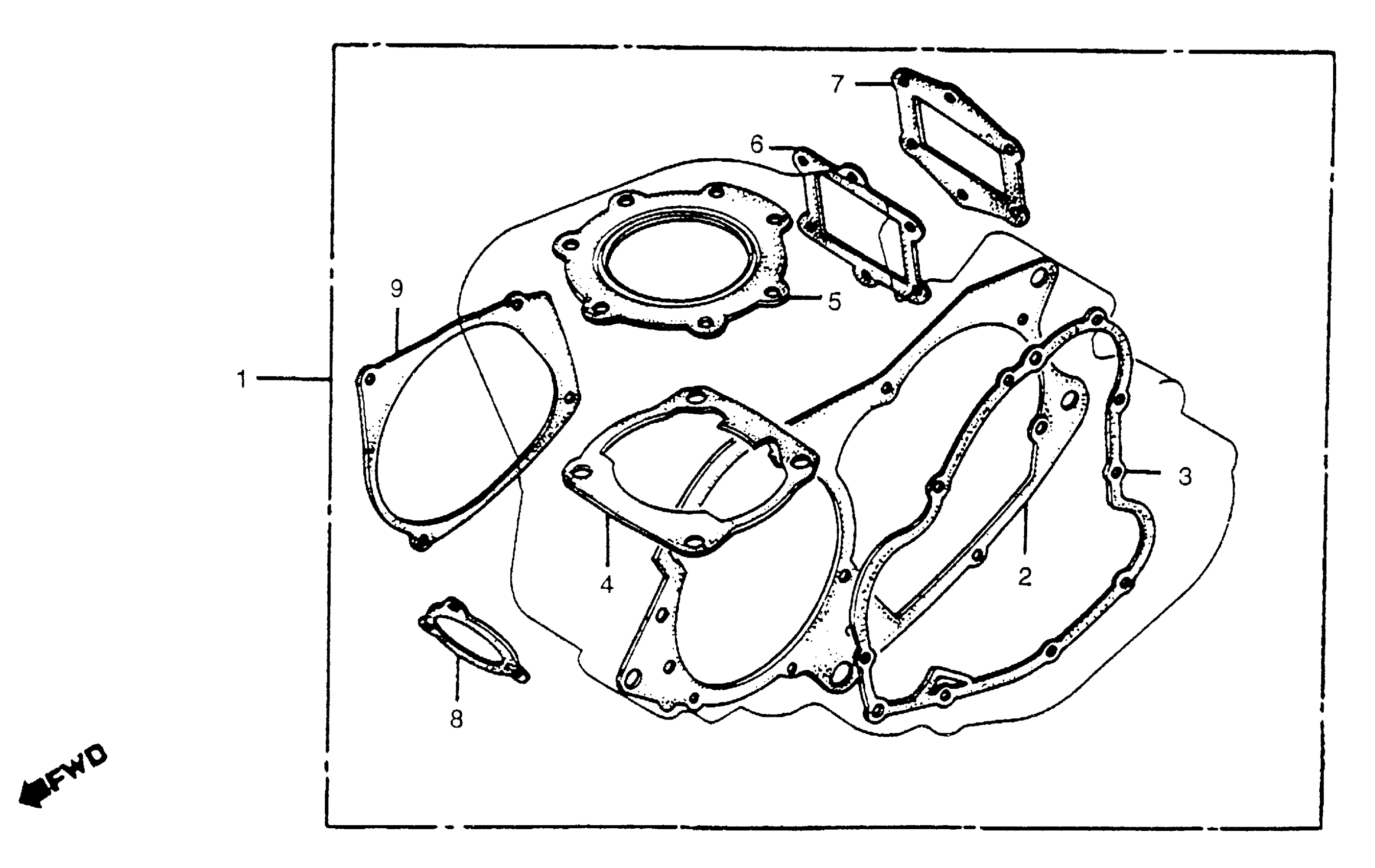

Honda CR480RA (82) MOTORCYCLE, JPN, VIN# JH2PE020-CC100019 TO JH2PE020-CC105878 GASKET KIT Diagram

#

Description

Price

1

GASKET KIT This part replaces 061A0-KA5-770.

061A0-KA5-S70

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-KA5-770.

11191-KA5-309

Unavailable

3

GASKET, L. CRANKCASE COVER This part replaces 11395-KA4-000.

11395-KA4-306

Unavailable

3

GASKET, L. CRANKCASE COVER

11395-KA4-306

Unavailable

4

GASKET, CYLINDER

12191-KA5-308

Unavailable

4

GASKET, CYLINDER This part replaces 12191-KA5-770.

12191-KA5-308

Unavailable

5

GASKET, CYLINDER HEAD

12254-KA5-770

Unavailable

6

GASKET A, REED VALVE

14132-KAE-000

$3.77

6

GASKET A, REED VALVE This part replaces 14132-430-000.

14132-KAE-000

$3.77

7

GASKET B, REED VALVE This part replaces 14133-430-000.

14133-430-306

$7.12

7

GASKET B, REED VALVE

14133-430-306

$7.12

8

GASKET, EX. PIPE This part replaces 18291-430-000.

18291-430-306

$4.58

8

GASKET, EX. PIPE

18291-430-306

$4.58

9

GSKT, MAGNETO COVER This part replaces 31129-KA4-000.

31129-KA4-306

Unavailable
